Dormont Blue Hose 3/4-Inch x 72-Inch Moveable Gas Connector Deluxe Kit with Safety Quik and Swivel MAX

SKU: 1675KITCFS72
GTIN: 662447034705
$484.15
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

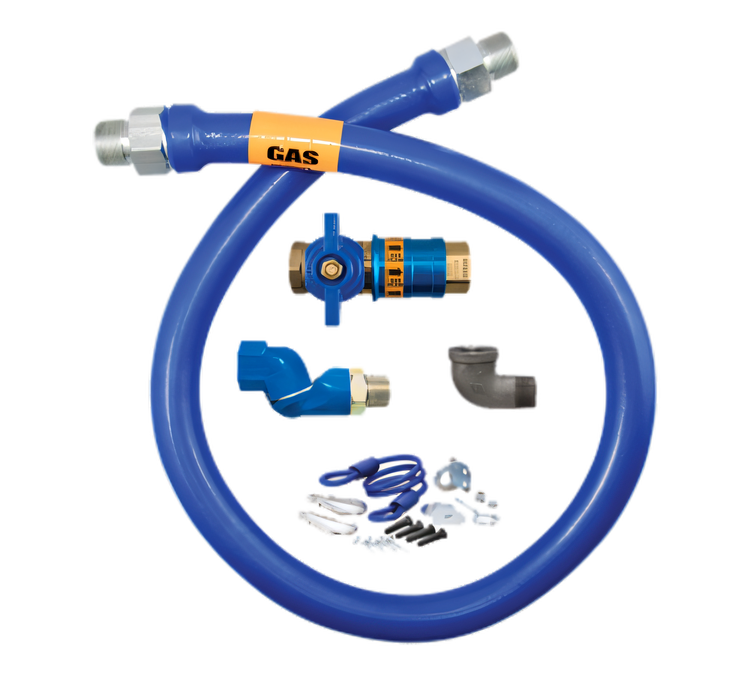

Dormont Blue Hose 3/4-Inch x 72-Inch Moveable Gas Connector Deluxe Kit with Safety Quik and Swivel MAX

Blue antimicrobial PVC-coated stainless steel hose with restraining cable and hardware

This deluxe moveable gas connector kit combines flexible 360° movement, quick-disconnect safety, and an included restraining device for safer commercial kitchen installations.

  • 3/4-inch inside diameter and 72-inch length for moveable commercial gas equipment.
  • Swivel MAX fitting provides 360° rotational movement to help reduce stress on the connector.
  • Safety Quik quick-disconnect valve adds one-handed disconnect and safety shutoff protection.
  • Stainless steel tubing and braid are covered with blue antimicrobial PVC for durability and easy identification.
  • Includes restraining cable and mounting hardware for moveable equipment installations.
  • 130,000 BTU/hr minimum flow capacity with a limited lifetime warranty.

Product Weight:

7.43 lb

360° Swivel MAX Movement

Multi-plane rotational fitting helps reduce connector stress and allows equipment to sit closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect design provides quick disconnect functionality with a built-in protection valve.

Thermal Shutoff Protection

Safety valve shuts off gas flow within a temperature range of 250°F to 300°F (121°C to 149°C).

304 Stainless Steel Hose Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid supports commercial moveable equipment use.

Blue Antimicrobial PVC Coating

Blue coating helps identify the hose, resists flames, and melts at 350°F (177°C).

Included Restraining Device

PVC-coated steel multi-strand cable with mounting hardware is included for moveable gas equipment installations.

High Flow Capacity

72-inch, 3/4-inch size is rated for 130,000 BTU/hr minimum natural gas flow capacity.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Length 72 Inches
Gas Connection Size 3/4 Inch
BTU 130,000 BTU/hr
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 7.43 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The deluxe kit includes the Dormont Blue Hose, Swivel MAX, Safety Quik quick-disconnect valve, restraining device, and mounting hardware.
It uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braid and a blue antimicrobial PVC coating.
It provides quick-disconnect functionality and a safety shutoff feature that helps prevent gas flow when the appliance is disconnected.
The 3/4-inch, 72-inch size is rated at 130,000 BTU/hr minimum flow capacity.
Yes. This kit includes a restraining device, and the documentation states that a restraining device is required for all moveable gas equipment.
Dormont states a limited lifetime warranty, guaranteed for the life of the original appliance to which it is connected.
