Dormont Blue Hose Deluxe Moveable Gas Connector Kit with Safety Quik Quick-Disconnect Valve and Restraining Device, 3/4 Inch I.D. x 36 Inch

SKU: 1675KITCF2S36
GTIN: 662447034200
$470.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

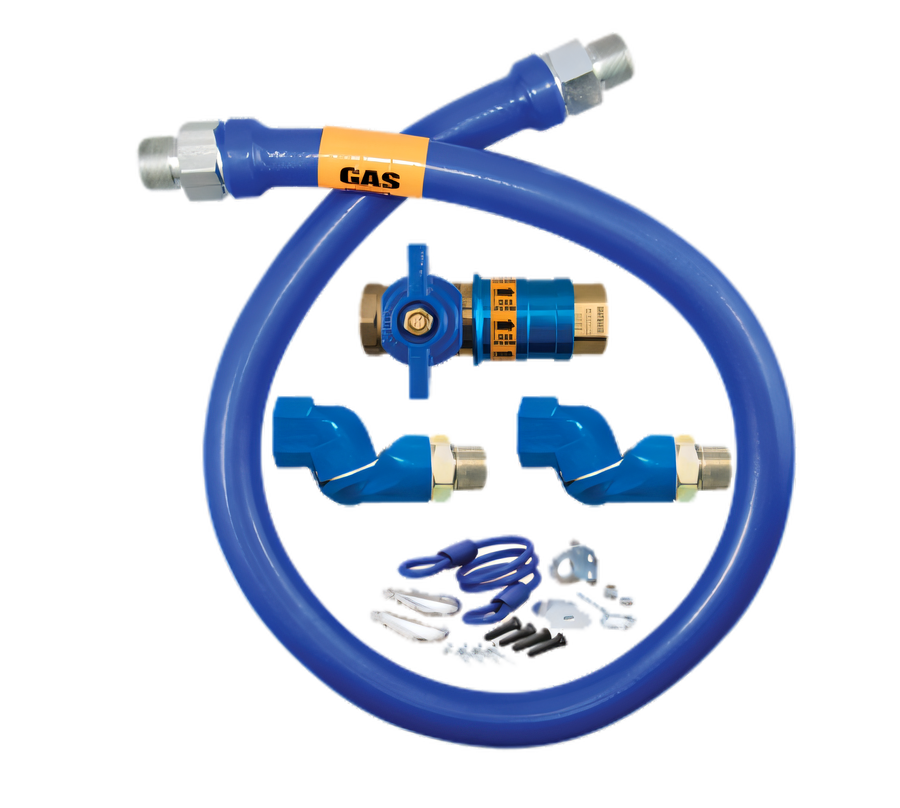

Dormont Blue Hose Deluxe Moveable Gas Connector Kit with Safety Quik Quick-Disconnect Valve and Restraining Device, 3/4 Inch I.D. x 36 Inch

Double Swivel MAX fittings; blue antimicrobial PVC-coated stainless steel hose

Built for moveable commercial gas equipment, this deluxe kit combines a 36-inch stainless steel hose, quick-disconnect safety shutoff, swivel fittings, and a restraining device for safer, more flexible installation.

  • 3/4 inch inside diameter and 36 inch length for moveable gas appliance connections.
  • Stainless steel hose with multi-strand braid and blue antimicrobial PVC coating.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and safety shutoff protection.
  • Double Swivel MAX fittings provide 360° movement and help reduce connector stress.
  • Includes restraining cable and mounting hardware; rated for 193,000 BTU/hr natural gas flow.
  • Limited lifetime warranty; indoor use only.

Product Weight:

5.91 lb

3/4 Inch I.D. x 36 Inch Hose

Specific deluxe kit size for this model.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Blue coating helps resist microbes, melts at 350°F, and will not hold a flame.

Double Swivel MAX Fittings

360° rotational end fittings at both ends reduce connector stress and allow appliances to sit closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass quick-disconnect valve with full-port brass ball valve and thermal shutoff at 250°F to 300°F.

Restraining Device Included

PVC-coated steel multi-strand cable with mounting hardware is included for moveable gas equipment.

High Flow Capacity

Rated for 193,000 BTU/hr natural gas flow at a 0.5 inch WC pressure drop.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 3/4 Inch
Length 36 Inches
Material 304 Stainless Steel
Finish PVC Coated
Color Blue
BTU 193,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose, Double Swivel MAX, Safety Quik, and a restraining device with mounting hardware.
It has a 3/4 inch inside diameter and is 36 inches long.
193,000 BTU/hr natural gas at a 0.5 inch WC pressure drop.
It uses a flat-face push-to-connect quick-disconnect valve with a full-port brass ball valve and thermal shutoff.
Yes. The document states a restraining device is required for all moveable gas equipment, and this kit includes one.
The document says it is for indoor use only, not for temperatures below 32°F, with a maximum operating pressure of 1/2 psi.
