Dormont Blue Hose 3/4 Inch ID x 24 Inch Moveable Gas Connector Deluxe Kit

SKU: 1675KITCF2S24PS
$524.71
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

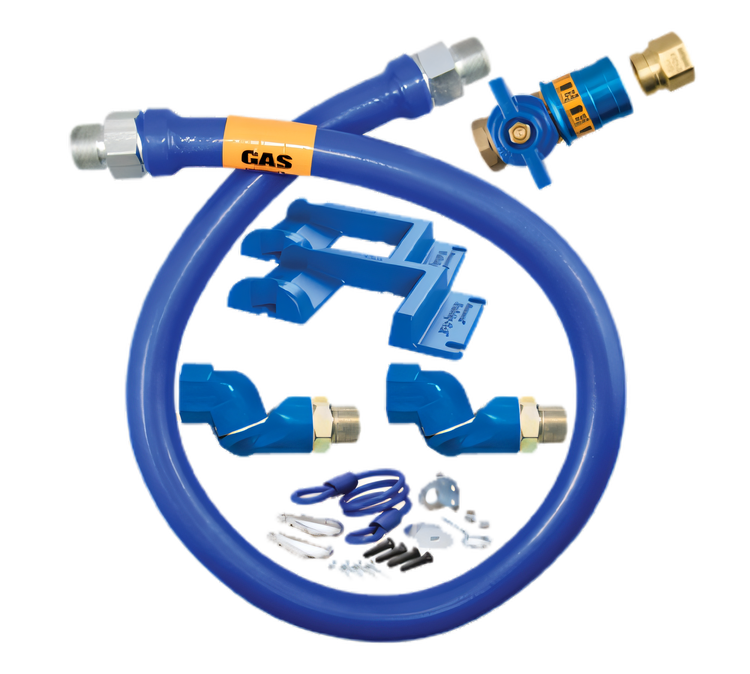

Dormont Blue Hose 3/4 Inch ID x 24 Inch Moveable Gas Connector Deluxe Kit

Double Swivel MAX, Safety Quik, Safety Set, and restraining cable included

Built for moveable commercial appliances, this 24-inch deluxe connector kit combines 360° swivel flexibility, quick-disconnect safety, and an included restraining system.

  • 3/4 inch inside diameter and 24 inch length for moveable commercial gas equipment.
  • Double Swivel MAX fittings provide 360° rotational movement and help reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed connection and thermal shutoff protection.
  • Stainless steel braid with blue antimicrobial PVC coating improves durability and flame resistance.
  • Includes a restraining system with mounting hardware for caster-mounted moveable appliances.
  • 205,000 BTU/hr natural gas flow capacity for this size and length.
  • Limited lifetime warranty and manufactured in the USA.

Product Weight:

6.63 lb

Double Swivel MAX Fittings

360° rotational end fittings help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass valve provides one-handed disconnect safety and thermal shutoff protection.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel braid delivers commercial-grade durability.

Blue Antimicrobial PVC Coating

Blue PVC coating helps protect the hose, will not hold a flame, and is designed to melt at 350°F.

Restraining System Included

PVC-coated steel multi-strand restraining cable and mounting hardware help secure moveable gas equipment.

High Natural Gas Flow Capacity

3/4 inch ID by 24 inch length is rated for 205,000 BTU/hr natural gas flow capacity.

Warranty and Origin

Backed by a limited lifetime warranty and manufactured in the USA.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 3/4 Inch
Length 24 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Gas Type Natural Gas
BTU 205,000 BTU/hr
Temperature Range 250°F to 300°F
Country of Origin USA
Shipping Weight 6.63 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose assembly, Double Swivel MAX fittings, Safety Quik quick-disconnect valve, Safety Set mounting hardware, and a coiled restraining cable.
It has a 3/4 inch inside diameter and is 24 inches long.
The 3/4 inch by 24 inch assembly is rated for 205,000 BTU/hr natural gas flow capacity.
It provides quick-disconnect, one-handed connection functionality and shuts off gas flow within a 250°F to 300°F thermal range.
Yes. The kit includes a restraining device and mounting hardware for moveable gas equipment.
It carries a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
