Dormont Blue Hose 3/4 Inch ID x 24 Inch Moveable Gas Connector Deluxe Kit with Safety Quik and Double Swivel MAX

Blue Antimicrobial PVC-Coated 304 Stainless Steel, Includes Restraining Cable

Designed for moveable commercial gas equipment, this connector kit combines 360° swivel flexibility, quick-disconnect safety shutoff protection, and a restraining cable for safer appliance placement.

  • 3/4 inch inside diameter and 24 inch length for moveable gas appliance connections.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends to reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect capability with automatic shutoff protection.
  • Annealed stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating.
  • Includes a PVC-coated restraining cable and mounting hardware for moveable equipment applications.
  • Rated for a 205,000 BTU/hr minimum flow capacity on natural gas applications.

Product Weight:

5.32 lb

Double Swivel MAX Ends

360° rotational end fittings help position appliances closer to the wall while reducing stress on the connector.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve design provides quick disconnect functionality with a brass protection valve and thermal shutoff.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Protective blue PVC coating helps visually identify the hose and will not hold a flame.

Restraining Device Included

PVC-coated steel multi-strand restraining cable and mounting hardware help secure moveable gas equipment.

High Flow Capacity

Rated for a minimum flow capacity of 205,000 BTU/hr at the specified natural gas pressure-drop conditions.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 3/4 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 205,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

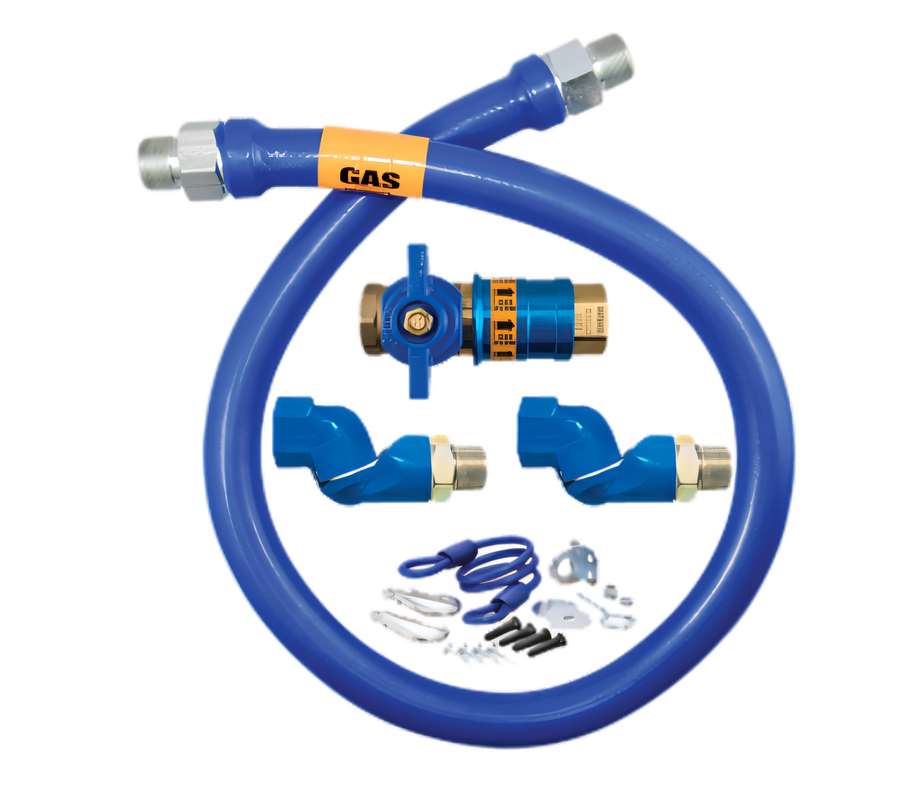

The kit includes the Dormont Blue Hose, Double Swivel MAX fittings, Safety Quik quick-disconnect valve, and a coiled restraining cable with hardware.
This model has a 3/4 inch inside diameter and is 24 inches long.
It is rated at a minimum flow capacity of 205,000 BTU/hr under the natural gas test conditions shown in the documentation.
It helps prevent gas flow from being turned on while the appliance is disconnected and includes a thermal shutoff feature.
Yes. The documentation states that a restraining device is required for all moveable gas equipment, and this kit includes one.
Yes. The documentation notes that it is for indoor use only and not for use in temperatures below 32°F.
