Dormont Manufacturing

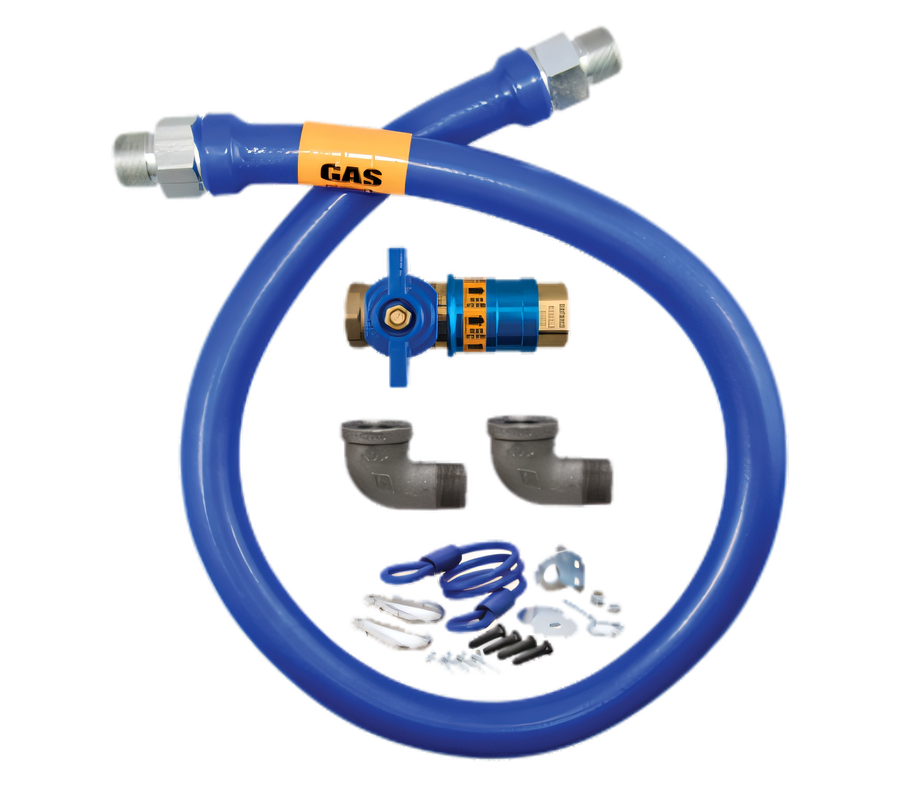

Dormont Blue Hose Safety Quik Deluxe Moveable Gas Connector Kit, 3/4-Inch I.D., 24-Inch

SKU: 1675KITCF24
GTIN: 662447055083
$261.11
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose Safety Quik Deluxe Moveable Gas Connector Kit, 3/4-Inch I.D., 24-Inch

Includes quick-disconnect valve, restraining cable, and 90° elbows

A safer, ready-to-install gas connection kit for moveable commercial equipment, combining quick-disconnect protection with a restraining device and durable coated stainless steel hose.

  • 3/4-inch I.D. hose with 24-inch length for moveable gas equipment
  • Safety Quik valve helps prevent accidental gas flow and unsafe disconnects
  • Includes a PVC-coated restraining cable with mounting hardware and two 90° elbows
  • 304 stainless steel hose construction with stainless braid and blue antimicrobial PVC coating
  • Rated for 232,000 BTU/hr minimum natural gas flow capacity
  • Backed by a limited lifetime warranty

Product Weight:

4.8 lb

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect valve with brass body helps prevent gas flow when the appliance is disconnected and blocks disconnecting while gas is flowing.

304 Stainless Steel Hose

Annealed 304 stainless steel tubing with multi-strand stainless steel braid for flexible durability.

Blue Antimicrobial PVC Coating

Protective coating adds a blue finish and is designed not to hold a flame.

Stress Guard Rotational End Fittings

360° rotational fittings at both ends help reduce strain on the hose and appliance connection.

Included Restraining Device

PVC-coated steel multi-strand cable and mounting hardware help secure moveable equipment.

Two 90° Elbows Included

Elbows are included to support installation and appliance positioning.

High Flow Capacity

24-inch, 3/4-inch I.D. hose provides 232,000 BTU/hr minimum natural gas flow capacity.

Thermal Shutoff Protection

Valve shuts off gas flow within a 250°F to 300°F temperature range.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 3/4 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
BTU 232,000 BTU/hr Minimum Flow Capacity
Gas Type Natural Gas
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, a Safety Quik quick-disconnect valve, a restraining device with hardware, and two 90° elbows.
It prevents users from turning on the gas while the appliance is disconnected and prevents hose disconnection while gas is flowing.
It is designed for commercial moveable gas equipment that may be mounted on casters or otherwise subject to movement.
The 3/4-inch I.D., 24-inch model is rated for 232,000 BTU/hr minimum natural gas flow capacity.
The cut sheet says indoor use only, not for temperatures below 32°F (0°C), with a maximum operating pressure of 1/2 psi.
It includes a limited lifetime warranty for the life of the original appliance to which it is connected.
