Dormont Blue Hose Moveable Gas Connector Kit with Excess Flow Valve (EFV), 3/4 Inch I.D. x 48 Inch

SKU: 1675KIT48EFV
GTIN: 662447300985
$389.12
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose Moveable Gas Connector Kit with Excess Flow Valve (EFV), 3/4 Inch I.D. x 48 Inch

Blue antimicrobial PVC-coated stainless steel braid; includes SnapFast quick disconnect, full port shutoff valve, elbows, and restraining cable.

This safety-focused gas connector kit helps reduce leak risk if the connector is disconnected or ruptured while giving you a complete, ready-to-install connection set.

  • Excess flow valve helps instantly limit gas flow if the connector is disconnected or ruptured.
  • Bidirectional installation provides consistent trip rate in either direction.
  • Blue antimicrobial PVC-coated stainless steel braid adds durability and easy identification.

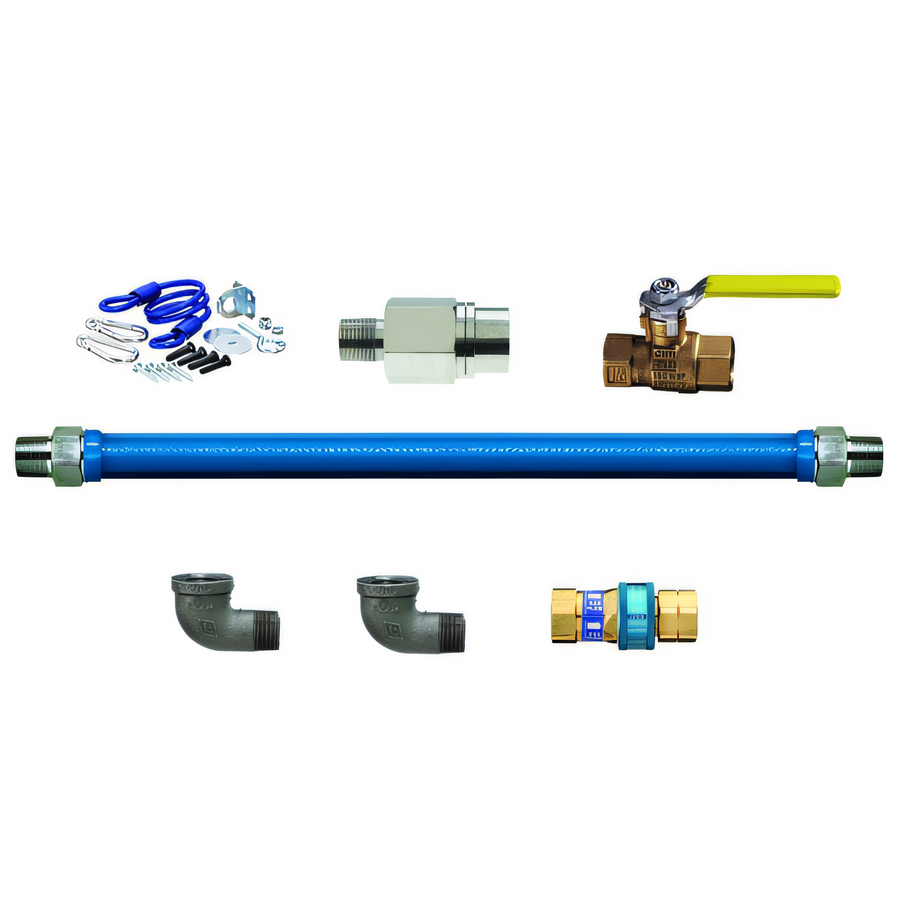

  • Includes full port shutoff valve, SnapFast quick disconnect, 90° elbows, and a coiled restraining cable with hardware.
  • Rated for a minimum flow capacity of 180,000 BTU/hr.
  • Reliable performance up to 350°F.
  • Backed by a limited lifetime warranty.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.21 lb

Excess Flow Valve Safety Technology

Helps protect against gas leaks by limiting gas flow if the connector is disconnected or ruptured.

Bidirectional Installation

Can be installed in either direction with a consistent trip rate.

Stainless Steel Braid with Blue Antimicrobial PVC Coating

The connector is covered with stainless steel braid and coated with blue antimicrobial PVC for added durability and visibility.

Complete Kit

Includes an excess flow valve, full port shutoff valve, SnapFast quick disconnect, 90° elbows, and a coiled restraining cable with hardware.

High Flow Capacity

Provides a minimum flow capacity of 180,000 BTU/hr.

High Temperature Performance

Designed for reliable performance up to 350°F.

Limited Lifetime Warranty

Product is sold with a limited lifetime warranty.

Type Gas Connector Kit
Style Moveable
Material Plastic Coated Stainless Steel
Color Blue
Finish Antimicrobial PVC
Inside Diameter 3/4 Inch
Length 48 Inches
BTU 180,000 BTU/hr Minimum Flow Capacity
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 7.21 Pounds

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It instantly limits gas flow if the connector is disconnected or ruptured, helping reduce leak risk.
Yes. The kit supports bidirectional installation with a consistent trip rate.
The kit includes an excess flow valve, full port shutoff valve, SnapFast quick disconnect, 90° elbows, and a coiled restraining cable with hardware.
This model is 48 inches long with a 3/4 inch inside diameter.
The kit has a minimum flow capacity of 180,000 BTU/hr.
The product is covered by a limited lifetime warranty.
