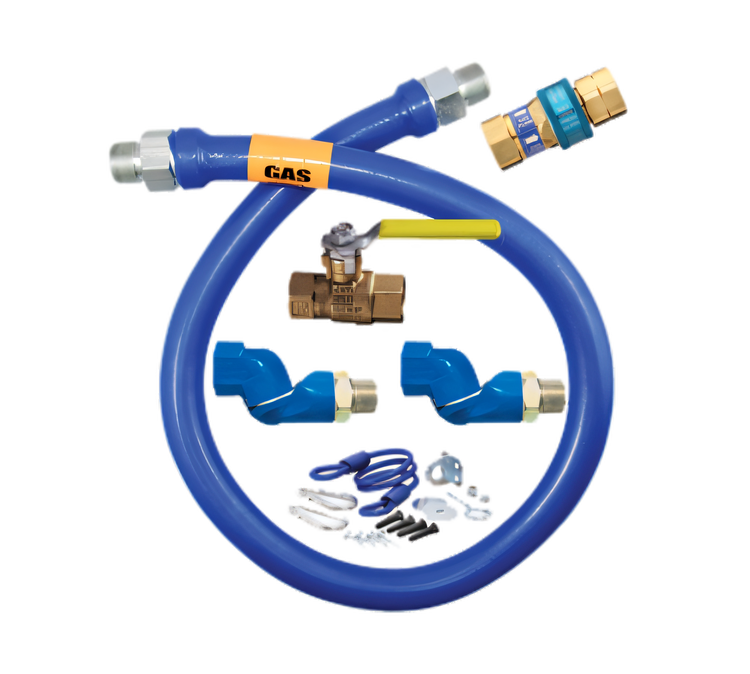

Dormont Blue Hose 48-Inch 3/4-Inch ID Double Swivel MAX Moveable Gas Connector Kit

With SnapFast QD, full port valve, and restraining cable

Built for movable commercial cooking equipment, this 48-inch Blue Hose kit combines antimicrobial protection, dual Swivel MAX flexibility, and a restraining cable for safer gas connections.

  • 48-inch moveable gas connector kit for caster-mounted commercial cooking equipment
  • 3/4-inch inside diameter with 160,000 BTU/hr minimum flow capacity
  • Includes SnapFast quick-disconnect, dual Swivel MAX fittings, full port valve, and coiled restraining cable
  • Blue antimicrobial PVC coating and stainless steel braid help protect the hose as equipment moves
  • Stress Guard technology reduces stress on hose ends for easier installation and longer service life
  • Backed by a limited lifetime warranty as a connector

Product Weight:

6.37 lb

Designed for Caster-Mounted Equipment

Specifically engineered for commercial cooking equipment that is moved regularly for service, positioning, or cleaning.

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose and helps make installation easier.

304 Stainless Steel Tubing

Flexible corrugated stainless steel construction provides durable gas connection performance.

Stainless Steel Braid

Tight-weave braid helps prevent corrugations from stretching as equipment is moved.

Antimicrobial PVC Coating

Blue protective coating helps inhibit the growth of bacteria, mold, and mildew on the connector.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off when internal temperature exceeds 350°F (177°C).

Dual Swivel MAX Fittings

Two Swivel MAX fittings reduce stress on the connector and allow closer wall positioning for added aisle space.

Coiled Restraining Cable

Helps prevent strain from reaching the connector and is supplied 1 foot shorter than the gas connector.

Full Port Valve Included

Includes a full port gas valve as part of the kit for gas shutoff and flow control.

Type Moveable Gas Connector Kit
Style Double Swivel MAX
Gas Connection Size 3/4 Inch ID
Length 48 Inches
Restraining Device With Restraining Cable
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
BTU 160,000 BTU/hr Minimum Flow Capacity
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose connector, a SnapFast quick-disconnect, two Swivel MAX fittings, a full port valve, and a coiled restraining cable with hardware.
This kit has a 3/4-inch inside diameter and a 48-inch length.
The kit is rated for a 160,000 BTU/hr minimum flow capacity.
Yes. It has a blue antimicrobial PVC coating over stainless steel construction and braid.
It includes a limited lifetime warranty as a connector, guaranteed for the life of the original appliance to which it is connected.
