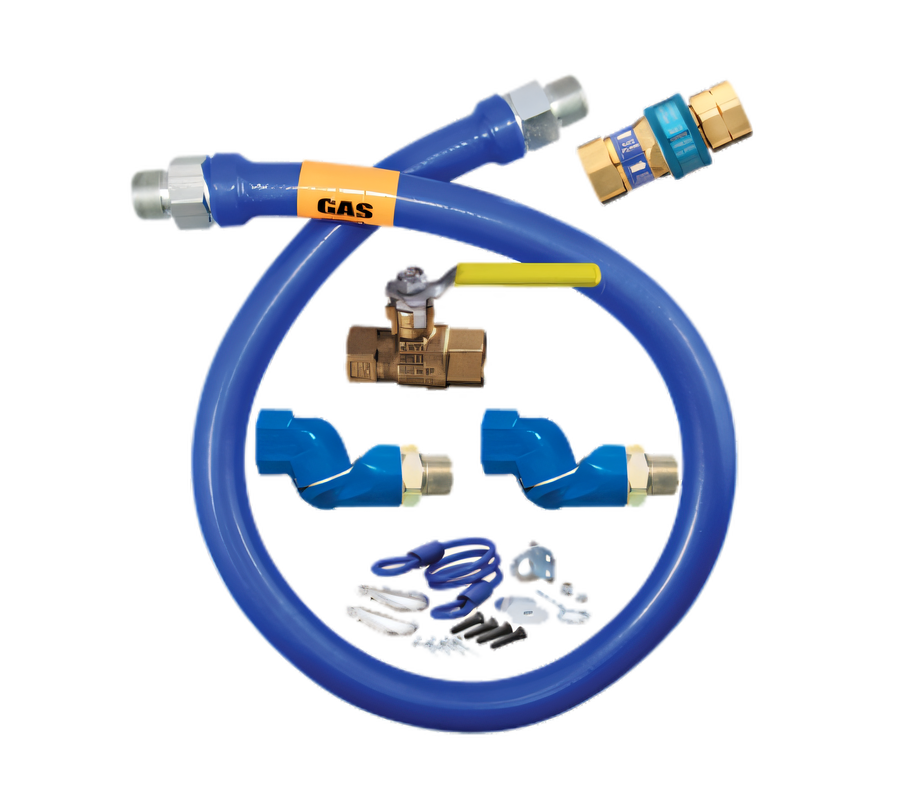

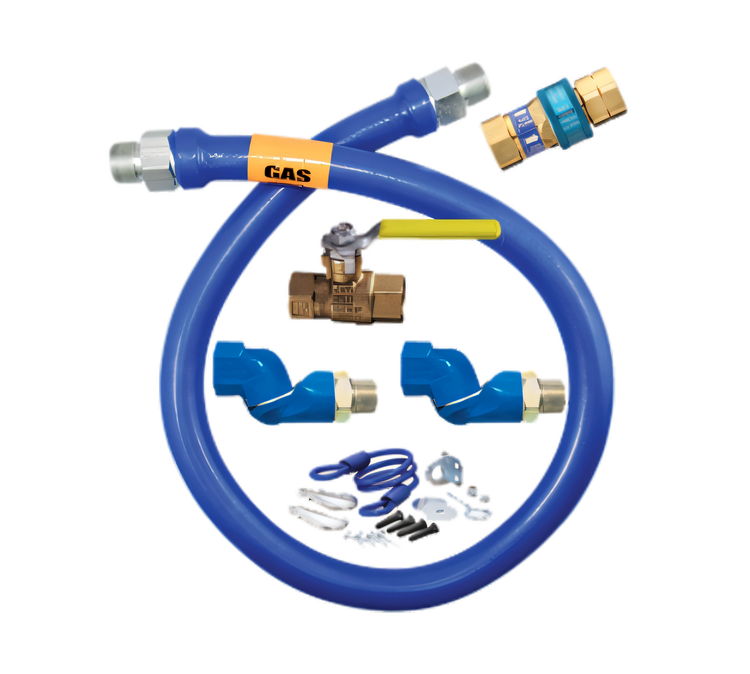

Dormont Blue Hose 3/4-Inch Inside Diameter x 24-Inch Moveable Gas Connector Deluxe Kit

SKU: 1675KIT2S24
GTIN: 662447023945
$421.02
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4-Inch Inside Diameter x 24-Inch Moveable Gas Connector Deluxe Kit

Double Swivel MAX fittings, SnapFast quick-disconnect, full port valve, and restraining cable

Built for moveable commercial gas equipment, this deluxe kit combines flexible stainless steel construction with quick-disconnect convenience and built-in stress relief for safer installation.

  • 3/4" inside diameter x 24" long moveable gas connector kit for commercial kitchen equipment.
  • Includes Double Swivel MAX fittings, SnapFast one-handed quick-disconnect, full port valve, and restraining device.
  • Annealed stainless steel tubing with stainless steel wire braid and blue antimicrobial PVC coating.
  • 205,000 BTU/hr minimum natural gas flow capacity at 0.5 in. W.C. pressure drop.
  • Thermal shut-off quick-disconnect closes gas flow above 350°F (177°C).
  • Limited lifetime warranty to the original appliance.

Product Weight:

5.09 lb

Double Swivel MAX Fittings

360° rotational end fittings help reduce stress on the connector and allow the appliance to sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect design with a brass body and aluminum collar for easier appliance service.

Thermal Shut-Off Safety

Quick-disconnect automatically shuts off gas when internal temperatures exceed 350°F (177°C).

Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating resists flame propagation and helps protect the connector in commercial kitchens.

Included Restraining Device

PVC-coated multi-strand steel cable and mounting hardware help prevent strain on the gas connector.

Full Port Valve Included

Deluxe kit includes a full port brass valve for convenient shutoff.

High Flow Capacity

Rated for a minimum natural gas flow capacity of 205,000 BTU/hr at 0.5 inch W.C. pressure drop.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 3/4 Inch
Length 24 Inches
BTU 205,000 BTU/hr
Material Stainless Steel
Color Blue
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose connector, Double Swivel MAX fittings, SnapFast quick-disconnect, a restraining device with hardware, and a full port valve.
This model has a 3/4" inside diameter and is 24" long.
It has a minimum natural gas flow capacity of 205,000 BTU/hr at a 0.5 inch W.C. pressure drop.
Yes. The SnapFast quick-disconnect automatically shuts off gas when internal temperatures exceed 350°F (177°C).
Yes. The documentation states that a restraining device is required for all moveable gas equipment, and this kit includes one.
Dormont provides a limited lifetime warranty for the life of the original appliance to which the connector is attached.
