Dormont Manufacturing

Dormont Blue Hose 3/4 Inch I.D. x 48 Inch Food Truck Gas Connector Kit with Full Port Valve and Elbows

SKU: 1675BPV48BXFT
GTIN: 662447002261
$232.56
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

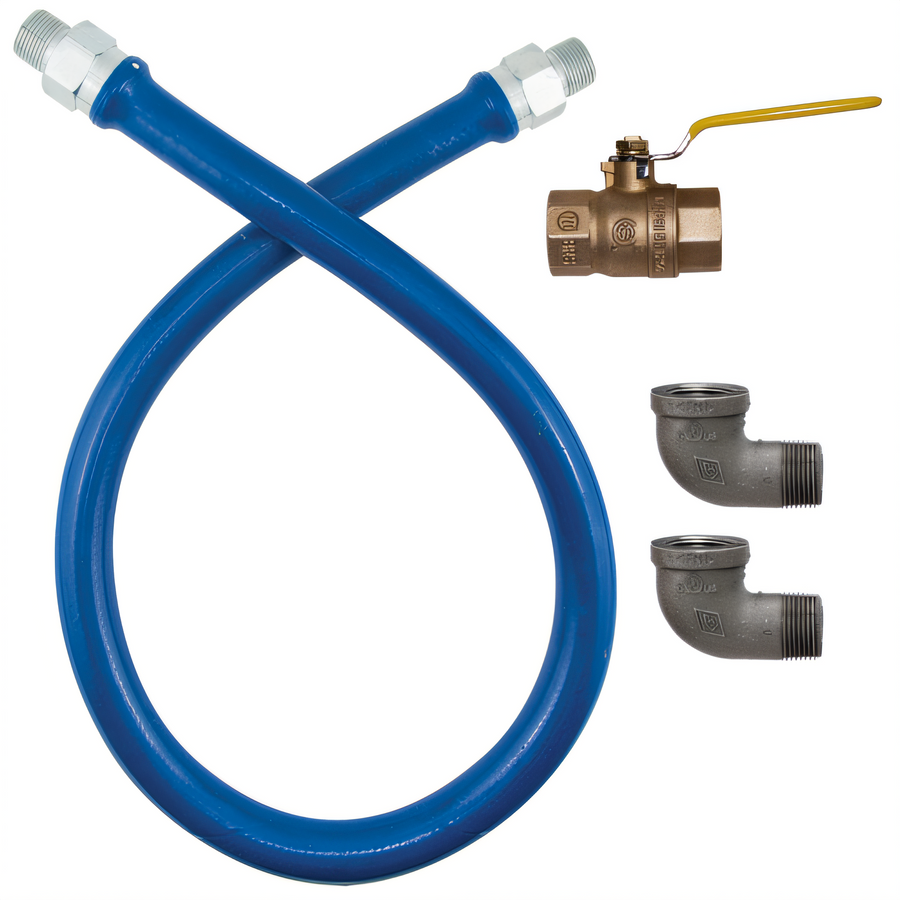

Dormont Blue Hose 3/4 Inch I.D. x 48 Inch Food Truck Gas Connector Kit with Full Port Valve and Elbows

Moveable-Grade, 304 Stainless Steel, Blue Antimicrobial PVC Coating

Built for food trucks and other moveable equipment, this 3/4-inch x 48-inch gas connector kit combines stainless steel durability, antimicrobial coating, and high-flow performance in one ready-to-install package.

  • Designed for food trucks and other moveable or caster-mounted gas equipment.
  • 304 stainless steel tubing with stainless steel wire braid for durable flex performance.
  • Blue antimicrobial and UV PVC coating helps protect the hose and resists flame.
  • Includes (2) 3/4-inch 90-degree elbows and a full port valve for installation convenience.
  • Rated for 225,000 BTU/hr flow capacity.
  • Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

4.98 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing provides durable, flexible gas connector performance.

Stainless Steel Braid

Multi-strand stainless steel wire braiding adds strength and protection to the hose assembly.

Blue Antimicrobial PVC Coating

The blue antimicrobial and UV PVC coating helps protect the hose, will not hold a flame, and melts at 350°F.

Stress Guard Rotation Technology

360-degree rotational end fittings at both ends help reduce strain on the connector.

Food Truck Grade Design

Built for moveable equipment and caster-mounted applications commonly found in food trucks.

Included Components

Includes (2) 3/4-inch 90-degree elbows and a full port valve.

High Flow Capacity

Rated for up to 225,000 BTU/hr flow capacity.

Operating Range

Operating temperature range of -10°F to 350°F with a maximum operating pressure of 1/2 psi.

Type Gas Connector Kit
Style Food Truck Grade
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial UV PVC Coating
Inside Diameter 3/4 Inch
Length 48 Inches
BTU 225,000 BTU/HR
Temperature Range -10°F to 350°F
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 4.98 Pounds

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The kit includes the gas connector plus (2) 3/4-inch 90-degree elbows and a full port valve.
Yes. It is designed for moveable equipment and fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.
It uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding and a blue antimicrobial UV PVC coating.
The 3/4-inch I.D. x 48-inch version is rated for 225,000 BTU/hr.
The hose is rated for an operating temperature range of -10°F to 350°F and a maximum operating pressure of 1/2 psi.
