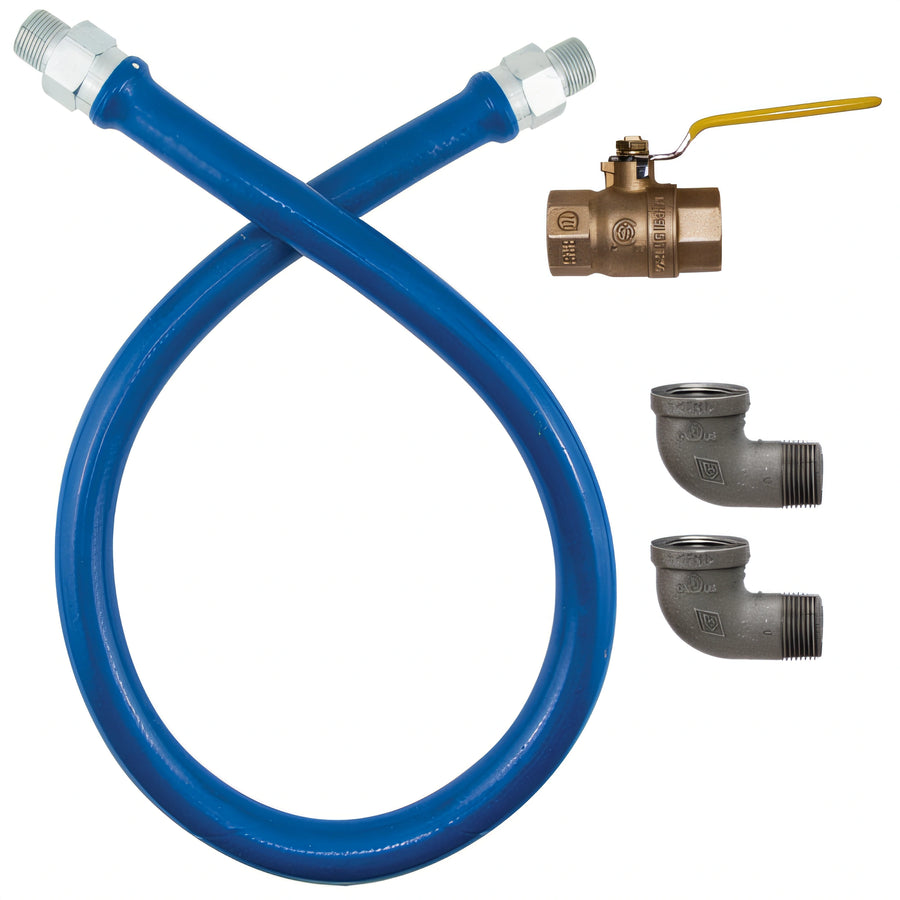

Dormont Blue Hose 3/4-Inch Inside Diameter 36-Inch Food Truck Gas Connector Kit with Full Port Valve and 90-Degree Elbows

304 Stainless Steel, Antimicrobial Blue PVC Coating, 256,000 BTU/hr

Built for food trucks and other moveable equipment, this high-flow gas connector kit combines durable stainless steel construction, stress-reducing rotation, and a protective antimicrobial coating.

  • Designed for moveable and caster-mounted equipment that is regularly moved for cleaning and repair
  • 36-inch length with 3/4-inch inside diameter for high-flow gas service
  • 304 stainless steel corrugated tubing with tight-weave stainless steel braid
  • Blue antimicrobial and UV PVC coating helps protect the hose and will not hold a flame
  • Stress Guard 360° rotational end fittings help reduce strain at both ends of the hose
  • Includes two 3/4-inch 90-degree elbows and a full port valve
  • Rated for 256,000 BTU/hr natural gas flow capacity and -10°F to 350°F operating temperature

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

4.46 lb

Moveable-Grade Design

Built for moveable equipment and caster-mounted appliances that need a flexible gas connection during cleaning and service.

304 Stainless Steel Tubing

Annealed 304 stainless steel corrugated tubing provides durable, flexible gas connector performance.

Stainless Steel Braid

Multi-strand stainless steel wire braiding adds strength and protection to the hose body.

Blue Antimicrobial PVC Coating

The blue UV PVC coating helps protect the connector, will not hold a flame, and melts at 350°F (177°C).

Stress Guard Rotational Ends

360° rotational end fittings at both ends help reduce stress on the hose during installation and use.

Included Installation Parts

Includes two 3/4-inch 90-degree elbows and a full port valve.

High Flow Capacity

Rated at 256,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.

Food Truck Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Operating Range

Operating temperature range is -10°F to 350°F (-23°C to 177°C), with a maximum operating pressure of 1/2 psi.

Type Gas Connector Kit
Style Food Truck Grade
Length 36 Inches
Inside Diameter 3/4 Inch
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial PVC Coating
BTU 256,000 BTU/hr
Temperature Range -10°F to 350°F
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is 36 inches long with a 3/4-inch inside diameter.
It includes two 3/4-inch 90-degree elbows and a full port valve.
The hose uses annealed 304 stainless steel tubing with multi-strand stainless steel braid and a blue antimicrobial UV PVC coating.
It is rated for 256,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.
The operating temperature range is -10°F to 350°F (-23°C to 177°C), and the maximum operating pressure is 1/2 psi.
Yes. When used on caster-mounted equipment, the connector should be installed with a restraining device to prevent strain from being transmitted to the connector.
