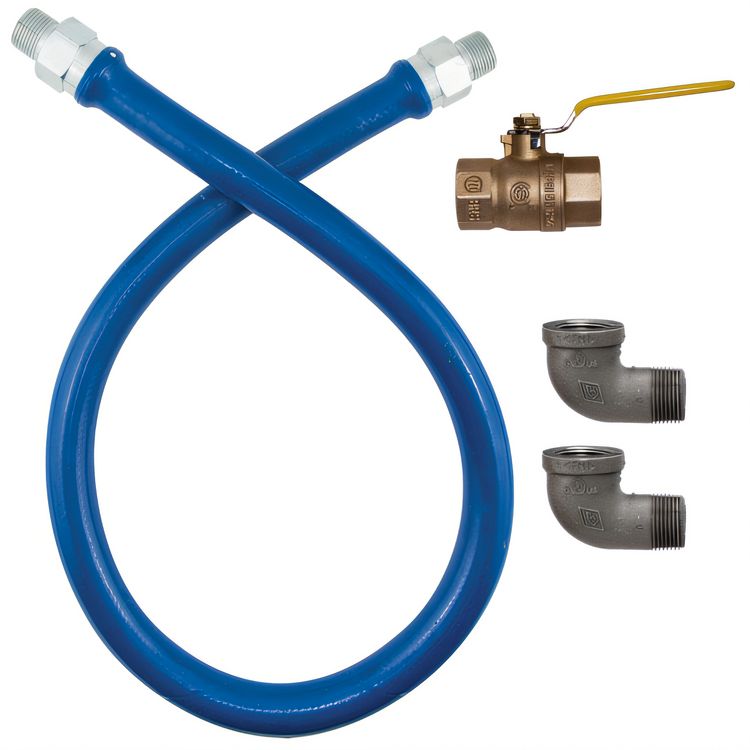

Dormont Blue Hose Food Truck Gas Connector Kit, 3/4" I.D. x 24", Braided Stainless Steel with Valve and Elbows

Moveable-Grade, Blue Antimicrobial UV PVC-Coated, 291,000 BTU/hr

Built for food truck and other moveable gas appliances, this 3/4-inch x 24-inch connector kit combines flexible stainless construction with flame-resistant blue PVC coating and included installation hardware.

  • Designed for moveable and caster-mounted gas appliances that are regularly moved for cleaning and repair.
  • 3/4" I.D. x 24" hose with 291,000 BTU/hr flow capacity on natural gas.
  • Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.
  • Blue antimicrobial UV PVC coating resists flame and is rated for operating temperatures up to 350°F.
  • Stress Guard rotation technology helps reduce strain at both ends of the hose.
  • Kit includes (2) 3/4" 90° elbows, (2) shoulder nipples, and a full port valve.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

4.32 lb

Moveable-Grade Construction

Designed for gas utilization equipment mounted on casters or otherwise subject to regular movement.

Blue Antimicrobial UV PVC Coating

Protective coating melts at 350°F and will not hold a flame.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce hose stress.

Stainless Steel Hose Construction

Made with annealed 304 stainless steel tubing and multi-strand stainless steel wire braiding.

Carbon Steel End Fittings

End fittings are carbon steel with zinc trivalent chromate finish.

Food Truck Kit Components

Includes (2) 3/4" 90° elbows, (2) shoulder nipples, and a full port valve.

Wide Operating Range

Rated for operating temperatures from -10°F to 350°F (-23°C to 177°C).

Food Truck Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Type Food Truck Gas Connector Kit
Style Braided, Moveable-Grade
Material 304 Stainless Steel
Color Blue
Finish PVC-Coated
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Length 24 Inches
BTU 291,000 BTU/hr
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 4.32 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for moveable equipment and caster-mounted equipment that is moved regularly for cleaning and repair.
The kit includes (2) 3/4" 90° elbows, (2) shoulder nipples, and a full port valve.
The operating temperature range is -10°F to 350°F (-23°C to 177°C).
This 24" 3/4" model is rated for 291,000 BTU/hr on natural gas at a 0.5 inch W.C. pressure drop.
It uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding and a blue antimicrobial UV PVC coating.
It fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections and meets NSF/ANSI 169 and ANSI Z21.69/CSA 6.16 requirements.
