Dormont Manufacturing

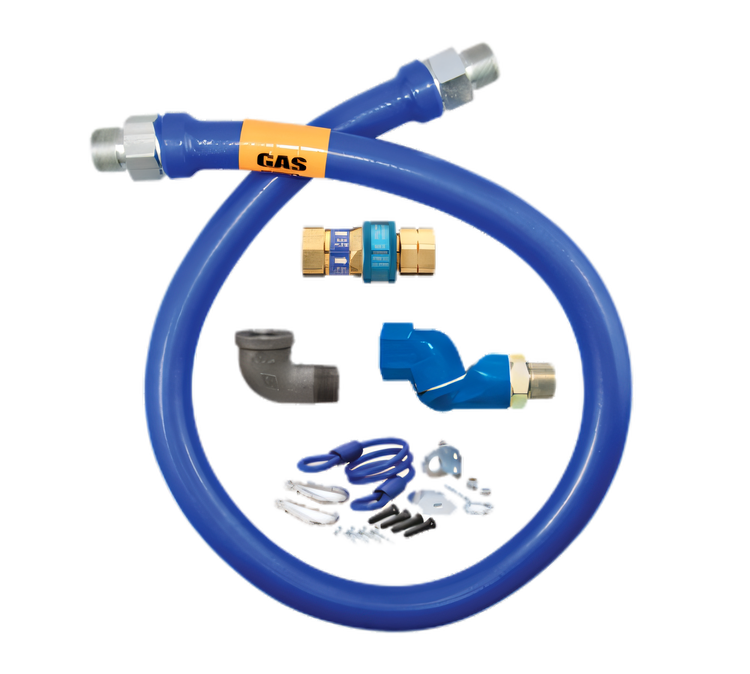

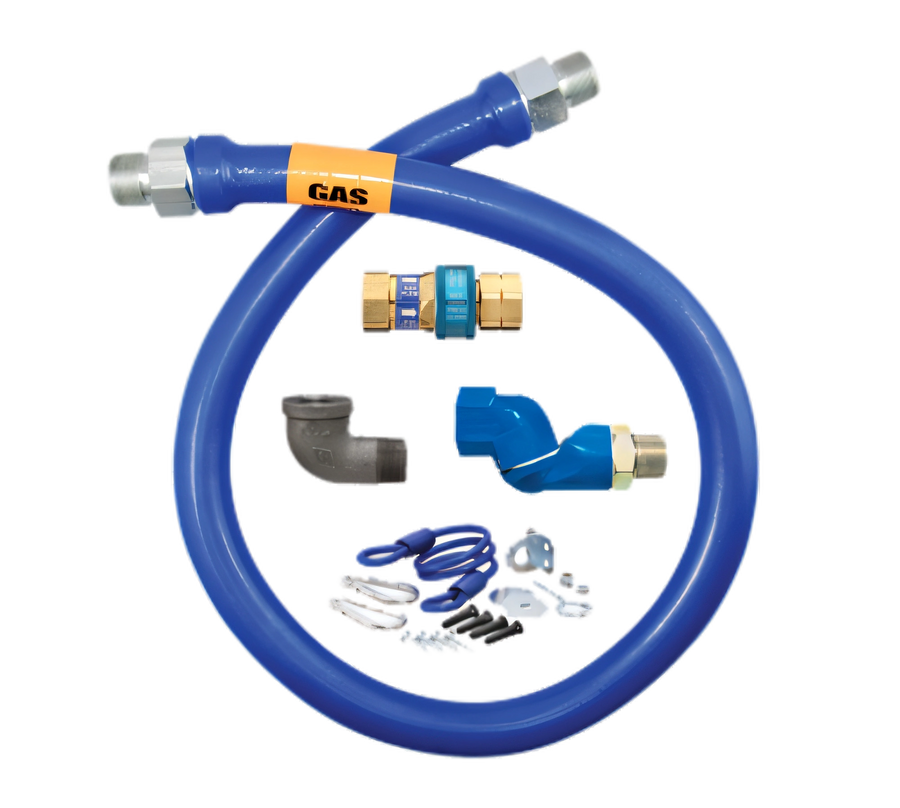

Dormont Blue Hose 3/4-Inch x 72-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Swivel MAX

SKU: 1675BPQSR72
GTIN: 662447049396
$435.46
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4-Inch x 72-Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Swivel MAX

Blue Antimicrobial PVC Coating, Stainless Steel Braid, with Restraining Cable

Built for moveable commercial gas equipment, this 72-inch Dormont connector combines a one-handed quick disconnect, 360° swivel movement, and a restraining cable for safer, more flexible appliance positioning.

  • 3/4-inch inside diameter and 72-inch length for moveable gas appliance connections.
  • SnapFast one-handed quick-disconnect includes thermal shut-off at 350°F.
  • Swivel MAX 360° end fitting reduces connector stress and improves installation flexibility.
  • Stainless steel tubing and braid are covered with blue antimicrobial PVC for added protection.
  • Includes a coiled restraining cable with mounting hardware for moveable equipment installations.
  • Backed by a limited lifetime warranty for the life of the original appliance.

Product Weight:

6.51 lb

Moveable Gas Connector Hose Assembly

72-inch long assembly with a 3/4-inch inside diameter for commercial moveable gas equipment.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off that automatically stops gas flow when internal temperature exceeds 350°F (177°C).

Swivel MAX Rotation

360° rotational end fitting helps reduce stress on the connector and allows the appliance to sit closer to the wall.

Stainless Steel Construction

Constructed with annealed 304 stainless steel tubing and multi-strand stainless steel wire braid.

Blue Antimicrobial PVC Coating

Blue protective coating over the hose that melts at 350°F (177°C) and will not hold a flame.

Restraining Cable Included

Coiled PVC-coated steel restraining device with mounting hardware is included for moveable gas equipment applications.

High Flow Capacity

Rated for a minimum flow capacity of 130,000 BTU/hr at 0.5 inch W.C. pressure drop.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Gas Connector Hose Assembly
Style Moveable
Material Stainless Steel
Color Blue
Inside Diameter 3/4 Inch
Length 72 Inches
BTU 130,000 BTU/hr
Shipping Weight 6.51 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 72 inches long.
Yes. The assembly includes a coiled restraining cable with mounting hardware.
It provides one-handed quick-disconnect operation and thermal shut-off above 350°F (177°C).
Swivel MAX provides 360° rotational movement to reduce stress on the connector and improve appliance positioning.
The 3/4-inch, 72-inch configuration has a minimum flow capacity of 130,000 BTU/hr.
Yes. The cutsheet states that it is for indoor use only and should not be used in temperatures below 32°F (0°C).
