Dormont Manufacturing

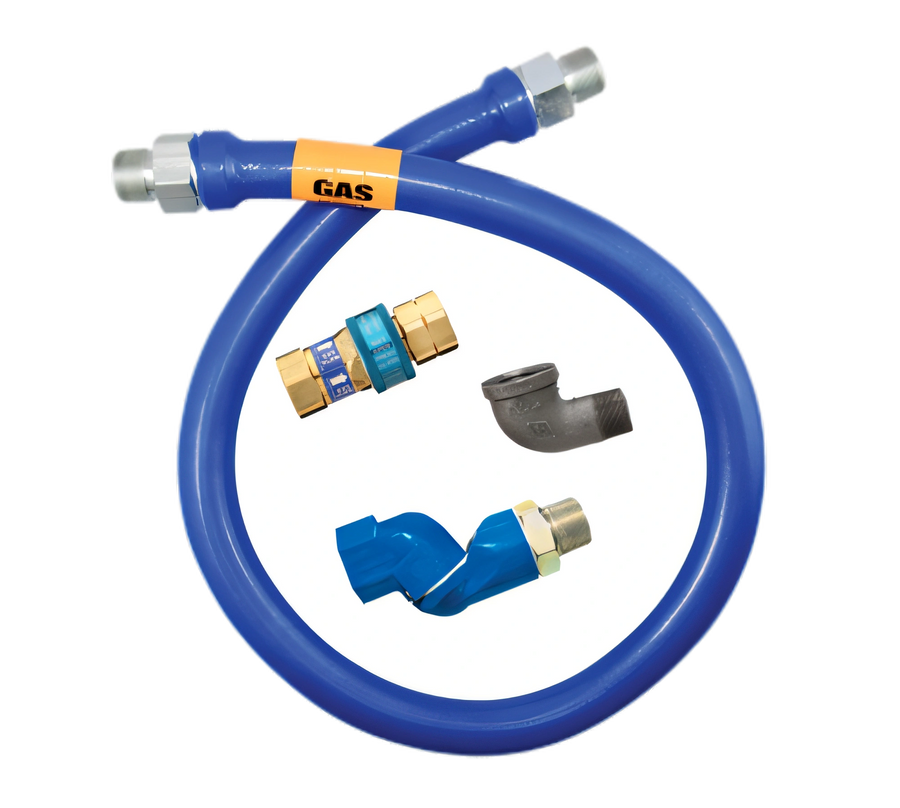

Dormont Blue Hose 3/4-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with SnapFast QD and Swivel MAX

SKU: 1675BPQS72
GTIN: 662447015742
$409.32
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with SnapFast QD and Swivel MAX

Blue antimicrobial PVC coating, stainless steel braid, and 130,000 BTU/hr flow capacity

Built for moveable commercial gas equipment, this 72-inch hose assembly combines a one-handed quick disconnect, 360° swivel protection, and antimicrobial blue coating for safer, longer-lasting performance.

  • 3/4-inch inside diameter and 72-inch length for commercial moveable gas appliance connections
  • Annealed stainless steel tubing with multi-strand stainless steel braid for durable service
  • Blue antimicrobial PVC coating adds protection and helps improve kitchen safety
  • Swivel MAX 360° rotation reduces connector stress and helps appliances sit closer to the wall
  • SnapFast one-handed quick disconnect includes thermal shut-off at 350°F
  • 130,000 BTU/hr minimum flow capacity for natural gas applications at 0.5 inch WC pressure drop
  • Includes a street elbow; a restraining device is required for moveable gas equipment

Product Weight:

5.55 lb

Swivel MAX 360° Rotation

Multi-plane end fitting provides 360° movement to reduce stress on the connector and increase usable aisle space.

SnapFast One-Handed Quick-Disconnect

Quick-disconnect fitting allows fast, one-handed separation and automatically shuts off gas when internal temperatures exceed 350°F.

304 Stainless Steel Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid provides strength and flexibility.

Blue Antimicrobial PVC Coating

Protective blue coating adds antimicrobial performance and will not hold a flame; it melts at 350°F.

Stress Guard Rotation Technology

Rotational end fittings at both ends help reduce wear and extend connector life.

High Flow Capacity

Rated at 130,000 BTU/hr minimum flow capacity for natural gas applications.

Street Elbow Included

The hose assembly includes the Blue Hose, Swivel MAX, SnapFast, and a street elbow.

Type Gas Connector Hose Assembly
Style Moveable
Material Stainless Steel
Color Blue
Finish Antimicrobial PVC Coated
Inside Diameter 3/4 Inch
Length 72 Inches
BTU 130,000 BTU/hr
Country of Origin USA
Shipping Weight 5.55 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is 3/4-inch inside diameter and 72 inches long.
The SnapFast quick-disconnect is one-handed and automatically shuts off gas when internal temperatures exceed 350°F.
The hose assembly has a minimum flow capacity of 130,000 BTU/hr for natural gas applications.
It uses annealed stainless steel tubing, multi-strand stainless steel wire braid, and a blue antimicrobial PVC coating.
The assembly includes the Blue Hose, Swivel MAX, SnapFast, and a street elbow.
Yes. A restraining device is required for moveable gas equipment. It is also for indoor use only and should not be used in temperatures below 32°F (0°C).
