Dormont Manufacturing

Dormont Blue Hose 48-Inch Moveable Gas Connector Hose Assembly, 3/4-Inch I.D., SnapFast Quick-Disconnect, Swivel MAX

SKU: 1675BPQS48BX
$350.71
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

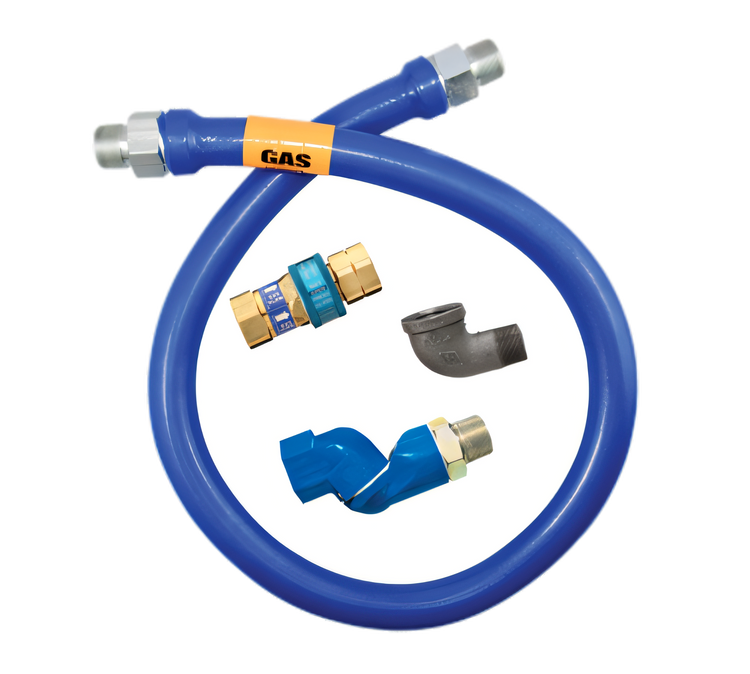

Dormont Blue Hose 48-Inch Moveable Gas Connector Hose Assembly, 3/4-Inch I.D., SnapFast Quick-Disconnect, Swivel MAX

Blue Antimicrobial PVC-Coated Stainless Steel Braid, Retail Box

Built for moveable gas appliances, this 48-inch Dormont Blue Hose assembly combines a 360° Swivel MAX fitting, one-handed SnapFast quick-disconnect, and antimicrobial PVC-coated stainless steel construction for safer, more flexible installations.

  • 48-inch moveable gas connector hose assembly with 3/4-inch inside diameter.
  • Swivel MAX fitting provides 360° movement to reduce connector stress and improve wall clearance.
  • SnapFast quick-disconnect allows one-handed disconnection and includes thermal shut-off at 350°F.
  • Annealed 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating.
  • Designed for moveable commercial gas equipment; restraining device required on caster-mounted installations.
  • Limited lifetime warranty for the original appliance connection.

Product Weight:

6.15 lb

Swivel MAX 360° Fitting

Multi-plane end fitting helps reduce stress on the connector and allows the appliance to sit closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with a thermal shut-off that automatically stops gas flow when internal temperature exceeds 350°F.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable commercial use.

Blue Antimicrobial PVC Coating

Blue PVC coating helps resist microbial growth, will not hold a flame, and melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce wear and extend connector life.

Moveable Appliance Application

Designed for moveable gas equipment; a restraining device is required for caster-mounted installations.

Hose Assembly Components

Hose assemblies include the Dormont Blue Hose, Swivel MAX, SnapFast, and street elbow.

Type Moveable Gas Connector Hose Assembly
Style Swivel / Quick-Disconnect
Length 48 Inches
Inside Diameter 3/4 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 167,000 BTU/hr
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The SnapFast quick-disconnect shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
The maximum operating pressure is 1/2 psi.
It uses annealed 304 stainless steel tubing, multi-strand stainless steel wire braid, and a blue antimicrobial PVC coating with carbon steel end fittings.
No. The documentation states that it is for indoor use only and not for use in temperatures less than 32°F (0°C).
