Dormont Manufacturing

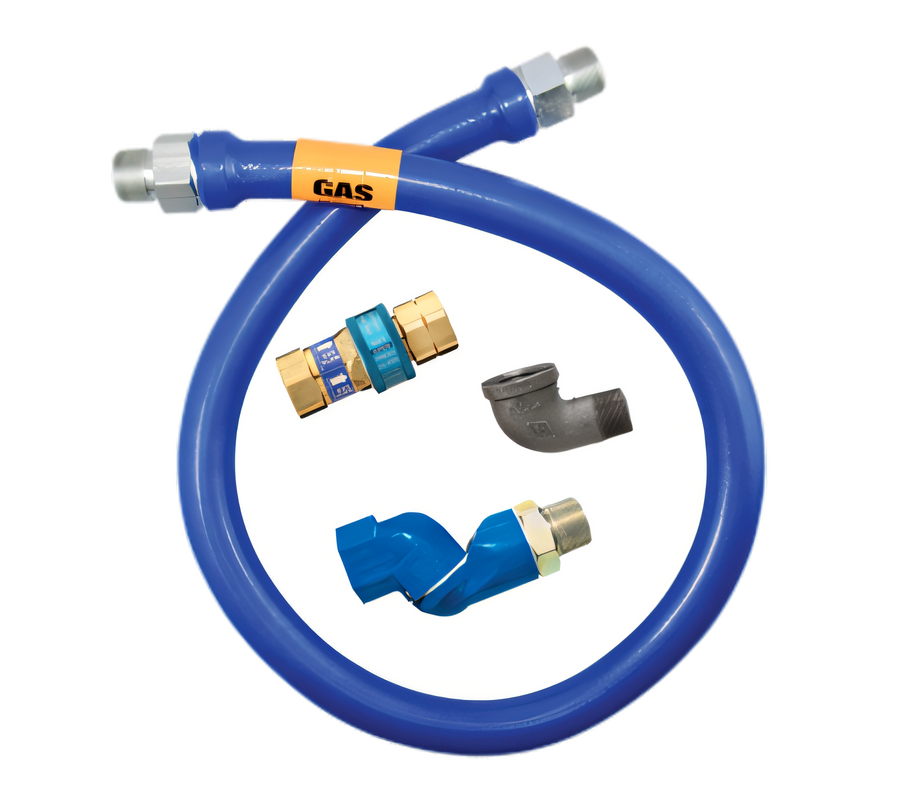

Dormont Blue Hose 3/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick-Disconnect

SKU: 1675BPQS48
GTIN: 662447015421
$350.71
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick-Disconnect

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 167,000 BTU/hr Minimum Natural Gas Flow Capacity

Built for moveable commercial gas equipment, this 3/4-inch, 48-inch connector combines 360° Swivel MAX movement with a one-handed SnapFast quick-disconnect for safer, easier appliance service.

  • 3/4-inch inside diameter and 48-inch length for commercial moveable gas equipment
  • Swivel MAX fitting provides 360° rotational movement to reduce connector stress and help appliances sit closer to the wall
  • SnapFast one-handed quick-disconnect includes thermal shut-off above 350°F (177°C)
  • Annealed 304 stainless steel tubing with multi-strand stainless steel braid for durable performance
  • Blue antimicrobial PVC coating helps protect the hose and will not hold a flame
  • 167,000 BTU/hr minimum natural gas flow capacity with limited lifetime warranty

Product Weight:

4.53 lb

360° Swivel MAX Movement

Multi-plane rotational fitting improves flexibility, reduces stress on the connector, and can add usable aisle space.

SnapFast One-Handed Quick-Disconnect

Quick-disconnect fitting allows fast, one-handed appliance separation for service and cleaning.

Automatic Thermal Shut-Off

Gas flow shuts off automatically when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides durable connector performance.

Blue Antimicrobial PVC Coating

Blue coating resists flame and melts at 350°F (177°C), adding protection to the hose assembly.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce strain and extend connector life.

Designed for Moveable Equipment

Intended for commercial moveable gas appliances; a restraining device is required for moveable installations.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Single Swivel MAX / SnapFast Quick-Disconnect
Gas Type Natural Gas
Inside Diameter 3/4 Inch
Length 48 Inches
BTU 167,000 BTU/hr
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
Country of Origin USA
Shipping Weight 4.53 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 48 inches long.
This hose assembly is rated for 167,000 BTU/hr minimum natural gas flow capacity.
The SnapFast fitting is a one-handed quick-disconnect design with thermal shut-off above 350°F (177°C).
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
No. It is for indoor use only and should not be used in temperatures below 32°F (0°C).
