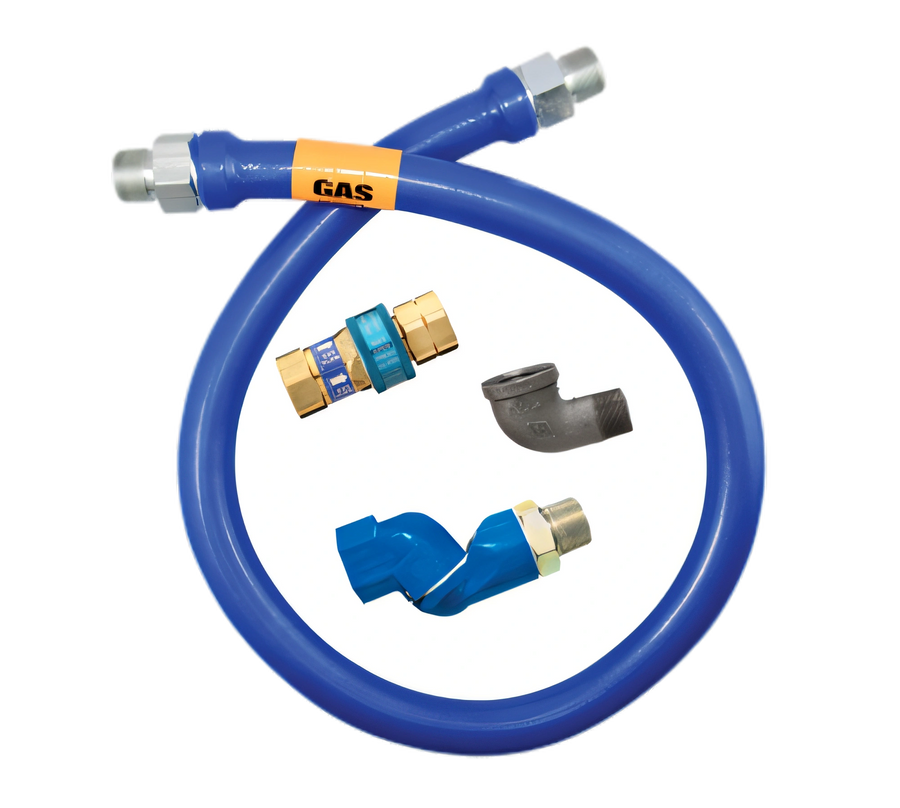

Dormont Blue Hose 3/4 Inch I.D. 36 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Swivel MAX

Blue antimicrobial PVC-coated stainless steel braid, 203,000 BTU/hr minimum flow capacity

Built for moveable commercial gas equipment, this 36-inch connector combines 360° flexibility, a one-handed quick-disconnect, and a protective antimicrobial coating.

  • 3/4-inch inside diameter and 36-inch length for moveable commercial gas equipment.
  • 304 stainless steel tubing and multi-strand stainless steel braid add durability and flexibility.
  • Blue antimicrobial PVC coating helps protect the hose and will not hold a flame.
  • Swivel MAX provides 360° rotational movement to reduce stress and help appliances sit closer to the wall.
  • SnapFast quick-disconnect allows one-handed disconnection and adds thermal shut-off protection above 350°F.
  • Rated at 203,000 BTU/hr minimum flow capacity for the 36-inch, 3/4-inch configuration.

Product Weight:

3.88 lb

304 Stainless Steel Tubing and Braid

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for strength and flexibility.

Blue Antimicrobial PVC Coating

Protective blue PVC coating resists flame and melts at 350°F.

Swivel MAX 360° Rotation

Multi-plane fitting improves movement, reduces connector stress, and helps create extra kitchen aisle space.

SnapFast One-Handed Quick-Disconnect

Brass-body quick-disconnect with aluminum collar and thermal shut-off when internal temperatures exceed 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the connector.

Moveable Equipment Application

Designed for commercial moveable gas appliances; a restraining device is required for caster-mounted equipment.

USA Manufactured

Manufactured in the USA.

Type Gas Connector Hose Assembly
Style Moveable
Inside Diameter 3/4 Inch
Length 36 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 203,000 BTU/hr
Shipping Weight 3.88 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is a 3/4-inch inside diameter hose assembly with a 36-inch length.
The assembly includes one SnapFast quick-disconnect and one Swivel MAX fitting.
The 3/4-inch, 36-inch configuration is rated at 203,000 BTU/hr minimum flow capacity.
Yes. The SnapFast quick-disconnect automatically shuts off gas when internal temperatures exceed 350°F (177°C).
Yes. It is for indoor use only, not for temperatures less than 32°F (0°C), maximum operating pressure is 1/2 psi, and a restraining device is required for moveable gas equipment.
