Dormont Manufacturing

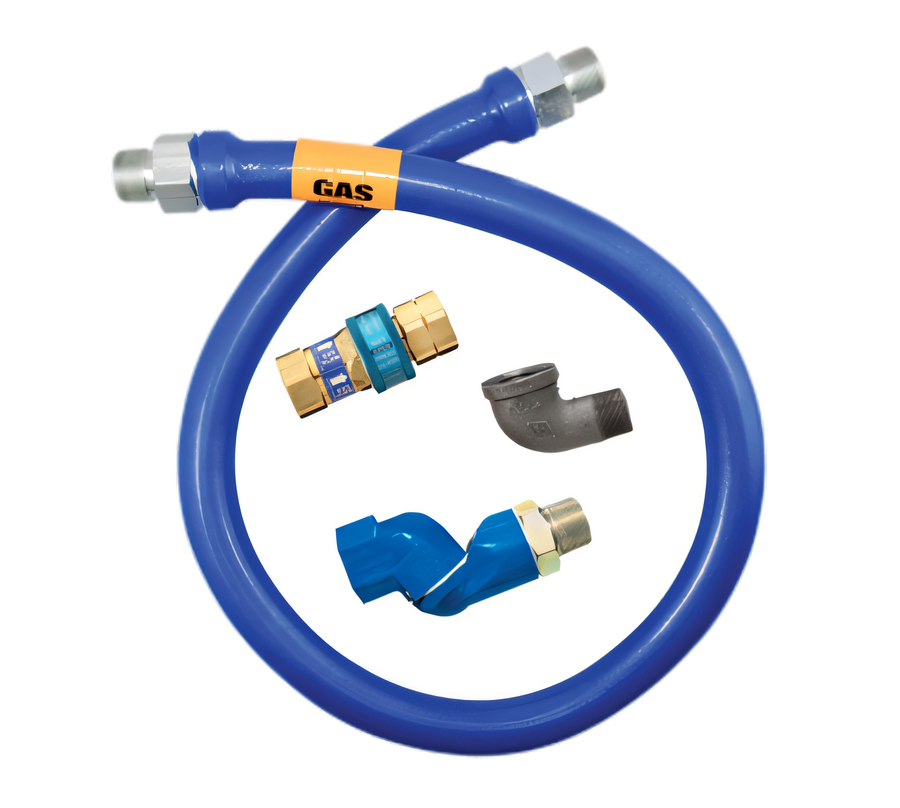

Dormont Blue Hose 3/4 Inch Inside Diameter x 24 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick Disconnect and Swivel MAX

SKU: 1675BPQS24
GTIN: 662447019870
$313.74
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4 Inch Inside Diameter x 24 Inch Moveable Gas Connector Hose Assembly with SnapFast Quick Disconnect and Swivel MAX

Blue Antimicrobial PVC-Coated Stainless Steel, 216,000 BTU/hr Minimum Flow Capacity

Built for commercial kitchens, this 24-inch moveable gas connector combines flexible 360° movement, one-handed quick disconnect convenience, and durable stainless steel construction for safer appliance positioning.

  • 3/4" inside diameter x 24" long hose assembly for moveable gas equipment
  • Swivel MAX fitting provides 360° rotational movement to reduce stress on the connector
  • SnapFast one-handed quick-disconnect includes thermal shut-off above 350°F (177°C)
  • Annealed 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating
  • Rated for 216,000 BTU/hr minimum flow capacity
  • Limited lifetime warranty for the original appliance connection

Product Weight:

3.33 lb

Swivel MAX 360° Rotational Fitting

Multi-plane rotation helps reduce stress on the hose and allows appliances to be positioned closer to the wall.

SnapFast One-Handed Quick Disconnect

Allows fast, one-handed disconnecting and includes thermal shut-off when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for commercial durability.

Blue Antimicrobial PVC Coating

Blue protective coating resists flame and adds an antimicrobial surface layer to the hose assembly.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress and extend connector life.

High Flow Capacity

Designed for a minimum natural gas flow capacity of 216,000 BTU/hr at the specified 24-inch length.

Moveable Equipment Application

Engineered for commercial moveable gas appliances; a restraining device is required for caster-mounted equipment.

Type Gas Connector Hose Assembly
Style Moveable
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Inside Diameter 3/4 Inch
Length 24 Inches
BTU 216,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 3.33 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4" inside diameter and is 24 inches long.
The minimum flow capacity is 216,000 BTU/hr.
Yes. It includes a SnapFast one-handed quick-disconnect and a Swivel MAX fitting.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
The hose uses annealed 304 stainless steel tubing, stainless steel braid, and a blue antimicrobial PVC coating.
This product carries a limited lifetime warranty for the original appliance connection.
