Dormont Manufacturing

Dormont Blue Hose 3/4 Inch I.D. x 72 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

SKU: 1675BPQ2S72
GTIN: 662447053232
$474.22
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

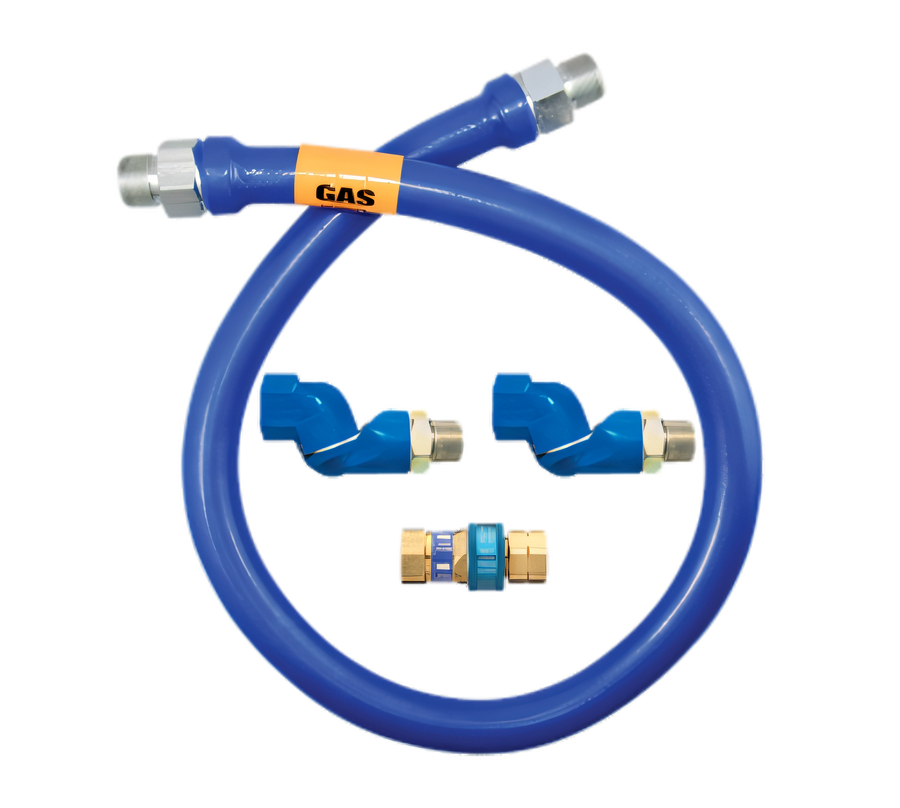

Dormont Blue Hose 3/4 Inch I.D. x 72 Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

Blue Antimicrobial PVC Coating, 124,000 BTU/hr Flow Capacity

Built for moveable commercial gas equipment, this 72-inch Dormont Blue Hose assembly combines a SnapFast quick-disconnect with double Swivel MAX fittings for safer, lower-stress positioning.

  • 72-inch hose assembly with a 3/4-inch inside diameter
  • Double Swivel MAX fittings provide 360° movement and help reduce connector stress
  • SnapFast one-handed quick-disconnect adds convenient hook-up and thermal shut-off protection
  • Annealed 304 stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating
  • Rated for 124,000 BTU/hr minimum flow capacity
  • Limited lifetime warranty for the life of the original appliance

Product Weight:

6.2 lb

Double Swivel MAX Fittings

360° rotational end fittings increase flexibility, reduce stress at both ends of the hose, and help position equipment closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off that closes the gas supply when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for commercial durability.

Blue Antimicrobial PVC Coating

Protective blue coating melts at 350°F (177°C) and will not hold a flame.

High Flow Capacity

Minimum flow capacity of 124,000 BTU/hr on the 72-inch, 3/4-inch I.D. model.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast
Inside Diameter 3/4 Inch
Length 72 Inches
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial PVC Coating
BTU 124,000 BTU/hr
Country of Origin USA
Shipping Weight 6.2 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 72 inches long.
The assembly includes one SnapFast quick-disconnect fitting and double Swivel MAX fittings.
The 72-inch, 3/4-inch I.D. model has a minimum flow capacity of 124,000 BTU/hr.
It has a thermal shut-off that automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
It includes a limited lifetime warranty for the life of the original appliance to which it is connected.
