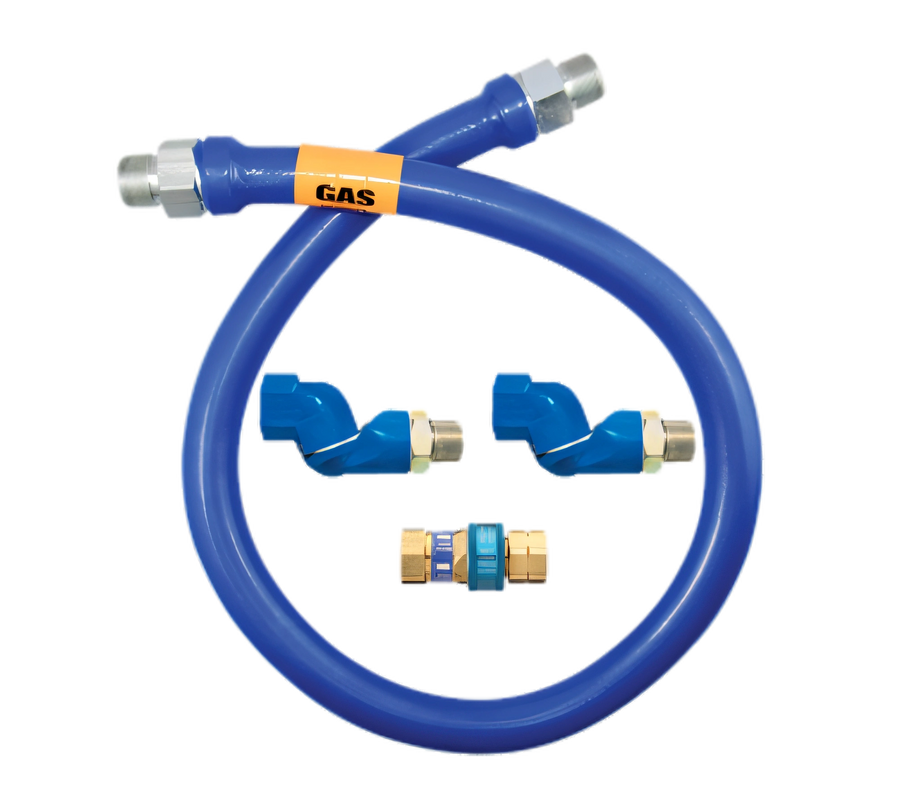

Dormont Blue Hose 24-Inch 3/4-Inch ID Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

Blue Antimicrobial PVC Coating, Stainless Steel Braid, Natural Gas

Give moveable commercial gas equipment safer, easier positioning with a 24-inch hose assembly that combines 360° swivel movement, one-handed quick disconnect, and thermal shut-off protection.

  • 24-inch hose assembly with 3/4-inch inside diameter for moveable commercial gas applications.
  • Double Swivel MAX fittings provide 360° movement at both ends and help reduce connector stress.
  • SnapFast quick-disconnect enables one-handed disconnecting and automatic thermal shut-off above 350°F.
  • Stainless steel construction with blue antimicrobial PVC coating for durability and easy identification.
  • Rated for 205,000 BTU/hr natural gas flow capacity at 24-inch length.
  • Limited lifetime warranty and made in the USA.

Product Weight:

3.98 lb

360° Dual Swivel Movement

Swivel MAX fittings rotate at both ends to reduce strain on the connector and allow appliances to be positioned closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting simplifies appliance removal and includes thermal shut-off protection when internal temperatures exceed 350°F (177°C).

Blue Antimicrobial PVC Coating

The hose is coated in blue antimicrobial PVC that helps protect the connector and will not hold a flame.

Stainless Steel Hose Construction

Uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.

Moveable Equipment Application

Designed for commercial moveable gas equipment; a restraining device is required for all moveable gas equipment installations.

Limited Lifetime Warranty

Covered by a limited lifetime warranty for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast Quick-Disconnect
Length 24 Inches
Inside Diameter 3/4 Inch
Material Stainless Steel
Finish Blue Antimicrobial PVC
BTU 205,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This hose assembly includes the Dormont Blue Hose, Double Swivel MAX fittings, and the SnapFast quick-disconnect.
It has a 205,000 BTU/hr natural gas flow capacity at 0.64 specific gravity and a 0.5 inch WC pressure drop.
Yes. The SnapFast quick-disconnect automatically shuts off gas when internal temperatures exceed 350°F (177°C).
Yes. A restraining device is required for all moveable gas equipment.
It is for indoor use only, should not be used in temperatures below 32°F (0°C), and has a maximum operating pressure of 1/2 psi.
The hose assembly is backed by a limited lifetime warranty for the life of the original appliance.
