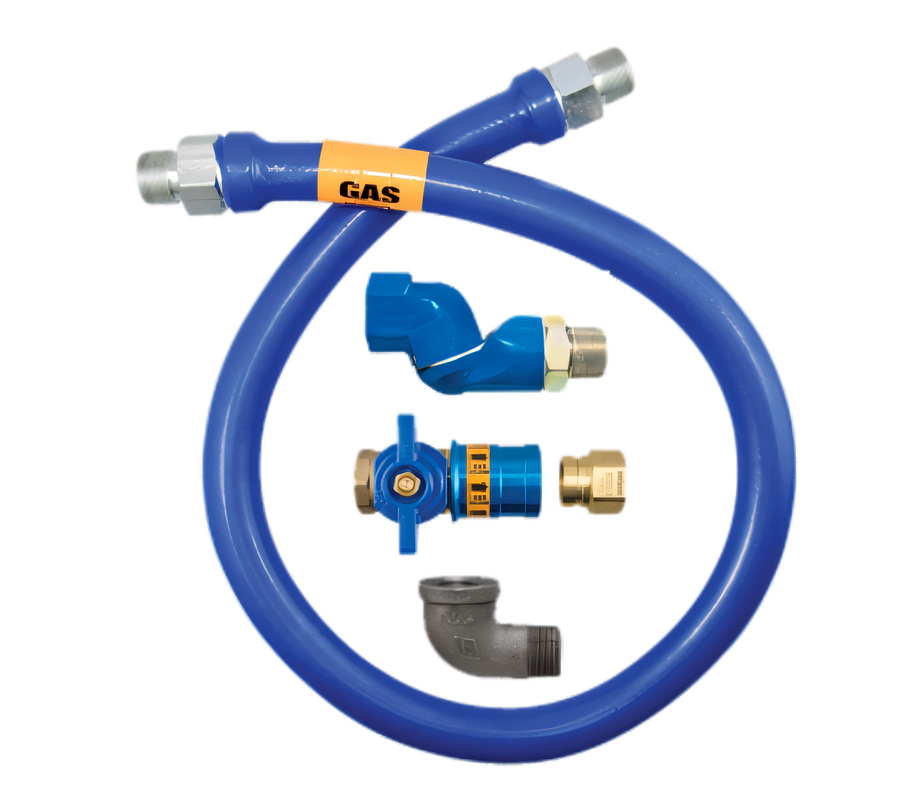

Dormont Blue Hose 3/4-Inch I.D. 72-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

SKU: 1675BPCFS72
GTIN: 662447054864
$453.49
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4-Inch I.D. 72-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 130,000 BTU/hr Minimum Flow Capacity

Built for commercial moveable gas equipment, this 72-inch hose assembly combines 360° swivel flexibility, quick-disconnect safety, and durable stainless steel construction.

  • 72-inch moveable gas connector hose assembly with 3/4-inch inside diameter.
  • Swivel MAX 360° rotation helps reduce connector stress and lets equipment sit closer to the wall.
  • Safety Quik quick-disconnect valve provides one-handed disconnect protection and automatic shutoff safety.
  • 304 stainless steel tubing and wire braid are protected by a blue antimicrobial PVC coating.
  • Rated for 130,000 BTU/hr minimum flow capacity and backed by a limited lifetime warranty.

Product Weight:

6.86 lb

Swivel MAX 360° Rotation

Multi-plane end fitting provides 360° movement to reduce stress on the connector and improve appliance placement.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve allows one-handed disconnect and includes a thermal shutoff that closes gas flow at 250°F-300°F.

304 Stainless Steel Hose

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid offers flexibility and durability.

Blue Antimicrobial PVC Coating

Protective coating helps resist flame propagation; it melts at 350°F and will not hold a flame.

High Flow Capacity

Rated at 130,000 BTU/hr minimum flow capacity.

Includes Street Elbow

Assembly includes one elbow for installation.

Designed for Moveable Equipment

Built for indoor commercial moveable gas applications; a restraining device is required for all moveable gas equipment.

Type Gas Connector Hose Assembly
Style Moveable
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
BTU 130,000 BTU/hr
Inside Diameter 3/4 Inch
Length 72 Inches
Shipping Weight 6.86 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes the Dormont Blue Hose, Swivel MAX fitting, Safety Quik quick-disconnect valve, and a street elbow.
This assembly has a 3/4-inch inside diameter and is 72 inches long.
It is rated for a 130,000 BTU/hr minimum flow capacity.
Safety Quik provides one-handed quick-disconnect functionality and helps prevent gas from being turned on while the appliance is disconnected.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
For indoor use only, with a maximum operating pressure of 1/2 psi and not for use in temperatures below 32°F.
