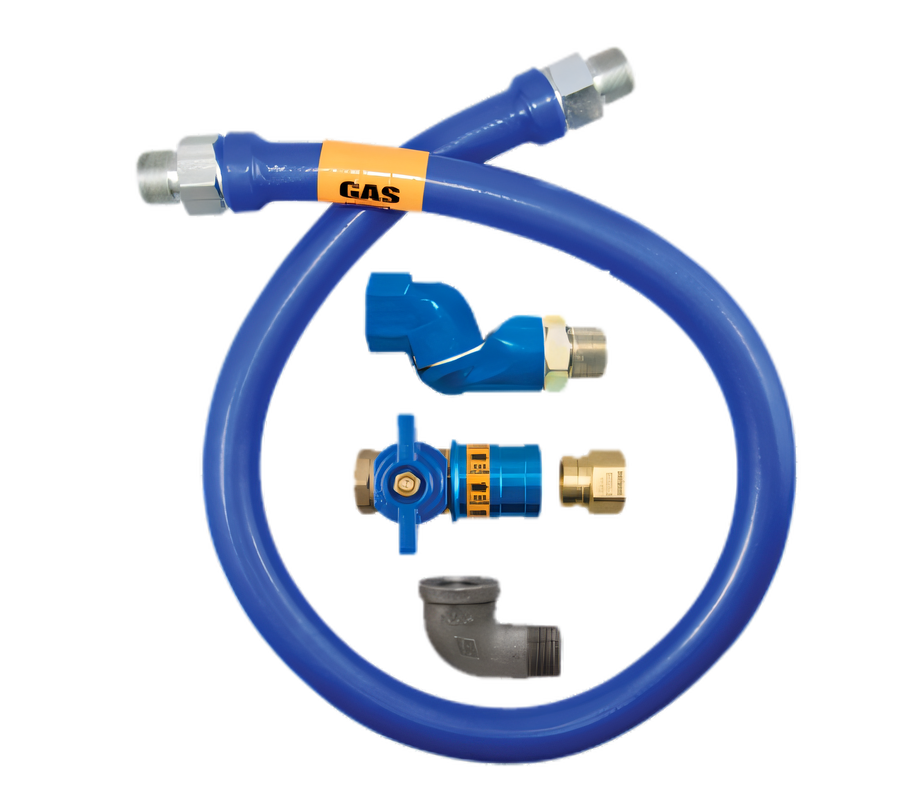

Dormont Blue Hose 3/4-Inch x 48-Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik

Blue Antimicrobial PVC-Coated Stainless Steel Hose, Retail Box

Built for moveable commercial gas equipment, this 48-inch hose assembly combines 360° swivel flexibility with Safety Quik shutoff protection and durable stainless steel construction.

  • 48-inch moveable gas connector hose assembly with 3/4-inch inside diameter.
  • Swivel MAX fittings provide 360° rotational movement to reduce stress on the connector.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and safety shutoff protection.
  • Annealed 304 stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating.
  • Includes a 90° street elbow and is packaged in a retail box.
  • Designed for indoor use only with a maximum operating pressure of 1/2 psi.

Product Weight:

6.98 lb

Swivel MAX 360° Rotation

Multi-plane fitting with 360° rotational end movement helps reduce connector stress and allows equipment to sit closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a full-port brass ball valve and thermal shutoff between 250°F and 300°F.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Blue protective coating is antimicrobial, will not hold a flame, and melts at 350°F.

90° Street Elbow Included

Includes a 90-degree street elbow for installation.

Retail Box Packaging

Packaged in a retail box.

Indoor Use Only

For indoor use only; maximum operating pressure is 1/2 psi and it is not for use in temperatures below 32°F.

Type Gas Connector Hose Assembly
Style Swivel
Inside Diameter 3/4 Inch
Length 48 Inches
Material Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 167,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 6.98 Pounds

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes the Dormont Blue Hose, Swivel MAX, Safety Quik quick-disconnect valve, and a 90° street elbow.
The hose has a 3/4-inch inside diameter and is 48 inches long.
Safety Quik provides quick-disconnect functionality and prevents gas from being turned on while the appliance is disconnected; its thermal shutoff activates between 250°F and 300°F.
Swivel MAX provides 360° rotational movement to reduce stress on the connector and allow the appliance to be positioned closer to the wall.
The hose uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braid and a blue antimicrobial PVC coating.
Yes. It is for indoor use only, has a maximum operating pressure of 1/2 psi, and should not be used in temperatures below 32°F.
