Dormont Blue Hose 3/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

SKU: 1675BPCFS48
GTIN: 662447046975
$402.12
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

Blue antimicrobial PVC-coated stainless steel; 167,000 BTU/hr minimum flow capacity

This 3/4-inch x 48-inch moveable gas connector combines swivel flexibility and a Safety Quik shutoff to make appliance hookups safer and easier.

  • 3/4" inside diameter and 48" length for moveable commercial gas equipment connections
  • Swivel MAX 360° rotation helps reduce connector stress and lets equipment sit closer to the wall
  • Safety Quik quick-disconnect valve adds one-handed disconnection plus a safety shutoff
  • 304 stainless steel tubing and stainless steel braid are coated with blue antimicrobial PVC
  • Rated for 167,000 BTU/hr minimum natural gas flow capacity at 0.5 inch W.C. pressure drop
  • For indoor use only; a restraining device is required for moveable gas equipment
  • Backed by a limited lifetime warranty

Product Weight:

5.84 lb

Swivel MAX 360° Rotation

Multi-plane fitting rotates fully to reduce stress on the connector and help create more kitchen aisle space by allowing the appliance to sit closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve provides one-handed quick disconnect functionality and a safety shutoff that helps prevent gas from being turned on while the appliance is disconnected.

304 Stainless Steel Construction

Annealed stainless steel tubing with stainless steel wire braid is built for commercial moveable-gas applications.

Blue Antimicrobial PVC Coating

The stainless steel braid is covered with blue antimicrobial PVC coating that will not hold a flame and melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress where the hose connects to the appliance and supply line.

Natural Gas Flow Capacity

Minimum flow capacity is rated at 167,000 BTU/hr for natural gas at a 0.5 inch W.C. pressure drop.

Use and Safety Limits

For indoor use only, with a maximum operating pressure of 1/2 psi and a minimum temperature limit of 32°F. A restraining device is required for moveable gas equipment.

Type Gas Connector Hose Assembly
Style Moveable Quick-Disconnect
Inside Diameter 3/4 Inch
Length 48 Inches
BTU 167,000 BTU/hr
Gas Type Natural Gas
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Country Of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This model has a 3/4" inside diameter and is 48" long.

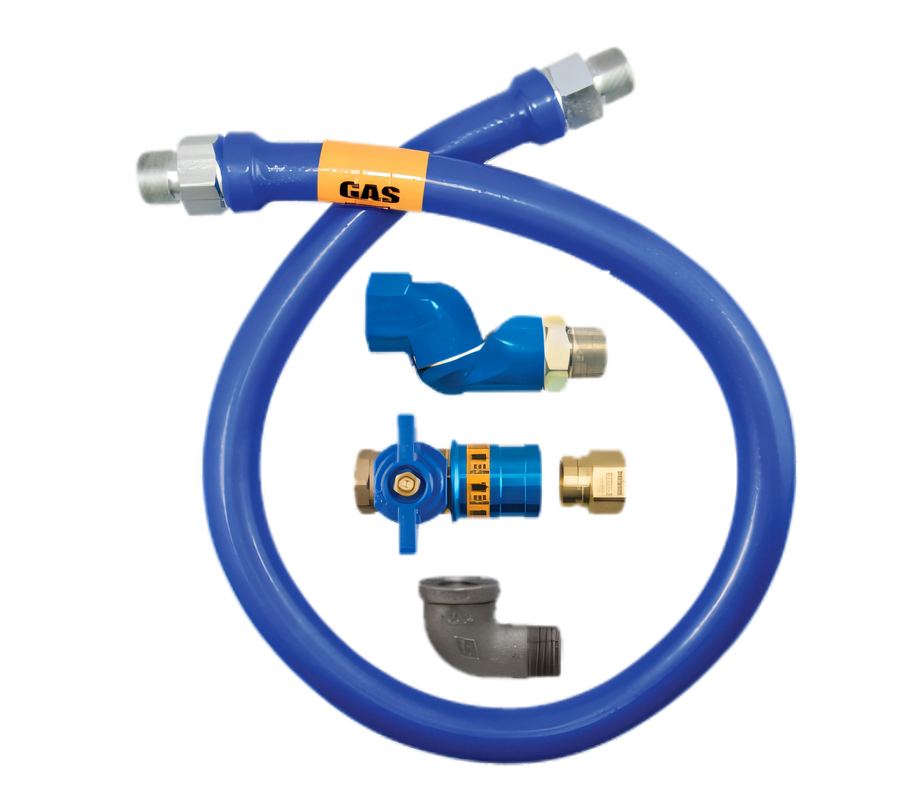

The assembly includes the Dormont Blue Hose, Swivel MAX fitting, Safety Quik quick-disconnect valve, and an elbow.
It is rated at 167,000 BTU/hr minimum flow capacity for natural gas at a 0.5 inch W.C. pressure drop.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
This connector is for indoor use only, has a maximum operating pressure of 1/2 psi, and should not be used in temperatures below 32°F.
Safety Quik provides quick-disconnect protection and includes a thermal shutoff that closes gas flow within 250°F to 300°F.
