Dormont Manufacturing

Dormont Blue Hose 3/4 Inch I.D. x 36 Inch Moveable Gas Connector Hose Assembly with Safety Quik and Swivel MAX

SKU: 1675BPCFS36
GTIN: 662447047132
$374.15
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

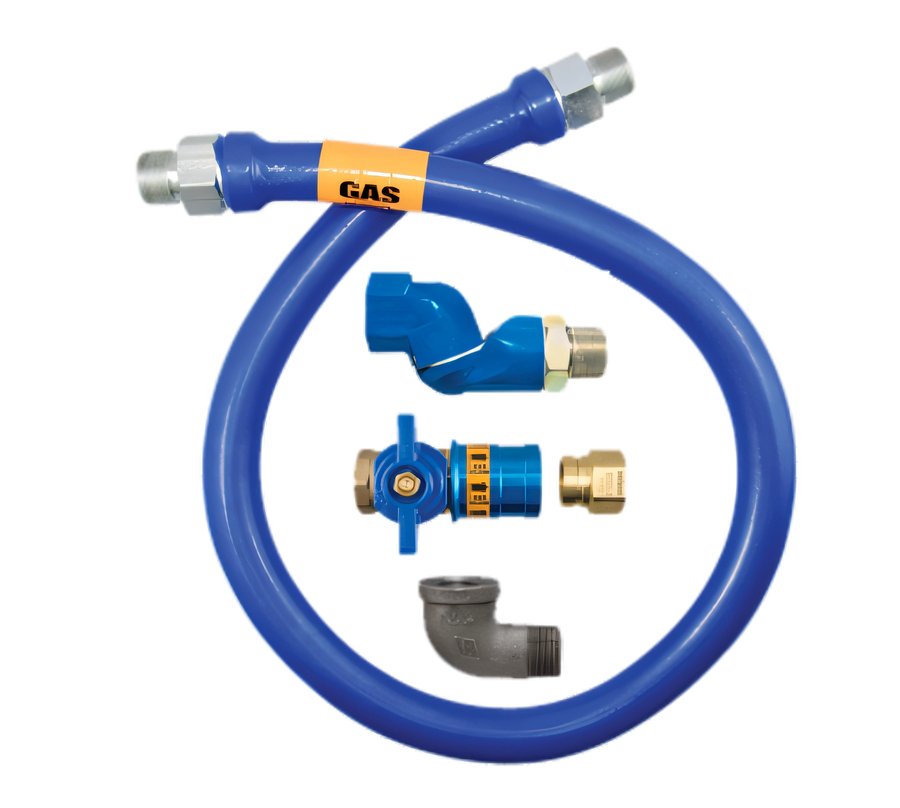

Dormont Blue Hose 3/4 Inch I.D. x 36 Inch Moveable Gas Connector Hose Assembly with Safety Quik and Swivel MAX

Blue antimicrobial PVC-coated stainless steel, 203,000 BTU/hr minimum flow capacity

Built for commercial moveable gas equipment, this 36-inch hose assembly combines a Safety Quik shutoff valve and 360° Swivel MAX fitting for safer, lower-stress operation.

  • 3/4 inch inside diameter and 36 inch length for moveable commercial gas appliances.
  • Safety Quik quick-disconnect valve helps prevent accidental gas flow when the appliance is disconnected.
  • Swivel MAX 360° fitting reduces connector stress and helps the appliance sit closer to the wall.
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating.
  • 203,000 BTU/hr minimum flow capacity for natural gas applications.
  • Limited lifetime warranty and manufactured in the USA.

Product Weight:

5.19 lb

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve with a full-port brass ball valve that helps prevent gas flow when the appliance is disconnected.

Swivel MAX 360° Rotational Fitting

Multi-plane fitting provides full rotational movement to reduce connector stress and improve installation flexibility.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist flame and adds a visible, antimicrobial exterior finish.

Stress Guard Rotational End Fittings

360° rotational end fittings at both ends help reduce wear and extend hose life.

Natural Gas Flow Capacity

Rated for a minimum flow capacity of 203,000 BTU/hr at 0.5 inch W.C. pressure drop.

Designed for Moveable Equipment

Engineered for commercial moveable gas appliances; a restraining device is required for moveable installations.

Type Gas Hose Assembly
Style With Safety Quik and Swivel MAX
Length 36 Inches
Inside Diameter 3/4 Inch
Material Stainless Steel
Color Blue
Finish Antimicrobial PVC Coating
Capacity 203,000 BTU/hr Minimum Flow Capacity
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4 inch inside diameter and is 36 inches long.
This hose assembly has a minimum flow capacity of 203,000 BTU/hr for natural gas applications.
Safety Quik is a quick-disconnect protection valve that helps prevent gas flow when the appliance is disconnected.
The hose assembly includes the Blue Hose, Swivel MAX, Safety Quik, and a street elbow.
Yes. A restraining device is required for all moveable gas equipment.
No. The documentation states it is for indoor use only.
