Dormont Blue Hose 24-Inch 3/4-Inch ID Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik Quick-Disconnect Valve

Blue Antimicrobial PVC Coating, Stainless Steel Braid

Built for moveable commercial gas equipment, this 24-inch hose assembly combines 360° stress-reducing rotation with a Safety Quik quick-disconnect valve for safer, easier connection management.

  • 24-inch moveable gas connector hose assembly with 3/4-inch inside diameter
  • Swivel MAX provides 360° rotational movement to reduce stress on the connector
  • Safety Quik quick-disconnect valve adds one-handed disconnect protection and thermal shutoff
  • Stainless steel construction with blue antimicrobial PVC coating for commercial durability
  • 216,000 BTU/hr minimum flow capacity with 1/2 psi maximum operating pressure
  • Limited lifetime warranty for the original appliance connection

Product Weight:

4.64 lb

Swivel MAX 360° Rotation

Multi-plane end fitting allows full rotational movement to reduce connector stress and help position equipment closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect valve provides one-handed quick disconnect functionality with a built-in safety shut-off feature.

Thermal Shut-Off Protection

Safety Quik shuts off gas flow within a 250°F to 300°F temperature range if overheated.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with stainless steel wire braid is built for commercial kitchen use.

Blue Antimicrobial PVC Coating

Blue PVC coating helps protect the hose, will not hold a flame, and melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce wear and extend connector life.

Moveable Equipment Design

Designed for moveable gas appliances; a restraining device is required for caster-mounted equipment.

Type Gas Connector Hose Assembly
Style Moveable
Length 24 Inches
Inside Diameter 3/4 Inch
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 216,000 BTU/hr
Operating Pressure 1/2 psi Maximum
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

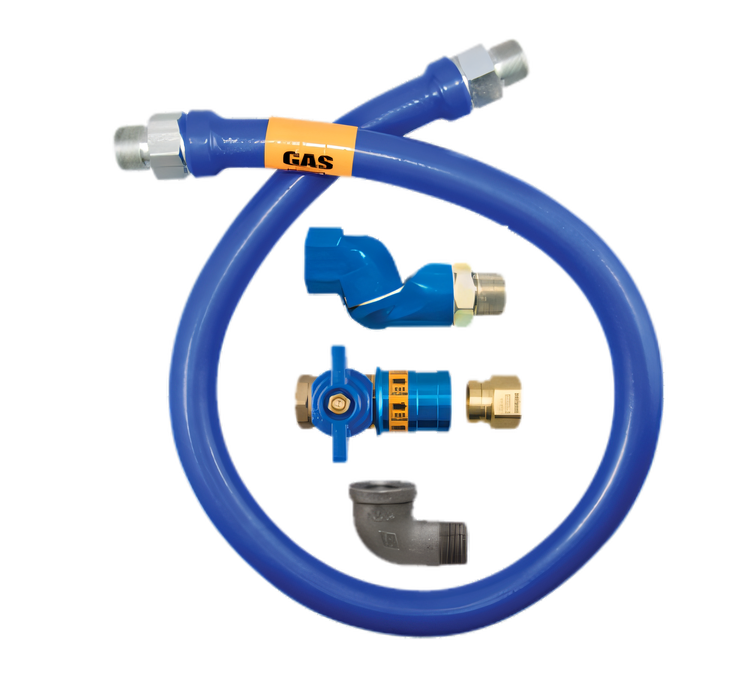

It includes the Dormont Blue Hose, Swivel MAX, Safety Quik quick-disconnect valve, and a street elbow.
This model is 24 inches long with a 3/4-inch inside diameter.
The 24-inch 3/4-inch model has a 216,000 BTU/hr minimum flow capacity at 0.64 specific gravity and 0.5-inch W.C. pressure drop.
It provides one-handed quick-disconnect functionality and thermal shutoff between 250°F and 300°F.
Yes. A restraining device is required for all moveable gas equipment.
This product carries a limited lifetime warranty for the life of the original appliance to which it is connected.
