Dormont Manufacturing Dormont Blue Hose 1675BPCF60 Moveable Natural Gas Connector Hose Assembly, 3/4-Inch x 60-Inch, Quick-Disconnect Valve

SKU: 1675BPCF60 GTIN: 662447046760
$360.64
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

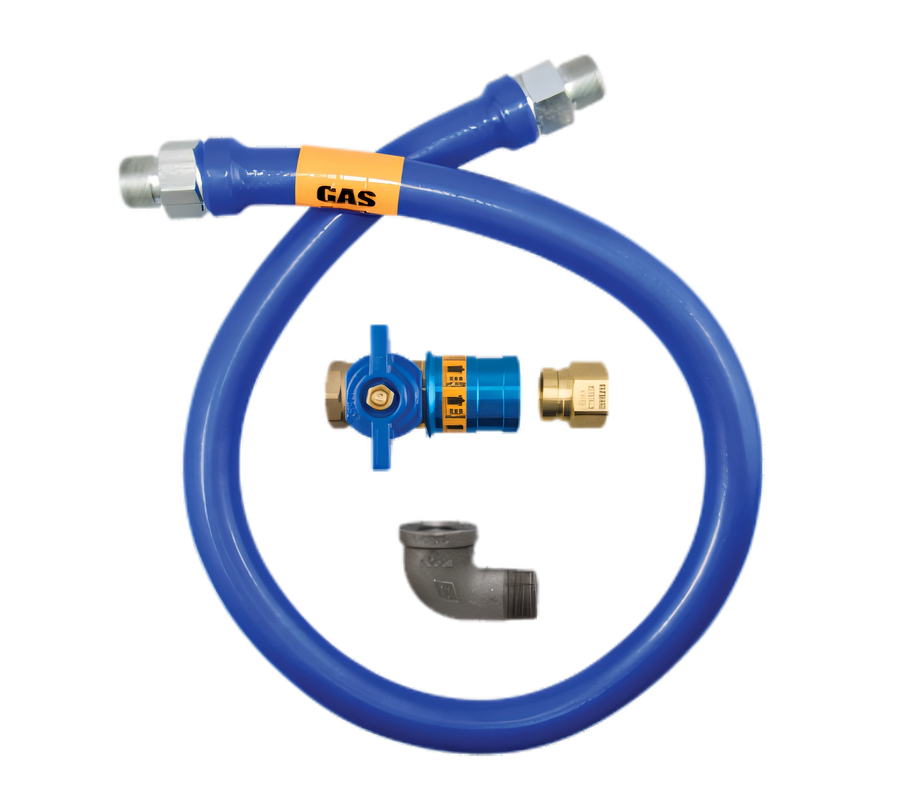

Dormont Blue Hose 3/4-Inch I.D. x 60-Inch Moveable Gas Connector Hose Assembly with Safety Quik QDV

Natural gas rated; blue antimicrobial PVC coating; elbow included

Designed for moveable commercial gas equipment, this 60-inch Dormont Blue Hose assembly pairs a stainless steel braid with a Safety Quik quick-disconnect valve for safer hookups.

  • 3/4-inch inside diameter by 60-inch long hose assembly for moveable commercial gas equipment.
  • Rated for natural gas flow up to 158,000 BTU/hr at the listed 60-inch length.
  • Safety Quik quick-disconnect valve helps prevent accidental gas flow or disconnects.
  • 304 stainless steel tubing with stainless braid adds strength and durability.
  • Blue antimicrobial PVC coating makes the hose easy to identify and helps protect the braid.
  • Stress Guard rotating end fittings reduce strain; one elbow is included.

Product Weight:

5.71 lb

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect brass valve helps prevent gas from being turned on while disconnected and helps prevent disconnecting while gas is flowing.

Thermal Shutoff Protection

Built-in thermal shutoff closes gas flow at 250°F to 300°F for added safety.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid.

Blue Antimicrobial PVC Coating

Protective blue coating will not hold a flame and helps the hose stand out in the kitchen.

Stress Guard Rotational End Fittings

360° rotational fittings at both ends reduce stress on the hose connection points.

Included Elbow

One elbow is included with the assembly for installation convenience.

High Flow Capacity

60-inch, 3/4-inch I.D. assembly is rated at 158,000 BTU/hr for natural gas.

Related Searches

Parts & Accessories Cooking Equipment Parts Warewashing & Plumbing Parts Refrigeration, Freezer & Ice Parts Beverage Equipment Parts Work Table & Fabrication Parts Facility Equipment Parts
Type Gas Connector Hose Assembly
Style Moveable
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
Inside Diameter 3/4 Inch
Length 60 Inches
BTU 158,000 BTU/hr
Gas Type Natural Gas
Maximum Operating Pressure 1/2 PSI
Minimum Operating Temperature 32°F (0°C)
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This assembly has a 3/4-inch inside diameter and is 60 inches long.
The assembly includes the Dormont Blue Hose, a Safety Quik quick-disconnect valve, and one elbow.
The 60-inch, 3/4-inch I.D. assembly is rated at 158,000 BTU/hr for natural gas.
It helps prevent the gas from being turned on while disconnected and helps prevent disconnecting while gas is flowing; thermal shutoff activates at 250°F to 300°F.
Yes. The cutsheet states a restraining device is required for all moveable gas equipment and caster-mounted equipment.
No. The cutsheet states the product is for indoor use only and should not be used in temperatures less than 32°F (0°C).
