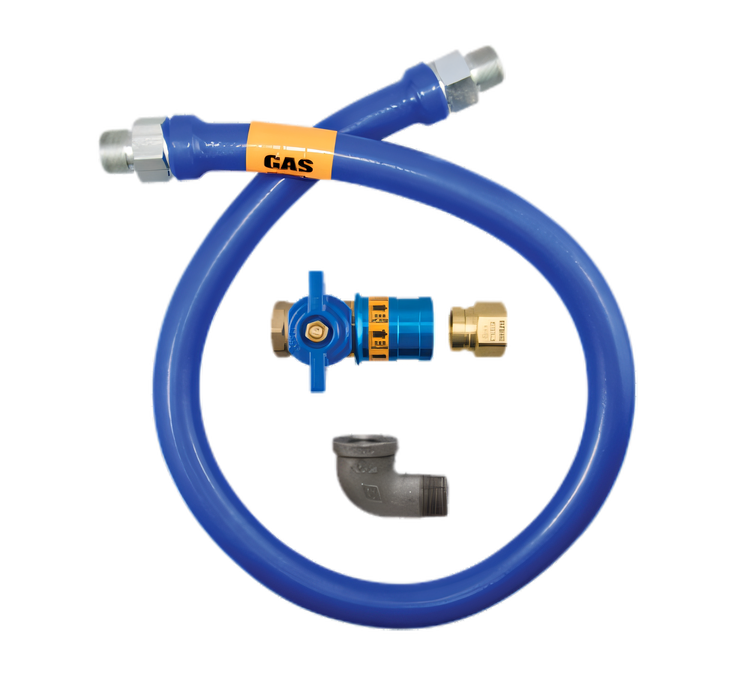

Dormont Blue Hose 3/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Safety Quik Quick-Disconnect Valve

SKU: 1675BPCF48BX
$331.78
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4 Inch x 48 Inch Moveable Gas Connector Hose Assembly with Safety Quik Quick-Disconnect Valve

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 90° Street Elbow Included

Built for moveable commercial gas equipment, this 3/4-inch x 48-inch hose assembly combines Safety Quik shutoff protection with durable stainless steel construction.

  • 3/4-inch inside diameter and 48-inch length are ideal for moveable gas appliance hookups.
  • Safety Quik quick-disconnect valve helps prevent gas flow when the appliance is disconnected.
  • 304 stainless steel tubing with stainless steel braid is protected by a blue antimicrobial PVC coating.
  • Stress Guard 360° rotational end fittings help reduce strain at both ends of the hose.
  • Rated at 180,000 BTU/hr for natural gas and maximum operating pressure of 1/2 psi.
  • Includes a 90° street elbow and is backed by a limited lifetime warranty.

Product Weight:

6.41 lb

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect brass valve provides one-handed quick-disconnect functionality and helps prevent unsafe gas flow when the appliance is not connected.

Thermal Shut-Off Protection

Built-in protection valve shuts off gas flow within the 250°F to 300°F range for added safety.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid is designed for demanding commercial kitchen use.

Blue Antimicrobial PVC Coating

Blue protective coating adds durability and is formulated not to hold a flame; it melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the hose and improve longevity.

Included 90° Street Elbow

One 90° street elbow is included for installation flexibility.

Type Gas Connector Hose Assembly
Style Moveable
Inside Diameter 3/4 Inch
Length 48 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coated
BTU 180,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 6.41 Pounds

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The hose assembly includes one Safety Quik quick-disconnect valve and one 90° street elbow.
It has a 3/4-inch inside diameter and is 48 inches long.
Yes. The document states that a restraining device is required for all moveable gas equipment.
Maximum operating pressure is 1/2 psi.
No. The document specifies indoor use only.
At 48 inches long, the 3/4-inch model is rated for 180,000 BTU/hr natural gas flow.
