Dormont Manufacturing

Dormont Blue Hose 3/4-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with Safety Quik and Double Swivel MAX

SKU: 1675BPCF2S72
GTIN: 662447046968
$531.92
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

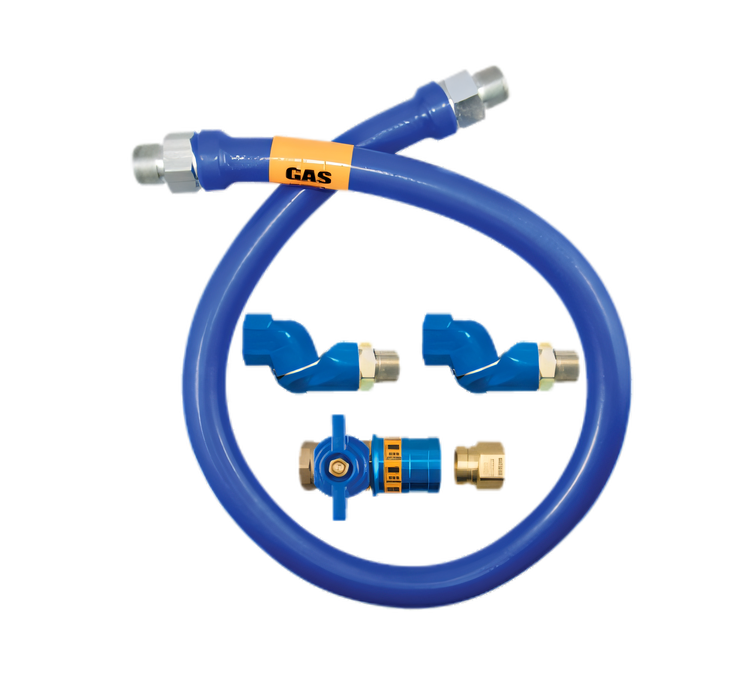

Dormont Blue Hose 3/4-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with Safety Quik and Double Swivel MAX

Blue antimicrobial PVC-coated stainless steel hose for commercial moveable gas equipment.

Give moveable commercial gas equipment a safer, more flexible hookup with a 72-inch stainless steel hose that combines quick-disconnect protection and 360° swivel movement.

  • 3/4-inch inside diameter and 72-inch length for moveable commercial gas equipment.
  • Includes Safety Quik quick-disconnect protection and Double Swivel MAX fittings for easier positioning.
  • 304 stainless steel tubing with stainless steel braid helps provide durable hose performance.
  • Blue antimicrobial PVC coating adds protection and helps the hose resist flame hold.
  • 124,000 BTU/hr minimum natural gas flow capacity at a 0.5-inch W.C. pressure drop.
  • Designed for indoor use, and a restraining device is required for moveable gas equipment.

Product Weight:

7.12 lb

Moveable-Grade Construction

Designed for commercial gas equipment that is mounted on casters or otherwise subject to movement.

3/4-Inch I.D. x 72-Inch Hose

Sized to the specified 3/4-inch inside diameter and 72-inch length.

304 Stainless Steel Hose Body

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.

Blue Antimicrobial PVC Coating

Protective blue coating helps improve safety and performance; it melts at 350°F and will not hold a flame.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a brass body and full-port brass ball valve for safer disconnects.

Double Swivel MAX End Fittings

360° rotational fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

124,000 BTU/hr Flow Capacity

Minimum natural gas flow capacity at a 0.5-inch W.C. pressure drop.

Limited Lifetime Warranty

Covered for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX
Inside Diameter 3/4 Inch
Length 72 Inches
BTU 124,000 BTU/hr
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 72 inches long.
The hose assembly includes the Dormont Blue Hose, Double Swivel MAX fittings, and the Safety Quik quick-disconnect valve.
It has a minimum 124,000 BTU/hr natural gas flow capacity at a 0.5-inch W.C. pressure drop.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
No. It is intended for indoor use only and should not be used in temperatures below 32°F (0°C).
It comes with a limited lifetime warranty, and Dormont states that the connector is guaranteed for the life of the original appliance to which it is connected.
