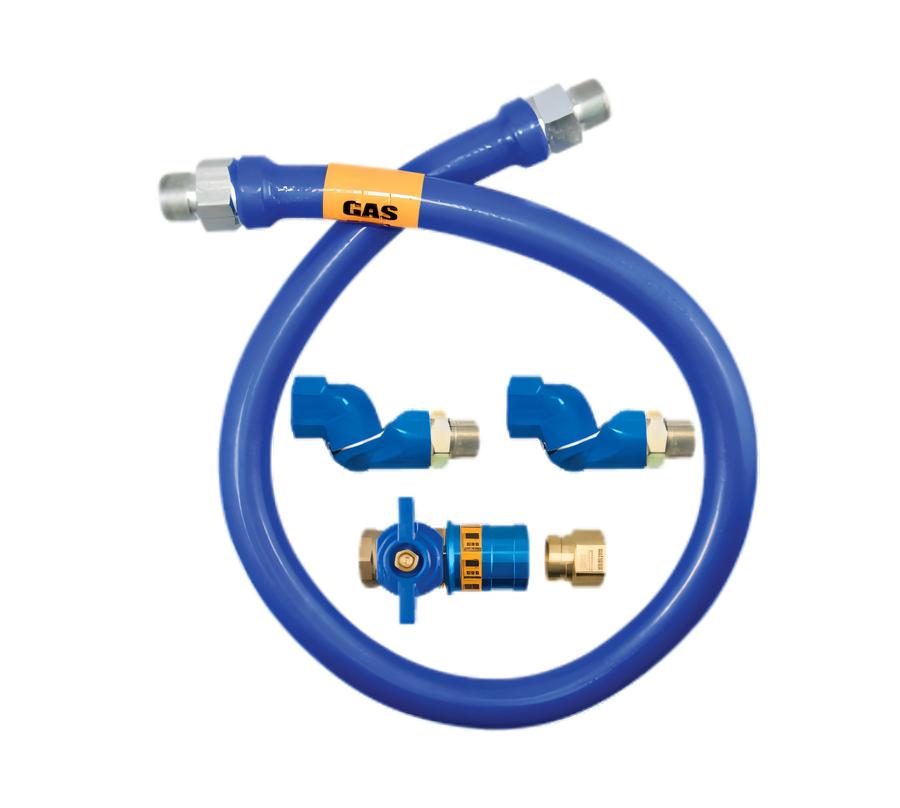

Dormont Blue Hose 3/4" I.D. x 60" Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik Quick-Disconnect Valve

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 140,000 BTU/hr

Designed for commercial moveable equipment, this hose assembly combines 360° swivel flexibility with a safety shutoff valve to help make appliance placement safer and easier.

  • 3/4-inch inside diameter and 60-inch length for commercial moveable gas equipment applications.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends to reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and thermal shutoff protection.
  • 304 stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating.
  • Rated for 140,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.
  • Limited lifetime warranty for the life of the original appliance to which it is connected.

Product Weight:

6.62 lb

Double Swivel MAX Fittings

360° rotational end fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a brass body, full-port brass ball valve, and thermal shutoff.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.

Blue Antimicrobial PVC Coating

Blue protective coating adds visibility, melts at 350°F, and will not hold a flame.

High Flow Capacity

Rated at 140,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.

Moveable Equipment Application

Designed for commercial moveable gas equipment; a restraining device is required for caster-mounted equipment.

Type Gas Connector Hose Assembly
Style Moveable
Material Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 140,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 6.62 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 60 inches long.
It includes a Safety Quik quick-disconnect valve with one-handed disconnect functionality and thermal shutoff protection.
The hose assembly is rated for 140,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.
Yes. It is designed for commercial moveable gas equipment, including equipment mounted on casters or otherwise subject to movement.
No. The hose assembly includes the hose, Double Swivel MAX, and Safety Quik components; the docs state that a restraining device is required for moveable gas equipment and is included with the deluxe kit.
It carries a limited lifetime warranty for the life of the original appliance to which it is connected.
