Dormont Manufacturing

Dormont Blue Hose 3/4-Inch I.D. x 48-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik

SKU: 1675BPCF2S48BX
$470.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

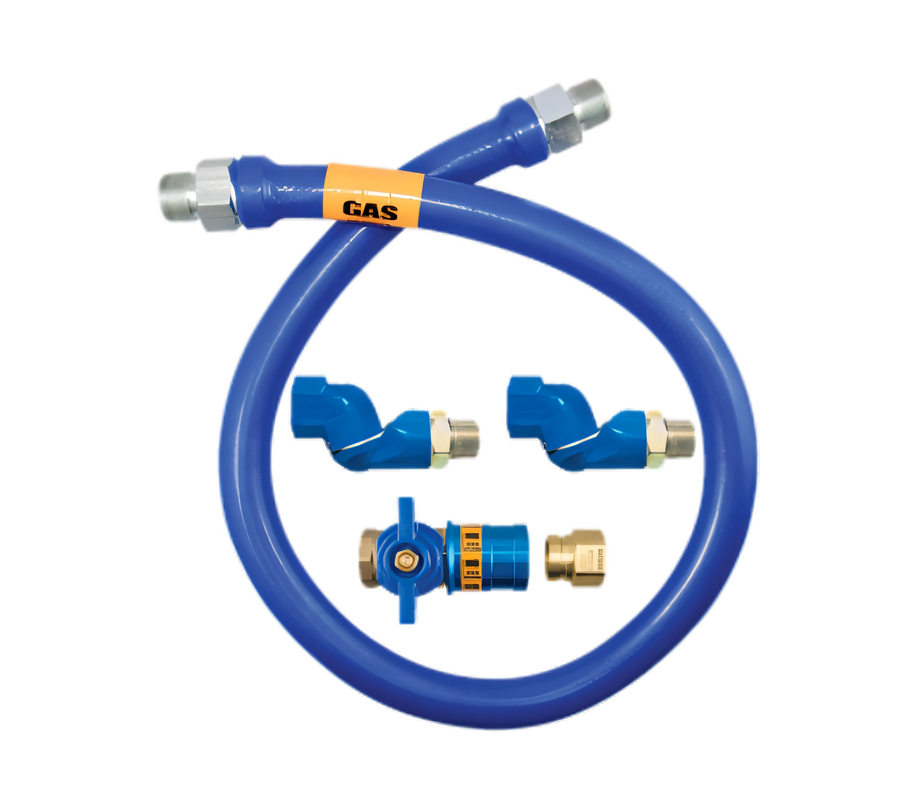

Dormont Blue Hose 3/4-Inch I.D. x 48-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik

Blue antimicrobial PVC-coated stainless steel, retail box, limited lifetime warranty

Built for moveable commercial gas equipment, this 48-inch hose combines 360° swivel action and quick-disconnect safety to simplify installation and reduce connector stress.

  • 3/4-inch inside diameter and 48-inch length for commercial moveable gas appliance connections.
  • Double Swivel MAX fittings provide 360° rotational movement to help reduce stress on the connector.
  • Safety Quik quick-disconnect valve adds one-handed push-to-connect convenience with thermal shutoff protection.
  • Annealed 304 stainless steel tubing and stainless steel braid are coated in blue antimicrobial PVC for durability.
  • Rated at 160,000 BTU/hr natural gas flow capacity at 0.5 inch WC pressure drop.
  • Limited lifetime warranty for added long-term value.

Product Weight:

7.28 lb

Double Swivel MAX Fittings

360° rotational end fittings help reduce connector stress and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass valve provides quick disconnect functionality with built-in thermal shutoff protection.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding supports demanding commercial use.

Blue Antimicrobial PVC Coating

The blue PVC coating is antimicrobial, melts at 350°F, and will not hold a flame.

Designed for Moveable Equipment

Engineered for commercial gas appliances mounted on casters or otherwise subject to movement.

Type Gas Connector Hose Assembly
Style Double Swivel MAX / Safety Quik
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Length 48 Inches
Inside Diameter 3/4 Inch
BTU 160,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 7.28 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The hose assembly includes the Dormont Blue Hose, Double Swivel MAX, and Safety Quik components.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
For the 3/4-inch I.D. 48-inch model, the natural gas flow rating is 160,000 BTU/hr at 0.5 inch WC pressure drop.
The thermal shutoff operates within a temperature range of 250°F to 300°F.
No. The documentation states that it is for indoor use only and not for temperatures below 32°F.
It is covered by a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
