Dormont Manufacturing

Dormont Blue Hose 48-Inch Moveable Gas Connector Hose Assembly, 3/4-Inch I.D., Double Swivel MAX with Safety Quik QDV

SKU: 1675BPCF2S48
GTIN: 662447046333
$470.60
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

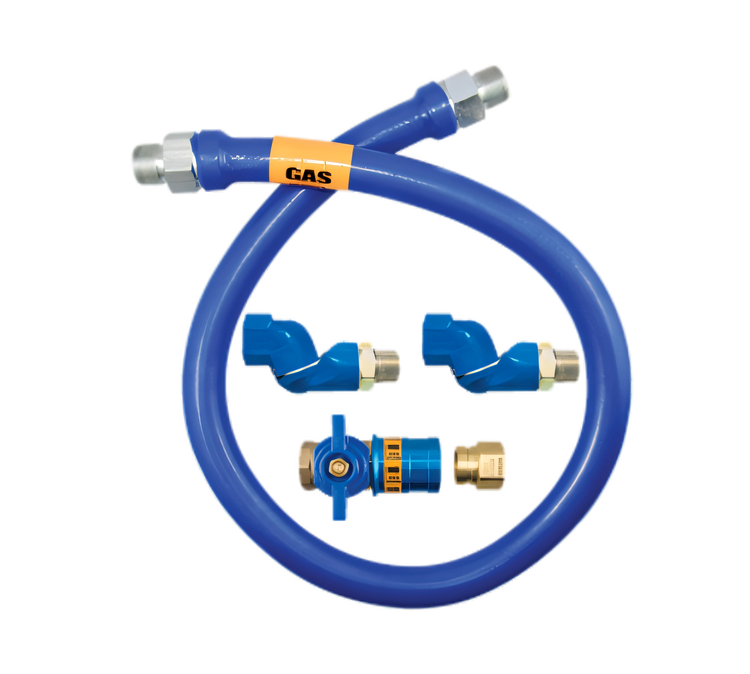

Dormont Blue Hose 48-Inch Moveable Gas Connector Hose Assembly, 3/4-Inch I.D., Double Swivel MAX with Safety Quik QDV

Blue antimicrobial PVC-coated stainless steel braid; 160,000 BTU/hr natural gas flow capacity

Built for moveable commercial gas equipment, this 48-inch hose assembly combines 360° swivel flexibility, a Safety Quik shutoff valve, and a 160,000 BTU/hr flow rating.

  • Designed for moveable commercial gas equipment in indoor kitchen environments.
  • 48-inch length with 3/4-inch inside diameter for flexible appliance positioning.
  • Double Swivel MAX fittings provide 360° rotation and help reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed shutoff protection.
  • Stainless steel braid with blue antimicrobial PVC coating helps protect the hose assembly.
  • Rated for 160,000 BTU/hr natural gas flow capacity and backed by a limited lifetime warranty.

Product Weight:

6.1 lb

Double Swivel MAX Ends

360° rotational end fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face push-to-connect valve with a brass body and full-port brass ball valve for safer, one-handed disconnect functionality.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for commercial durability.

Blue Antimicrobial PVC Coating

Blue coating helps protect the hose assembly and is designed not to hold a flame.

Flow Capacity

3/4-inch I.D. model is rated for 160,000 BTU/hr natural gas flow capacity at a 0.5-inch WC pressure drop.

Safety and Operating Limits

Thermal shutoff closes gas flow at 250°F to 300°F, and the assembly is for indoor use only.

Warranty Coverage

Backed by a limited lifetime warranty and guaranteed for the life of the original appliance to which it is connected.

Type Gas Connector Hose Assembly
Style Moveable
Material Stainless Steel
Finish Blue Antimicrobial PVC
Length 48 Inches
Inside Diameter 3/4 Inch
BTU 160,000 BTU/hr
Maximum Operating Pressure 1/2 PSI
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The hose assembly includes The Dormont Blue Hose, Double Swivel MAX fittings, and the Safety Quik quick-disconnect valve.
The 3/4-inch I.D. model is rated for 160,000 BTU/hr natural gas flow capacity at a 0.5-inch WC pressure drop.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
No. The documentation says it is for indoor use only.
It should not be used in temperatures below 32°F (0°C), and the Safety Quik valve thermal shutoff activates between 250°F and 300°F.
It comes with a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
