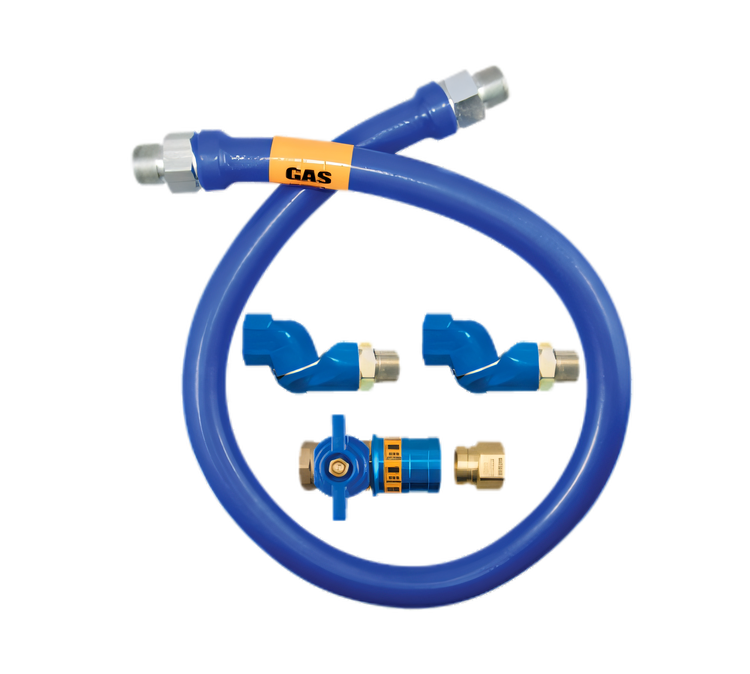

Dormont Blue Hose 3/4 Inch x 24 Inch Moveable Gas Connector Hose Assembly with Safety Quik and Double Swivel MAX

Blue antimicrobial PVC-coated stainless steel; 205,000 BTU/hr minimum flow capacity

Built for moveable gas equipment, this 3/4-inch by 24-inch hose assembly combines 360° swivel action and a Safety Quik shutoff for safer appliance positioning.

  • 24-inch hose assembly with 3/4-inch inside diameter for moveable gas applications.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends to reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed connection and thermal shutoff protection.
  • 304 stainless steel tubing and stainless braid are protected by a blue antimicrobial PVC coating.
  • Rated for 205,000 BTU/hr minimum flow capacity.
  • Backed by a limited lifetime warranty for the original appliance connection.

Product Weight:

4.9 lb

Double Swivel MAX End Fittings

360° rotational end fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a brass body and thermal shutoff for safer appliance connection and disconnection.

Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless wire braid provides durable moveable-gas connector construction.

Blue Antimicrobial PVC Coating

Blue antimicrobial PVC coating adds protection and is designed to melt at 350°F without holding a flame.

High Flow Capacity

Rated at 205,000 BTU/hr minimum flow capacity for natural gas applications at the listed pressure drop.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which the connector is connected.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / Safety Quik
Length 24 Inches
Inside Diameter 3/4 Inch
Capacity 205,000 BTU/hr
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Shipping Weight 4.9 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It provides quick-disconnect functionality and includes a thermal shutoff that stops gas flow within the stated temperature range if the appliance is disconnected.
The 3/4-inch, 24-inch model is rated at 205,000 BTU/hr minimum flow capacity.
The hose uses annealed 304 stainless steel tubing with multi-strand stainless wire braid and a blue antimicrobial PVC coating.
Yes. The cut sheet states that a restraining device is required for all moveable gas equipment.
The series is shown in 1/2-inch, 3/4-inch, and 1-inch inside diameters with 24-inch, 36-inch, 48-inch, 60-inch, and 72-inch lengths.
Yes. The cut sheet states that it is for indoor use only and should not be used in temperatures below 32°F.
