Dormont Manufacturing

Dormont Blue Hose 36 Inch Moveable Gas Connector Kit with Safety Quik Valve, Swivel MAX, and Restraining Cable

SKU: 1650KITCFS36
GTIN: 662447047101
$326.36
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 36 Inch Moveable Gas Connector Kit with Safety Quik Valve, Swivel MAX, and Restraining Cable

1/2 Inch Inside Diameter, Blue Antimicrobial PVC-Coated Stainless Steel Braid

Built for moveable commercial cooking equipment, this kit combines a Blue Hose, Safety Quik valve, Swivel MAX, and restraining cable to help reduce hose stress and support safer gas connections.

  • Designed for caster-mounted commercial cooking equipment that moves for service, cleaning, and positioning.
  • 36-inch long, 1/2-inch ID Blue Hose construction with stainless steel braid.
  • Blue antimicrobial PVC coating helps inhibit bacteria, mold, and mildew.
  • Safety Quik quick-disconnect valve helps prevent gas from being turned on while disconnected.
  • Swivel MAX reduces connector stress and can help equipment sit closer to the wall.
  • Coiled restraining cable with hardware helps protect the gas connection; rated for 72,000 BTU/hr minimum flow capacity.

Product Weight:

4.02 lb

Designed for Moveable Equipment

Engineered for caster-mounted commercial cooking equipment that is regularly moved for service, repositioning, or cleaning.

Antimicrobial PVC Coating

Blue protective coating helps inhibit the growth of bacteria, mold, and mildew on the gas connector.

Stainless Steel Braid and Tubing

Flexible corrugated stainless steel construction with a tight-weave braid helps resist stretching as equipment is moved.

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose and helps make installation easier.

Safety Quik Quick-Disconnect Valve

Helps prevent gas from being turned on while the appliance is disconnected and includes thermal shut-off above 350°F.

Swivel MAX

Reduces stress on the connector and allows the hose to be positioned closer to the wall for more aisle space.

Restraining Cable with Hardware

Helps prevent strain from being transmitted to the connector and is provided 1 foot shorter than the gas connector.

Minimum Flow Capacity

Rated at 72,000 BTU/hr minimum flow capacity.

Limited Lifetime Warranty

Covered by a limited lifetime warranty as connector for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Kit
Style Safety Quik / Single Swivel MAX
Inside Diameter 1/2 Inch
Length 36 Inches
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 72,000 BTU/hr
Restraining Device Included
Shipping Weight 4.02 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

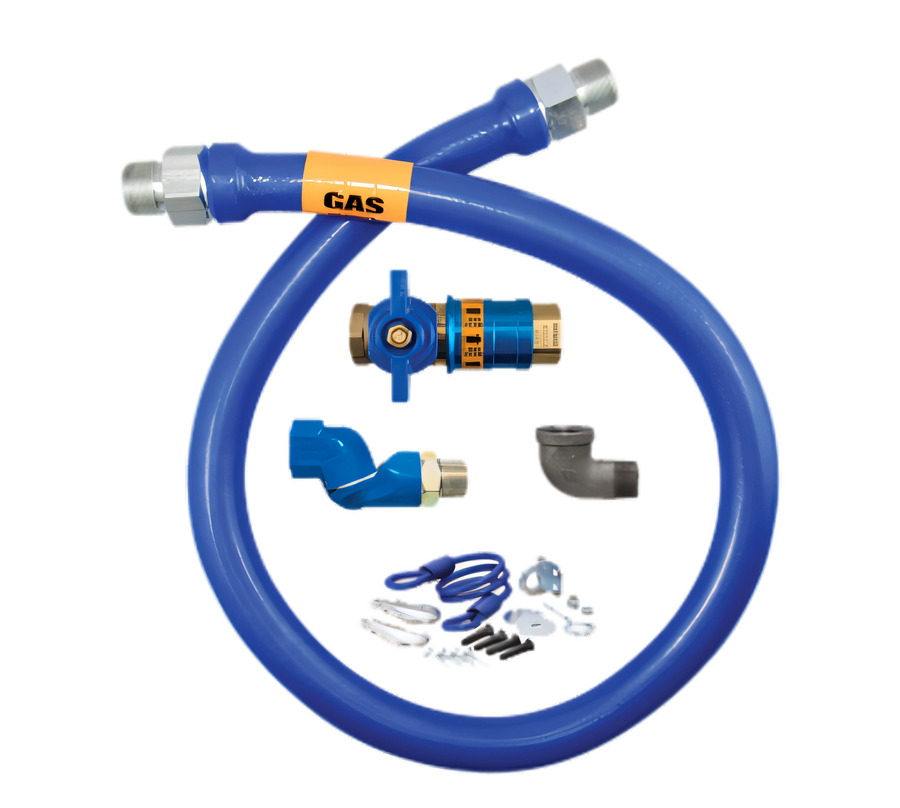

The kit includes a 36-inch Blue Hose with 1/2-inch inside diameter, one Safety Quik quick-disconnect valve, one Swivel MAX, and a coiled restraining cable with hardware.
It is specifically engineered for caster-mounted commercial cooking equipment that is moved regularly for service, positioning, or cleaning.
The connector has a 72,000 BTU/hr minimum flow capacity.
The blue antimicrobial PVC coating helps inhibit bacteria, mold, and mildew on the gas connector.
It carries a limited lifetime warranty as a connector and is guaranteed for the life of the original appliance to which it is connected.
