Dormont Manufacturing

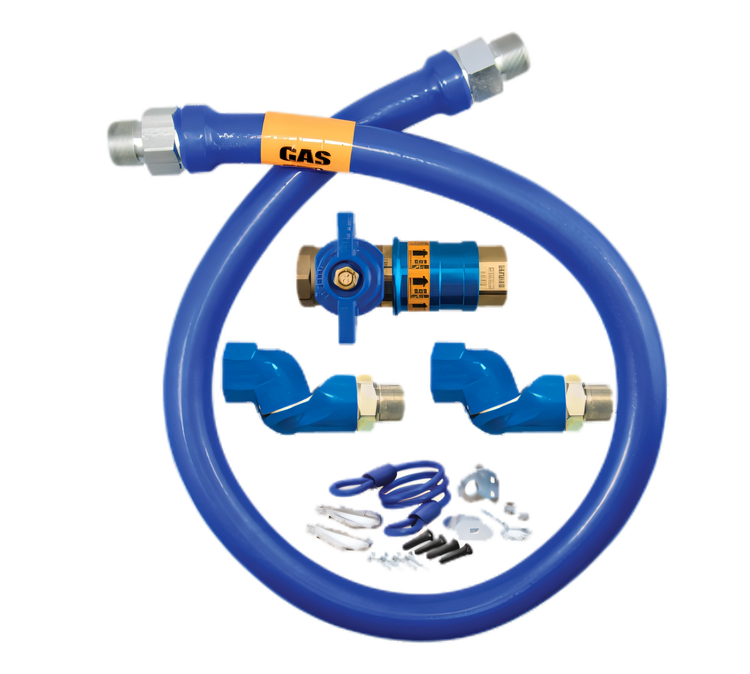

Dormont Blue Hose Deluxe Moveable Gas Connector Kit, 1/2 Inch I.D. x 60 Inch, with Safety Quik Valve and Restraining Device

SKU: 1650KITCF2S60
GTIN: 662447050262
$448.09
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose Deluxe Moveable Gas Connector Kit, 1/2 Inch I.D. x 60 Inch, with Safety Quik Valve and Restraining Device

Double Swivel MAX fittings, stainless steel braid, blue antimicrobial PVC coating

A complete safety-focused gas connector kit for moveable commercial equipment, combining flexible swivel movement, quick-disconnect protection, and a restraining system in one package.

  • 1/2-inch inside diameter and 60-inch length for moveable commercial gas appliances.
  • Includes a Safety Quik quick-disconnect valve for one-handed disconnect and shutoff protection.
  • Double Swivel MAX fittings provide 360° movement to reduce connector stress and help appliances sit closer to the wall.
  • Built with 304 stainless steel tubing, stainless steel braid, and a blue antimicrobial PVC coating.
  • Includes a PVC-coated restraining cable and mounting hardware required for moveable equipment.
  • Rated for 54,000 BTU/hr natural gas flow capacity and backed by a limited lifetime warranty.

Product Weight:

5.08 lb

Double Swivel MAX Fittings

360° rotational end fittings at both ends help reduce stress on the connector and improve appliance placement flexibility.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a brass body and full-port brass ball valve for safer gas connection and disconnection.

Thermal Shutoff Protection

Designed to shut off gas flow within a 250°F to 300°F temperature range in the event of excessive heat.

304 Stainless Steel Construction

Annealed stainless steel tubing with multi-strand stainless steel wire braid provides flexible, durable hose construction.

Blue Antimicrobial PVC Coating

Blue PVC coating adds protection and is designed not to hold a flame; it melts at 350°F.

Included Restraining Device

PVC-coated steel multi-strand restraining cable with mounting hardware is included for moveable equipment installations.

Moveable Equipment Design

Engineered for commercial moveable applications where equipment may be mounted on casters or otherwise subject to movement.

Limited Lifetime Warranty

Covered for the life of the original appliance to which it is connected.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1/2 Inch
Length 60 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 54,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Double Swivel MAX fittings, Safety Quik quick-disconnect valve, restraining device, and mounting hardware.
This model has a 1/2-inch inside diameter and is 60 inches long.
The 1/2-inch model is rated for 54,000 BTU/hr natural gas flow capacity.
Yes. The deluxe kit includes a PVC-coated steel restraining cable and mounting hardware.
It includes a Safety Quik quick-disconnect valve with thermal shutoff protection and a flat-face, push-to-connect design.
Yes. It is designed for commercial moveable equipment and uses swivel fittings to reduce stress on the connector.
