Dormont Manufacturing

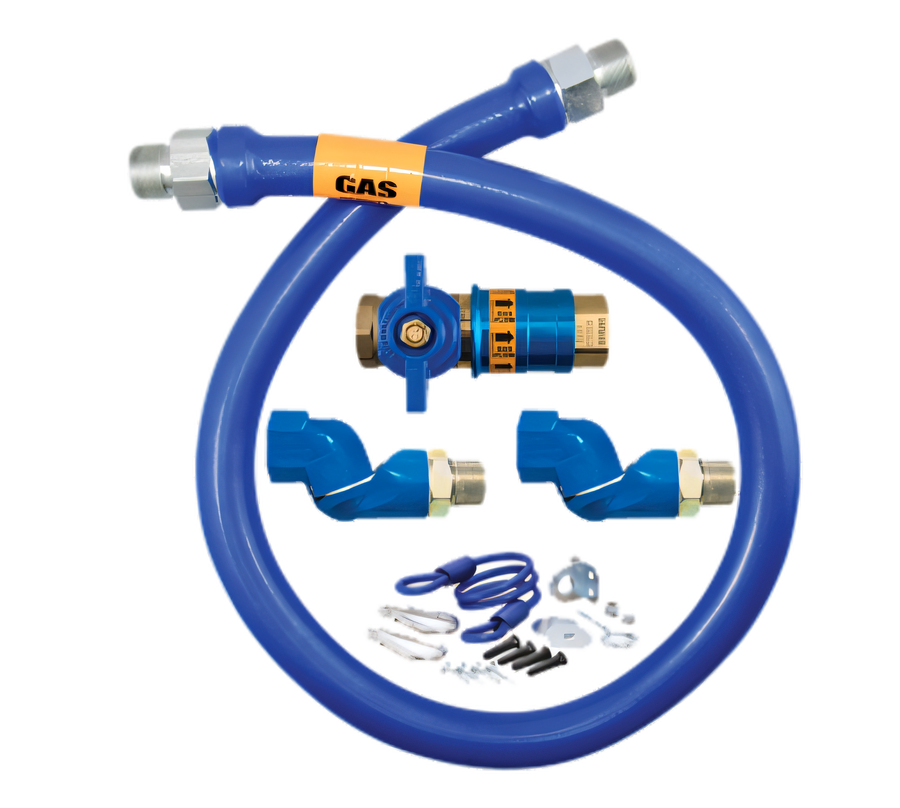

Dormont Blue Hose 48-Inch 1/2-Inch I.D. Deluxe Moveable Gas Connector Kit with Double Swivel MAX and Safety Quik

SKU: 1650KITCF2S48
GTIN: 662447031544
$413.82
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 48-Inch 1/2-Inch I.D. Deluxe Moveable Gas Connector Kit with Double Swivel MAX and Safety Quik

Includes restraining device; 60,000 BTU/hr minimum flow capacity

Designed for moveable commercial gas equipment, this deluxe connector kit combines flexible 360° movement, a quick-disconnect safety valve, and an included restraining device for safer installation.

  • 48-inch-long, 1/2-inch inside diameter moveable gas connector kit
  • Double Swivel MAX fittings provide 360° rotational movement and help reduce connector stress
  • Safety Quik quick-disconnect valve adds one-handed disconnect capability and thermal shutoff protection
  • Includes PVC-coated restraining cable and mounting hardware required for moveable gas equipment
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating
  • Rated for 60,000 BTU/hr minimum flow capacity on natural gas
  • Made in the USA and backed by a limited lifetime warranty

Product Weight:

4.78 lb

Double Swivel MAX Rotational Fittings

360° rotational end fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass valve provides fast disconnection and added safety during equipment movement.

Thermal Shut-Off Protection

The safety valve shuts off gas flow within a temperature range of 250°F to 300°F.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid supports durability in commercial use.

Blue Antimicrobial PVC Coating

Blue PVC coating helps inhibit microbial growth, will not hold a flame, and melts at 350°F.

Included Restraining Device

PVC-coated steel multi-strand cable and mounting hardware are included for moveable equipment installations.

Natural Gas Flow Capacity

Sized for a minimum flow capacity of 60,000 BTU/hr at a 0.5 inch WC pressure drop.

Made in the USA

Manufactured in the USA under an ISO qualified production process.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Length 48 Inches
Inside Diameter 1/2 Inch
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
BTU 60,000 BTU/hr
Gas Type Natural Gas
Shipping Weight 4.78 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Double Swivel MAX fittings, a Safety Quik quick-disconnect valve, and a PVC-coated restraining device with mounting hardware.
This model has a 1/2-inch inside diameter and is 48 inches long.
It is rated for natural gas applications with a 60,000 BTU/hr minimum flow capacity.
Yes. The Safety Quik valve includes a thermal shutoff that stops gas flow within a 250°F to 300°F temperature range.
Yes. The kit includes a PVC-coated steel restraining cable and the necessary mounting hardware.
The product is manufactured in the USA.
