Dormont Manufacturing

Dormont Blue Hose 1/2 Inch I.D. 24 Inch Moveable Gas Connector Deluxe Kit with Double Swivel MAX, Safety Quik, and Restraining Device

SKU: 1650KITCF2S24
GTIN: 662447055205
$328.18
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

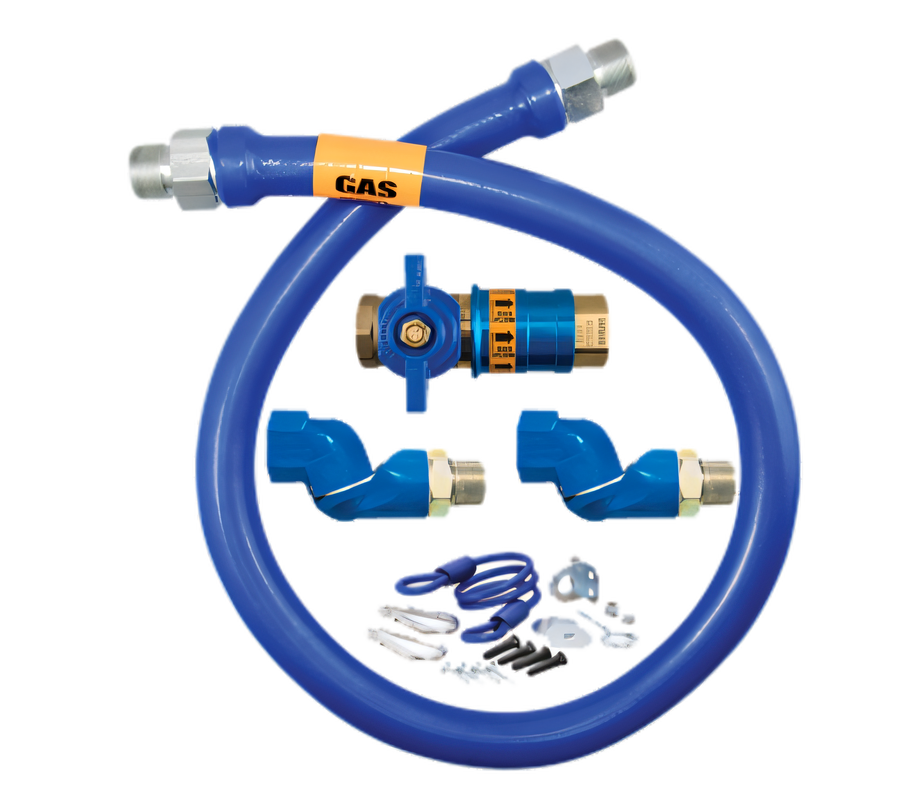

Dormont Blue Hose 1/2 Inch I.D. 24 Inch Moveable Gas Connector Deluxe Kit with Double Swivel MAX, Safety Quik, and Restraining Device

Blue antimicrobial PVC-coated stainless steel; 77,000 BTU/hr natural gas flow capacity

Built for moveable commercial appliances, this deluxe kit combines a flexible stainless steel hose, one-handed safety disconnect, swivel fittings, and a restraining cable in one complete package.

  • Complete deluxe moveable gas connector kit with hose, quick-disconnect valve, swivel fittings, and restraining device
  • 1/2-inch inside diameter and 24-inch length for compact appliance hookups
  • 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating
  • Double Swivel MAX fittings provide 360° rotation to reduce connector stress and improve appliance placement
  • Safety Quik valve adds one-handed disconnect functionality and thermal shutoff protection
  • Rated for 77,000 BTU/hr minimum natural gas flow capacity
  • Limited lifetime warranty coverage

Product Weight:

3.94 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing provides a durable, flexible connector for commercial moveable equipment.

Stainless Steel Braid

Multi-strand stainless steel wire braiding adds strength and helps protect the hose assembly.

Blue Antimicrobial PVC Coating

The hose is covered with blue antimicrobial PVC coating that melts at 350°F and will not hold a flame.

Double Swivel MAX Fittings

360° rotational end fittings at both ends reduce connector stress and let appliances be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect design supports one-handed connection and includes a full-port brass ball valve with thermal shutoff.

Included Restraining Device

The kit includes a PVC-coated steel multi-strand restraining cable with mounting hardware for moveable gas equipment.

Natural Gas Flow Capacity

The 1/2-inch I.D. model is rated at 77,000 BTU/hr minimum flow capacity at a 0.5 inch W.C. pressure drop.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1/2 Inch
Length 24 Inches
BTU 77,000 BTU/hr
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Country Of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose assembly, Double Swivel MAX fittings, Safety Quik quick-disconnect valve, and a restraining device with mounting hardware.
This model has a 1/2-inch inside diameter and is 24 inches long.
The 1/2-inch I.D. model is rated for 77,000 BTU/hr minimum flow capacity at a 0.5 inch W.C. pressure drop.
It provides one-handed quick-disconnect functionality and includes a thermal shutoff that closes gas flow within 250°F to 300°F.
Yes. The product is designed for moveable commercial gas equipment and includes a restraining device as required for caster-mounted applications.
