Dormont Manufacturing

Dormont Blue Hose 1/2 Inch ID x 60 Inch Double Swivel MAX Moveable Gas Connector Kit with Safety-Set

SKU: 1650KIT2S60PS
$476.92
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

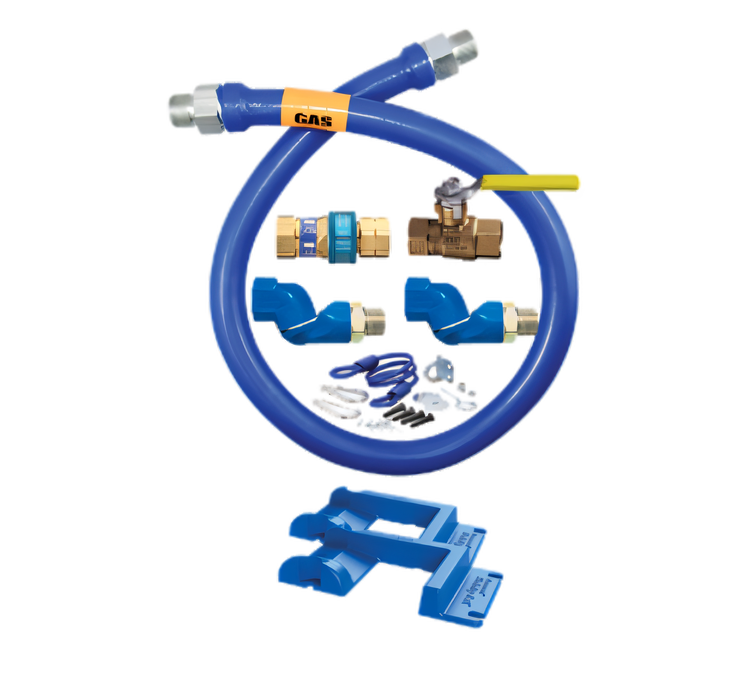

Dormont Blue Hose 1/2 Inch ID x 60 Inch Double Swivel MAX Moveable Gas Connector Kit with Safety-Set

Includes SnapFast Quick-Disconnect, Full Port Valve, Stainless Steel Braid

Built for caster-mounted commercial cooking equipment, this complete gas connector kit combines flexible movement control, quick-disconnect safety, and wheel placement stability in one package.

  • 1/2 inch inside diameter and 60 inch length for flexible equipment positioning.
  • Double Swivel MAX fittings help reduce connector stress and let equipment sit closer to the wall.
  • Blue antimicrobial PVC coating over stainless steel braid helps inhibit bacteria, mold, and mildew.
  • Includes SnapFast quick-disconnect, full port valve, restraining cable, and Safety-Set wheel placement system.
  • Designed specifically for caster-mounted commercial cooking equipment moved for service, positioning, or cleaning.
  • Backed by a limited lifetime warranty as the connector for the original appliance.

Product Weight:

6.23 lb

Double Swivel MAX Design

Two swivel fittings help reduce stress on the hose and allow the connector to be positioned closer to the wall.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shut-off when internal temperature exceeds 350°F (177°C).

Full Port Gas Valve

Included valve provides full-flow shutoff control for the gas connection.

Safety-Set Wheel Placement System

Helps keep cooking equipment in its design-specified location and supports fast installation with adhesive foam tape or thumbscrews.

Restraining Cable

Helps prevent strain from being transmitted to the connector and is provided 1 foot shorter than the gas connector.

Stainless Steel Tubing

Heavy-duty, flexible, corrugated stainless steel tubing built for commercial kitchen use.

Stainless Steel Braid

Tight-weave braid helps prevent corrugations from stretching as equipment is moved.

Antimicrobial Blue PVC Coating

Protective coating helps inhibit the growth of bacteria, mold, and mildew on the gas connector.

Stress Guard Technology

Rotation technology reduces stress on both ends of the hose during movement.

Type Moveable Gas Connector Kit
Style Double Swivel MAX
Inside Diameter 1/2 Inch
Length 60 Inches
Material Stainless Steel
Finish Blue Antimicrobial PVC Coating
BTU 54,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It adds the Safety-Set wheel placement system to the part number.
It has a 1/2 inch inside diameter and is 60 inches long.
The kit includes a SnapFast quick-disconnect, two Swivel MAX fittings, a full port valve, a restraining cable, and Safety-Set hardware.
It is specifically engineered for caster-mounted commercial cooking equipment that is moved for service, positioning, or cleaning.
It includes a limited lifetime warranty as the connector for the life of the original appliance.
