Dormont Manufacturing

Dormont Blue Hose 1/2 Inch x 24 Inch Deluxe Moveable Gas Connector Kit with Double Swivel MAX and SnapFast Quick-Disconnect

SKU: 1650KIT2S24
GTIN: 662447024003
$347.11
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

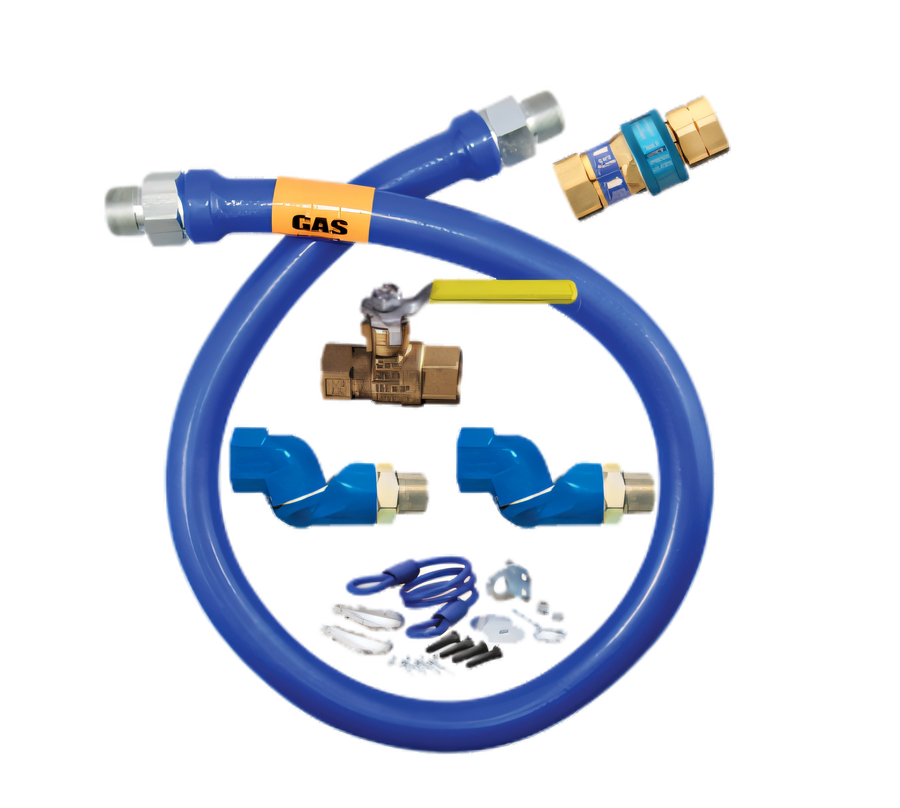

Dormont Blue Hose 1/2 Inch x 24 Inch Deluxe Moveable Gas Connector Kit with Double Swivel MAX and SnapFast Quick-Disconnect

Includes restraining device and full-port valve; stainless steel braid with blue antimicrobial PVC coating

Designed for moveable commercial gas appliances, this deluxe kit combines flexible 360° movement, quick-disconnect safety, and an included restraining device to help you position equipment with confidence.

  • 1/2" inside diameter and 24" length for compact moveable appliance connections.
  • Double Swivel MAX fittings provide 360° rotation at both ends to reduce connector stress.
  • SnapFast quick-disconnect offers one-handed operation with thermal shut-off above 350°F.
  • Includes a restraining device, full-port valve, and mounting hardware for a complete installation.
  • Stainless steel construction with a blue antimicrobial PVC coating and stainless steel braid.
  • 77,000 BTU/hr minimum natural gas flow capacity; limited lifetime warranty; made in USA.

Product Weight:

3.78 lb

Double Swivel MAX Rotational Fittings

360° rotational end fittings at both ends help reduce hose stress and allow appliances to sit closer to the wall.

SnapFast One-Handed Quick-Disconnect

Brass-body quick-disconnect allows fast one-handed separation and automatically shuts off gas when internal temperature exceeds 350°F.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides flexible, durable performance.

Blue Antimicrobial PVC Coating

Blue PVC coating adds antimicrobial protection and is designed to melt at 350°F without holding a flame.

Complete Safety Kit Components

Includes a PVC-coated steel restraining cable with mounting hardware plus a full-port brass valve.

Built for Moveable Gas Equipment

Designed for commercial moveable appliances that require a restraining device for safe installation and operation.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 1/2 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
BTU 77,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 3.78 lb.

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Blue Hose, Double Swivel MAX fittings, SnapFast quick-disconnect, restraining device, full-port valve, and mounting hardware.
It has a 1/2" inside diameter and is 24" long.
This 1/2" x 24" model has a 77,000 BTU/hr minimum natural gas flow capacity at a 0.5 inch W.C. pressure drop.
SnapFast is a one-handed quick-disconnect fitting with thermal shut-off that closes the gas flow when internal temperature exceeds 350°F.
It is for indoor use only, should not be used in temperatures below 32°F, and has a maximum operating pressure of 1/2 psi.
