Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1/2 Inch I.D. x 60 Inch

SKU: 1650BPV60BXFT
GTIN: 662447002131
$214.90
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

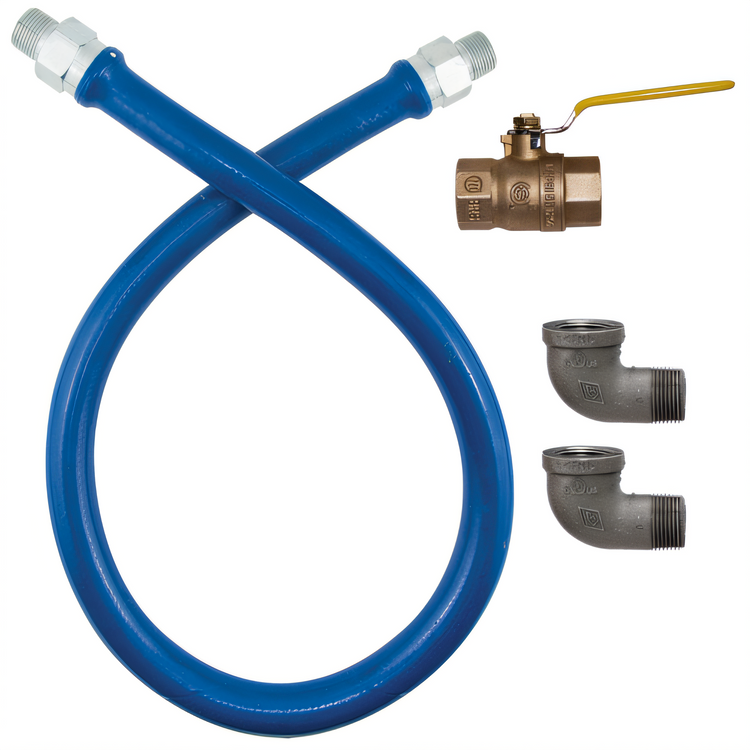

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1/2 Inch I.D. x 60 Inch

Blue antimicrobial PVC-coated 304 stainless steel with included elbows and full-port valve

Built for food trucks and other moveable equipment, this connector kit pairs durable stainless steel construction with a blue antimicrobial PVC coating and included fittings for a ready-to-install solution.

  • 60-inch food truck grade gas connector kit with 1/2-inch inside diameter.
  • 93,000 BTU/hr natural gas flow capacity for moveable equipment applications.
  • 304 stainless steel corrugated tube with stainless steel braid for durable flexibility.
  • Blue antimicrobial UV PVC coating adds protection, visibility, and flame resistance.
  • Stress Guard 360° rotational end fittings help reduce strain during movement.
  • Includes two 1/2-inch 90° elbows and a full-port valve; fulfills IFC 2018 and IFC 2021 requirements.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

4.9 lb

Food Truck Gas Connector Kit

Designed for moveable equipment and food truck applications where the gas connection may be moved regularly for cleaning and repair.

304 Stainless Steel Tubing

Annealed corrugated tubing provides durable, flexible gas service.

Stainless Steel Wire Braid

A multi-strand stainless steel braid adds strength and protection to the hose assembly.

Blue Antimicrobial UV PVC Coating

The blue PVC coating helps protect the hose, will not hold a flame, and melts at 350°F.

Stress Guard Rotational Ends

360° rotational end fittings at both ends help reduce stress on the connector.

Carbon Steel End Fittings

End fittings are carbon steel with a zinc trivalent chromate finish.

Included Installation Hardware

Kit includes two 1/2-inch 90° elbows and a full-port valve.

Code Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections and meets ANSI Z21.69/CSA 6.16 and ANSI Z223.1/NFPA 54 requirements.

Operating Limits

Rated for -10°F to 350°F with a maximum operating pressure of 1/2 psi.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Gas Connector Kit
Style Food Truck Grade
Inside Diameter 1/2 Inch
Length 60 Inches
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial UV PVC Coated
BTU 93,000 BTU/hr
Gas Type Natural Gas
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 4.9 Pounds

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1/2-inch inside diameter and a 60-inch length.
The kit includes two 1/2-inch 90° elbows and a full-port valve.
It uses annealed 304 stainless steel tubing with a multi-strand stainless steel wire braid and a blue antimicrobial UV PVC coating.
The 1/2-inch by 60-inch size is rated at 93,000 BTU/hr for natural gas.
Yes. It fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections and meets ANSI Z21.69/CSA 6.16 and ANSI Z223.1/NFPA 54 requirements.
It includes a limited lifetime warranty for the life of the original appliance.
