Dormont Manufacturing

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1/2-Inch I.D., 48-Inch Long

SKU: 1650BPV48BXFT
GTIN: 662447002117
$183.65
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

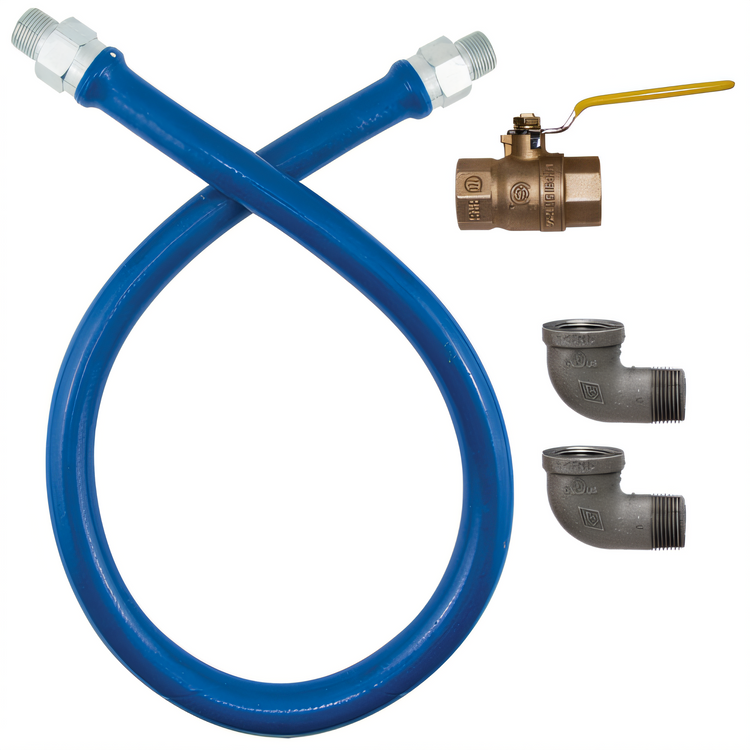

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1/2-Inch I.D., 48-Inch Long

304 Stainless Steel, Antimicrobial PVC Coating, Includes Full Port Valve and 90° Elbows

Built for food trucks and other moveable gas appliances, this 48-inch connector kit combines durable stainless steel construction, a flame-resistant antimicrobial coating, and a 106,000 BTU/hr flow rating.

  • 48-inch food truck grade gas connector kit with 1/2-inch inside diameter.
  • 304 stainless steel tubing with stainless steel wire braiding for commercial durability.
  • Blue antimicrobial, UV-resistant PVC coating helps protect the hose and resists flame.
  • Includes two 1/2-inch 90° elbows and a full port valve for installation.
  • Rated for up to 106,000 BTU/hr at a 0.5-inch W.C. pressure drop.
  • Designed for moveable and caster-mounted equipment; restraining device required on caster-mounted units.
  • Meets IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

4.53 lb

Moveable-Grade Design

Designed for food trucks, caster-mounted equipment, and other appliances moved regularly for cleaning or repair.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.

Blue Antimicrobial PVC Coating

UV-resistant coating melts at 350°F and will not hold a flame.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the hose.

Included Kit Components

Includes two 1/2-inch 90° elbows and a full port valve.

High Flow Capacity

Rated for 106,000 BTU/hr at a 0.5-inch W.C. pressure drop.

Temperature Range

Operates from -10°F to 350°F.

Code-Related Application

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections; restraining device required on caster-mounted equipment.

Type Gas Connector Kit
Style Food Truck Grade
Inside Diameter 1/2 Inch
Length 48 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
Color Blue
BTU 106,000 BTU/hr
Temperature Range -10°F to 350°F
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 4.53 Pounds

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This model is 48 inches long with a 1/2-inch inside diameter.
The kit includes two 1/2-inch 90° elbows and a full port valve.
It is rated for 106,000 BTU/hr at a 0.5-inch W.C. pressure drop.
The connector is rated for -10°F to 350°F.
Yes. It is designed for moveable equipment and fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections. A restraining device is required on caster-mounted equipment.
It uses annealed 304 stainless steel tubing, multi-strand stainless steel wire braiding, and a blue antimicrobial UV PVC coating.
