Dormont Manufacturing

Dormont Blue Hose Food Truck Gas Connector Kit, 1/2 Inch ID x 24 Inch, Braided Stainless Steel with Valve and Elbows

SKU: 1650BPV24BXFT
GTIN: 662447300688
$153.43
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

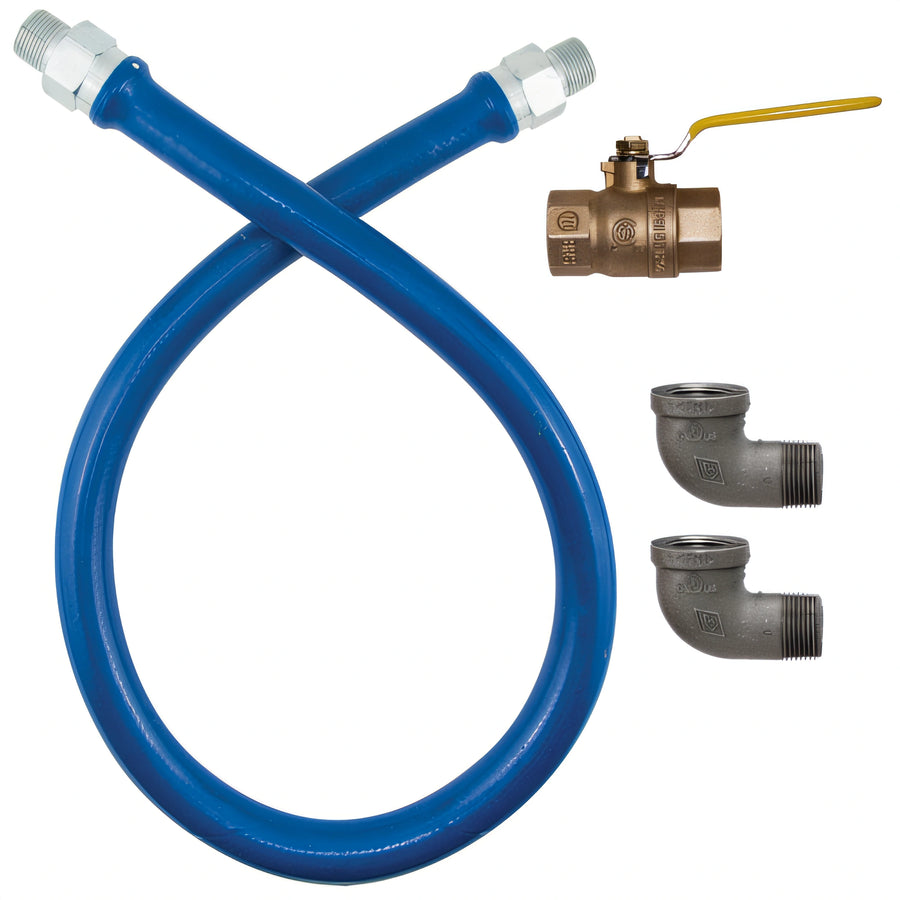

Dormont Blue Hose Food Truck Gas Connector Kit, 1/2 Inch ID x 24 Inch, Braided Stainless Steel with Valve and Elbows

Moveable-Grade, Blue Antimicrobial UV PVC-Coated, 150,000 BTU/hr

Built for food trucks and other moveable equipment, this complete 1/2-inch gas connector kit combines a flexible braided stainless steel hose, rotational fittings, and a full-port valve for reliable service.

  • 1/2 inch ID x 24 inch moveable-grade connector kit for food trucks and caster-mounted equipment.
  • 304 stainless steel tubing with stainless steel wire braid for flexible, durable gas service.
  • Blue antimicrobial UV PVC coating adds visibility and heat resistance.
  • Stress Guard 360° rotational end fittings help reduce strain at both ends of the hose.
  • Includes two 90° elbows, two shoulder nipples, and a full port valve for a complete hookup.
  • Rated for 150,000 BTU/hr and -10°F to 350°F operating temperatures, with IFC 2018/2021 food truck compliance.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

3.79 lb

Moveable-Grade Design

Designed for food trucks and other gas equipment that is mounted on casters or moved regularly for cleaning and repair.

Stress Guard Rotation

360° rotational end fittings at both ends help reduce stress on the connector.

Blue Antimicrobial UV PVC Coating

Durable blue coating is antimicrobial, UV resistant, and melts at 350°F without holding a flame.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding provides flexibility and strength.

Carbon Steel End Fittings

Carbon steel end fittings feature a zinc trivalent chromate finish for added corrosion resistance.

Complete Kit With Valve And Elbows

Includes (2) 1/2-inch 90° elbows, (2) shoulder nipples, and a full port valve.

Code And Performance Ratings

Rated at 150,000 BTU/hr, operates from -10°F to 350°F, and fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Type Food Truck Gas Connector Kit
Style Braided
Gas Connection Size 1/2 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial UV PVC Coating
BTU 150,000 BTU/hr
Pressure Rating 1/2 PSI
Temperature Range -10°F to 350°F
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 3.79 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The kit includes (2) 1/2-inch 90° elbows, (2) shoulder nipples, and a full port valve, along with the Blue Hose connector.
It is designed for food trucks and other moveable or caster-mounted gas equipment that is moved regularly.
The hose is rated for operating temperatures from -10°F to 350°F.
This 1/2-inch by 24-inch model is rated for 150,000 BTU/hr.
Yes. It fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.
Yes. When used on caster-mounted equipment, ANSI Z21.69/CSA 6.16 calls for a restraining device to prevent strain on the connector.
