Dormont Blue Hose 24 Inch 1/2 Inch ID Moveable Gas Connector Hose Basic Kit with Swivel MAX and SnapFast Quick-Disconnect

SKU: 1650BPQSR24
GTIN: 662447053485
$261.47
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 24 Inch 1/2 Inch ID Moveable Gas Connector Hose Basic Kit with Swivel MAX and SnapFast Quick-Disconnect

Blue antimicrobial PVC coating, stainless steel braid, and restraining cable included

Built for moveable commercial gas equipment, this 24-inch basic kit combines stainless steel durability, 360° swivel freedom, one-handed quick-disconnect convenience, and included restraining protection.

  • 24-inch, 1/2-inch I.D. moveable gas connector hose basic kit for commercial equipment
  • Annealed stainless steel tubing and stainless steel braid with blue antimicrobial PVC coating
  • Swivel MAX 360° rotational fitting helps reduce connector stress and save aisle space
  • SnapFast one-handed quick-disconnect includes thermal shut-off protection above 350°F
  • Includes a coiled restraining cable with hardware and street elbow
  • Rated for 81,000 BTU/hr minimum flow capacity and limited lifetime warranty

Product Weight:

2.86 lb

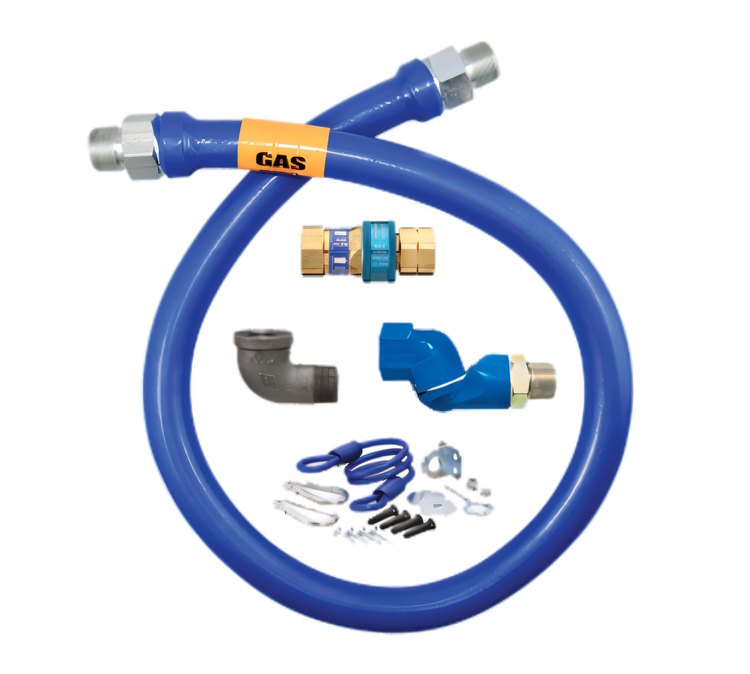

Basic Kit Contents

Includes the Blue Hose, Swivel MAX, SnapFast quick-disconnect, restraining device, and street elbow.

Swivel MAX 360° Movement

Rotational end fitting reduces stress on the connector and helps the appliance sit closer to the wall.

SnapFast Thermal Shut-Off

One-handed quick-disconnect fitting automatically shuts off gas when internal temperature exceeds 350°F.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Protective blue coating melts at 350°F and will not hold a flame.

81,000 BTU/hr Flow Capacity

24-inch, 1/2-inch I.D. configuration is rated for 81,000 BTU/hr minimum flow capacity.

Operating Limits

For indoor use only; not for temperatures below 32°F and maximum operating pressure is 1/2 psi.

Type Moveable Gas Connector Hose Assembly
Style Single Swivel
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Inside Diameter 1/2 Inch
Hose Length 24 Inches
BTU 81,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The basic kit includes the Blue Hose, Swivel MAX, SnapFast, restraining device, and street elbow.
Yes. The SnapFast fitting automatically shuts off gas when the internal temperature exceeds 350°F (177°C).
The 24-inch, 1/2-inch I.D. model is rated at 81,000 BTU/hr minimum flow capacity.
Yes. This model includes a coiled restraining cable with hardware, and the documentation states a restraining device is required for all moveable gas equipment.
No. The documentation states it is for indoor use only and should not be used in temperatures below 32°F (0°C).
It comes with a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
