Dormont Manufacturing

Dormont Blue Hose 1/2" ID x 36" Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Swivel MAX

SKU: 1650BPQS36BX
$247.03
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

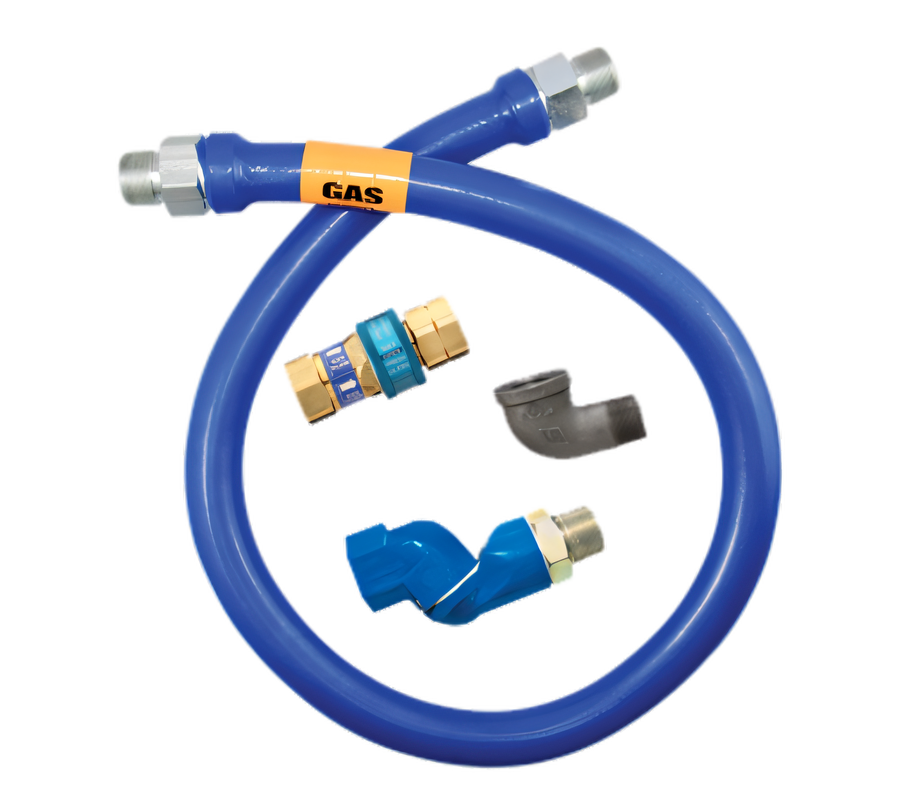

Dormont Blue Hose 1/2" ID x 36" Moveable Gas Connector Hose Assembly with SnapFast Quick-Disconnect and Swivel MAX

1/2" I.D., 36" Length, Stainless Steel Braid, Blue Antimicrobial PVC

Built for moveable commercial gas equipment, this hose assembly combines 360° swivel movement with a one-handed quick disconnect for safer, easier appliance positioning.

  • 1/2" inside diameter and 36" length for moveable commercial gas appliance connections.
  • Swivel MAX fitting provides 360° rotation to reduce connector stress and help equipment sit closer to the wall.
  • SnapFast one-handed quick-disconnect includes thermal shut-off above 350°F (177°C).
  • Annealed stainless steel tubing with multi-strand stainless steel braid and blue antimicrobial PVC coating.
  • Includes a street elbow and ships packaged in a retail box.
  • Limited lifetime warranty and made in the USA.

Product Weight:

3.8 lb

Swivel MAX 360° Rotation

Multi-plane fitting allows full rotational movement to reduce stress on the connector and improve appliance positioning.

SnapFast One-Handed Quick-Disconnect

Quick-disconnect fitting lets operators disconnect with one hand for faster, easier equipment service.

Thermal Shut-Off Protection

Automatically shuts off gas when internal temperature exceeds 350°F (177°C).

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with stainless steel wire braid for durable commercial use.

Blue Antimicrobial PVC Coating

Blue PVC coating helps protect the hose, melts at 350°F (177°C), and will not hold a flame.

Street Elbow Included

Hose assembly includes a street elbow for installation support.

Retail Box Packaging

Ships packaged in a retail box for merchandising and storage.

Type Gas Connector Hose Assembly
Style Moveable Quick-Disconnect
Inside Diameter 1/2 Inch
Length 36 Inches
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 72,000 BTU/hr
Maximum Operating Pressure 1/2 psi
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 3.8 lb.

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 1/2" inside diameter and is 36" long.
Yes. It includes a SnapFast one-handed quick-disconnect and a Swivel MAX rotational fitting.
The quick-disconnect automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. Moveable gas equipment requires a restraining device to prevent strain on the connector.
It is for indoor use only, should not be used in temperatures below 32°F (0°C), and has a maximum operating pressure of 1/2 psi.
