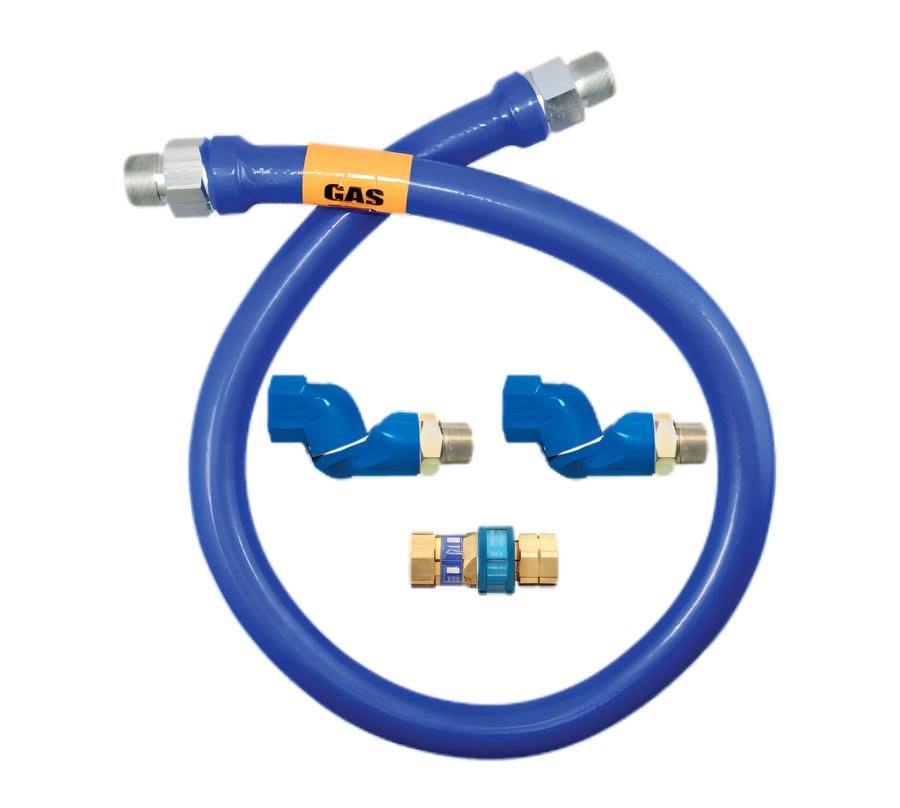

Dormont Blue Hose 1/2-Inch I.D. 60-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and SnapFast Quick-Disconnect

Stainless Steel Braid, Blue Antimicrobial PVC Coating, 54,000 BTU/hr Flow Capacity

Built for moveable commercial gas appliances, this 60-inch hose assembly combines quick-disconnect convenience with dual swivel flexibility to help reduce stress on the connector and improve serviceability.

  • 60-inch moveable gas connector hose assembly for commercial kitchen applications.
  • SnapFast one-handed quick-disconnect fitting supports faster appliance connection and removal.
  • Double Swivel MAX end fittings provide 360° movement and help reduce hose stress.
  • Stainless steel tube and braid with blue antimicrobial PVC coating for durable protection.
  • Rated for 54,000 BTU/hr minimum flow capacity at the 60-inch length.
  • Thermal shut-off design helps stop gas flow if internal temperatures exceed 350°F (177°C).

Product Weight:

3.93 lb

One-Handed Quick Disconnect

SnapFast fitting allows fast appliance disconnect with one hand.

Dual Swivel Rotation

Double Swivel MAX end fittings provide 360° multi-plane movement at both ends to reduce stress on the hose.

Thermal Shut-Off Protection

Automatically shuts off gas when internal temperatures exceed 350°F (177°C).

Stainless Steel Hose Construction

Uses annealed 304 stainless steel tubing with multi-strand stainless steel wire braid.

Blue Antimicrobial PVC Coating

Protective blue coating is antimicrobial, resists flame, and melts at 350°F (177°C).

High Flow Rating

The 1/2-inch I.D., 60-inch assembly is rated for 54,000 BTU/hr minimum flow capacity.

Safety Limitations

For indoor use only, not for temperatures below 32°F (0°C), and maximum operating pressure is 1/2 psi.

Carbon Steel End Fittings

End fittings are carbon steel with a zinc trivalent chromate finish for added durability.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel / Quick Disconnect
Inside Diameter 1/2 Inch
Length 60 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 54,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Weight 3.93 lb.

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This hose assembly includes the Dormont Blue Hose tubing, Double Swivel MAX fittings, and a SnapFast quick-disconnect. It does not include the restraining device or valve found in kit versions.
The 60-inch, 1/2-inch I.D. model is rated at 54,000 BTU/hr minimum flow capacity for natural gas flow rating conditions.
Yes. The SnapFast quick-disconnect includes a thermal shut-off that stops gas flow when internal temperature exceeds 350°F (177°C).
Yes. A restraining device is required for all moveable gas equipment.
No. It is for indoor use only and should not be used in temperatures below 32°F (0°C).
