Dormont Manufacturing

Dormont Blue Hose 24-Inch Moveable Gas Connector Hose Assembly, 1/2-Inch ID, Double Swivel MAX / SnapFast Quick-Disconnect

SKU: 1650BPQ2S24
GTIN: 662447021118
$311.04
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

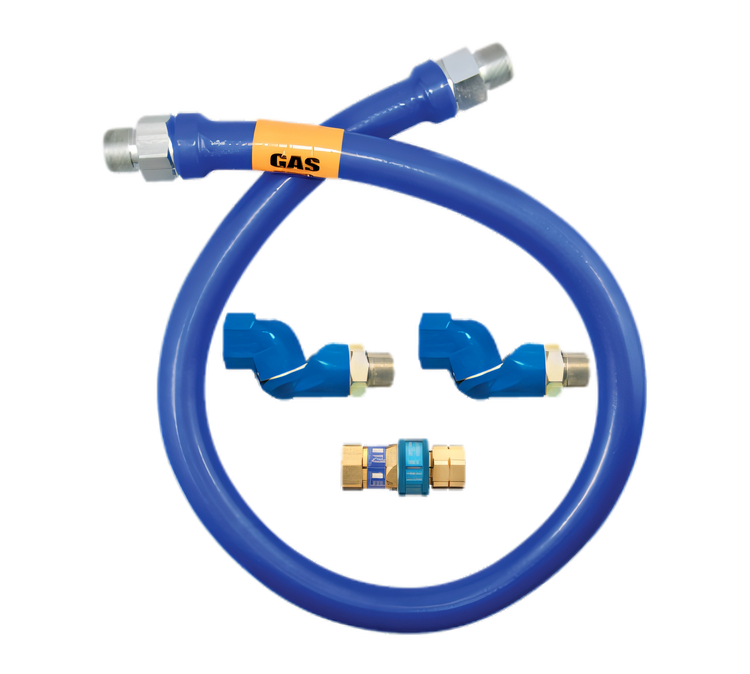

Dormont Blue Hose 24-Inch Moveable Gas Connector Hose Assembly, 1/2-Inch ID, Double Swivel MAX / SnapFast Quick-Disconnect

Stainless steel braid with blue antimicrobial PVC coating; 77,000 BTU/hr minimum flow capacity

Built for moveable commercial gas equipment, this 24-inch connector combines flexible 360° movement, quick-disconnect convenience, and thermal shut-off safety.

  • 24-inch moveable gas connector hose assembly with 1/2-inch inside diameter
  • Double Swivel MAX fittings provide 360° rotational movement at both ends to reduce stress and help position equipment closer to the wall
  • SnapFast one-handed quick-disconnect includes thermal shut-off when internal temperature exceeds 350°F
  • Annealed 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating
  • Rated for 77,000 BTU/hr minimum flow capacity in natural gas applications
  • Backed by a limited lifetime warranty for the life of the original appliance

Product Weight:

2.94 lb

360° Rotational End Fittings

Swivel MAX fittings at both ends help reduce stress on the connector and improve appliance positioning.

One-Handed Quick-Disconnect

SnapFast fitting allows quick disconnection with one hand for easier service and equipment movement.

Thermal Shut-Off Safety

Quick-disconnect fitting shuts off gas when internal temperature exceeds 350°F.

Stainless Steel Construction

Annealed 304 stainless steel tubing and stainless steel wire braid provide durable hose construction.

Blue Antimicrobial PVC Coating

Blue PVC coating adds antimicrobial protection and will not hold a flame.

Moveable Equipment Design

Designed for commercial moveable gas appliances and helps increase usable aisle space.

Type Moveable Gas Connector Hose Assembly
Style Double Swivel MAX / SnapFast
Length 24 Inches
Inside Diameter 1/2 Inch
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 77,000 BTU/hr
Gas Type Natural Gas
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for commercial moveable gas appliances and equipment.
The 1/2-inch by 24-inch size has a 77,000 BTU/hr minimum flow capacity in the natural gas table.
Yes. The SnapFast quick-disconnect shuts off gas when internal temperature exceeds 350°F.
No. The hose assembly includes the Blue Hose, Double Swivel MAX, and SnapFast components only. Restraining device and valve components are included in basic or deluxe kit versions.
It comes with a limited lifetime warranty for the life of the original appliance to which it is connected.
The document states it is for indoor use only and not for use in temperatures less than 32°F.
