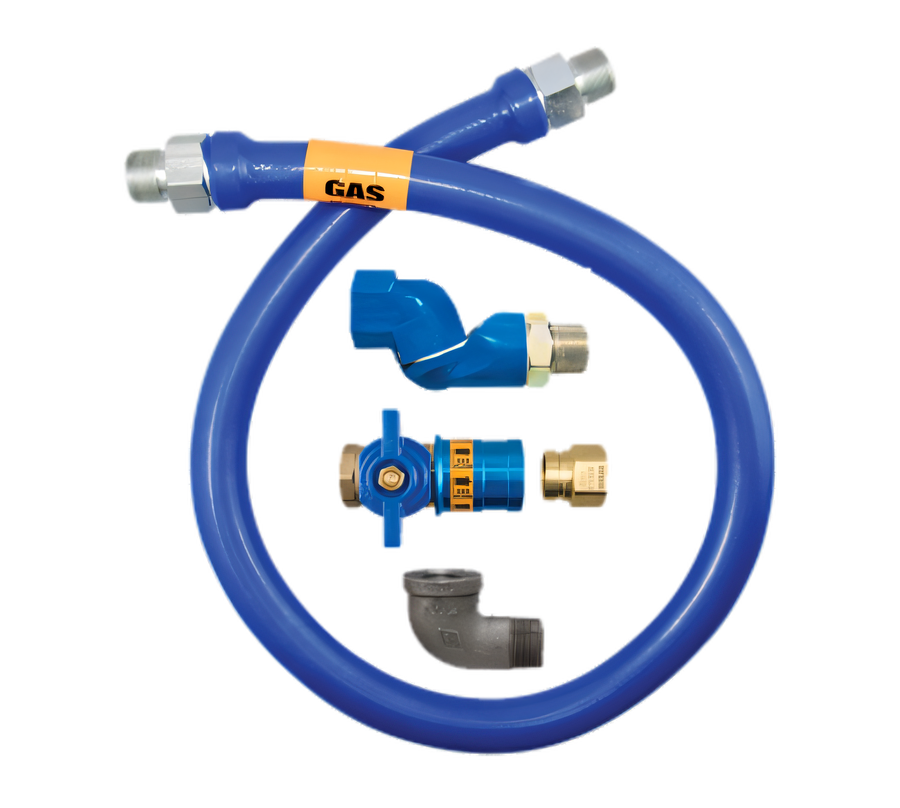

Dormont Blue Hose 1/2 Inch x 72 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and Safety Quik

Single Swivel, Blue Antimicrobial PVC Coating, 51,000 BTU/hr Minimum Flow Capacity

Give moveable commercial gas equipment a durable, stress-reducing connection with 360° swivel movement and an integrated safety shut-off valve.

  • 72-inch moveable gas connector hose assembly for commercial kitchen equipment.
  • 1/2-inch inside diameter with 51,000 BTU/hr minimum natural gas flow capacity.
  • Swivel MAX 360° rotational fitting helps reduce stress and lets equipment sit closer to the wall.
  • Safety Quik quick-disconnect valve adds one-handed disconnecting and thermal shutoff protection.
  • 304 stainless steel tubing and stainless braid are protected by a blue antimicrobial PVC coating.
  • Includes a street elbow; a restraining device is required for moveable gas equipment.
  • Limited lifetime warranty for the life of the original appliance.

Product Weight:

4.38 lb

Swivel MAX 360° Rotational Fitting

Multi-plane fitting provides full rotation to help reduce connector stress and improve kitchen aisle space.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a full-port brass ball valve and thermal shutoff protection.

304 Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist flame and melts at 350°F.

Stress Guard Rotation Technology

Rotational end fittings at both ends help reduce stress on the hose ends during movement.

Street Elbow Included

Assembly includes an elbow connection; the elbow component is malleable iron.

Designed for Moveable Equipment

Intended for gas utilization equipment mounted on casters or otherwise subject to movement.

Type Gas Connector Hose Assembly
Style Single Swivel
Inside Diameter 1/2 Inch
Length 72 Inches
BTU 51,000 BTU/hr
Gas Type Natural Gas
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
Maximum Operating Pressure 1/2 psi
Country of Origin USA
Shipping Weight 4.38 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The assembly includes the Dormont Blue Hose, Swivel MAX, Safety Quik quick-disconnect valve, and a street elbow.
The 72-inch, 1/2-inch assembly is rated for 51,000 BTU/hr minimum flow capacity on natural gas.
It prevents users from accidentally turning on the gas while the appliance is disconnected and includes thermal shutoff protection.
Yes. The document states a restraining device is required for all moveable gas equipment.
No. The document specifies indoor use only and says it is not for use in temperatures less than 32°F.
It carries a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
