Dormont Manufacturing

Dormont Blue Hose 1/2-Inch ID x 36-Inch Moveable Gas Connector Hose Assembly with Safety Quik QDV and 90° Street Elbow

SKU: 1650BPCF36BX
$231.71
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

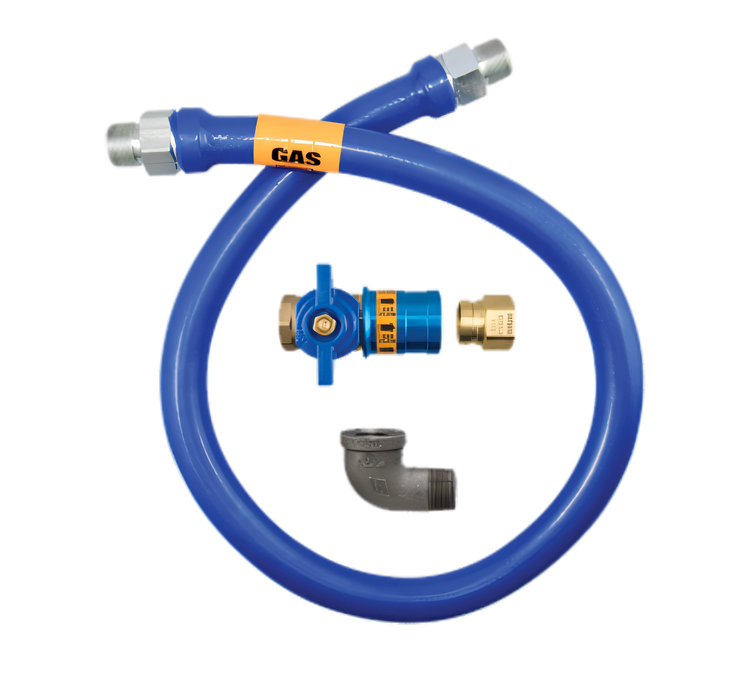

Dormont Blue Hose 1/2-Inch ID x 36-Inch Moveable Gas Connector Hose Assembly with Safety Quik QDV and 90° Street Elbow

Retail-boxed, blue antimicrobial PVC-coated stainless steel hose assembly

A safety-focused moveable gas connector assembly that combines stainless steel durability, antimicrobial blue coating, and a built-in quick-disconnect valve.

  • 1/2-inch inside diameter and 36-inch length for moveable commercial gas equipment.
  • Safety Quik quick-disconnect valve helps prevent gas flow when disconnected and disconnecting while gas is flowing.
  • 304 stainless steel tubing with stainless steel braid and blue antimicrobial PVC coating.
  • Stress Guard 360° rotational end fittings help reduce hose strain and wear.
  • Includes a 90° street elbow and is packaged in a retail box.
  • Limited lifetime gas connector warranty provides long-term value.

Product Weight:

4.58 lb

Safety Quik Quick-Disconnect Valve

Built-in safety valve combines one-handed quick-disconnect functionality with protection against accidental gas flow when the appliance is not connected.

Thermal Shut-Off

Shuts off gas flow within a temperature range of 250°F to 300°F.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing and multi-strand stainless steel wire braid provide durable hose construction.

Blue Antimicrobial PVC Coating

Blue PVC coating adds antimicrobial protection and will not hold a flame; it melts at 350°F.

Stress Guard Rotational End Fittings

360° rotational end fittings at both ends help reduce stress on the hose and connected equipment.

Included Street Elbow

Supplied with one 90° street elbow for installation convenience.

Indoor Commercial Use

Designed for indoor use on commercial moveable gas equipment, with a maximum operating pressure of 1/2 psi.

Type Gas Connector Hose Assembly
Style Quick-Disconnect
Gas Connection Size 1/2 Inch
Length 36 Inches
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coating
BTU 77,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This model has a 1/2-inch gas connection size and is 36 inches long.
It prevents users from turning on gas while the appliance is disconnected and prevents the hose from being disconnected while gas is flowing.
The hose uses annealed 304 stainless steel tubing, multi-strand stainless steel braid, and a blue antimicrobial PVC coating.
The assembly includes the Dormont Blue Hose, a Safety Quik QD valve, and one 90° street elbow.
Yes. The document states that it is for indoor use only and not for use in temperatures below 32°F (0°C).
The maximum operating pressure is 1/2 psi.
