Dormont Manufacturing

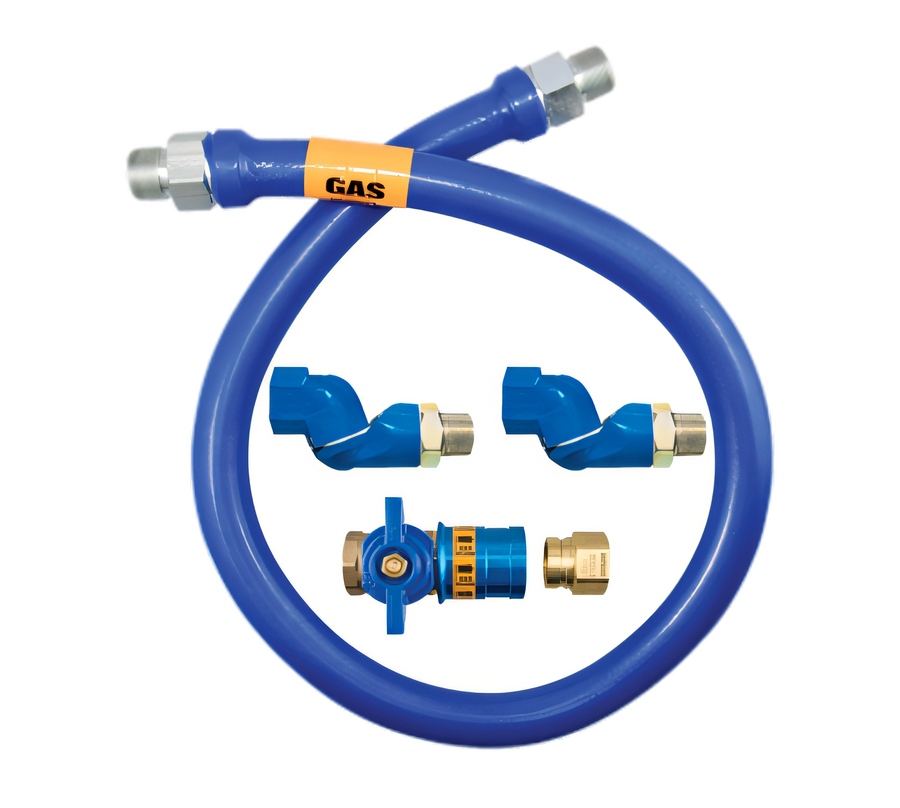

Dormont Blue Hose 1/2-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik Quick-Disconnect Valve

SKU: 1650BPCF2S72
GTIN: 662447054956
$456.20
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1/2-Inch I.D. x 72-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik Quick-Disconnect Valve

Blue Antimicrobial PVC-Coated Stainless Steel, 48,000 BTU/hr

Built for moveable commercial equipment, this hose assembly combines 360° swivel movement with a Safety Quik shutoff for safer, easier appliance positioning.

  • 1/2-inch I.D. x 72-inch moveable gas connector hose assembly for commercial equipment.
  • Double Swivel MAX fittings provide 360° rotational movement at both ends.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience and safety shutoff.
  • Stainless steel braid with blue antimicrobial PVC coating supports durable, high-visibility use.
  • Rated for 48,000 BTU/hr natural gas flow capacity.
  • Backed by a limited lifetime warranty for the original appliance connection.

Product Weight:

4.88 lb

Double Swivel MAX End Fittings

360° rotational fittings at both ends help reduce connector stress and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve provides one-handed disconnect convenience and safety shutoff protection.

Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable moveable-gas performance.

Blue Antimicrobial PVC Coating

Blue coating improves hose visibility and is designed to melt at 350°F without holding a flame.

48,000 BTU/hr Flow Capacity

The 1/2-inch I.D. x 72-inch assembly is rated at 48,000 BTU/hr based on the documented natural gas flow chart.

Moveable Equipment Use

Designed for use with moveable commercial gas equipment; a restraining device is required for caster-mounted applications.

Type Gas Connector Hose Assembly
Style Moveable
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
Inside Diameter 1/2 Inch
Length 72 Inches
BTU 48,000 BTU/hr
Country of Origin USA
Shipping Weight 4.88 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This hose assembly includes the Dormont Blue Hose, Double Swivel MAX, and Safety Quik quick-disconnect valve.
It has a 1/2-inch inside diameter and is 72 inches long.
The documented natural gas flow capacity for this size is 48,000 BTU/hr.
No. The hose assembly includes the hose, Double Swivel MAX, and Safety Quik components; the documentation states that a restraining device is required for moveable gas equipment and is included in the deluxe kit.
Safety Quik is a quick-disconnect valve with a safety shutoff that helps prevent gas flow when the appliance is disconnected.
Yes. The documentation states that it is for indoor use only.
