Dormont Manufacturing

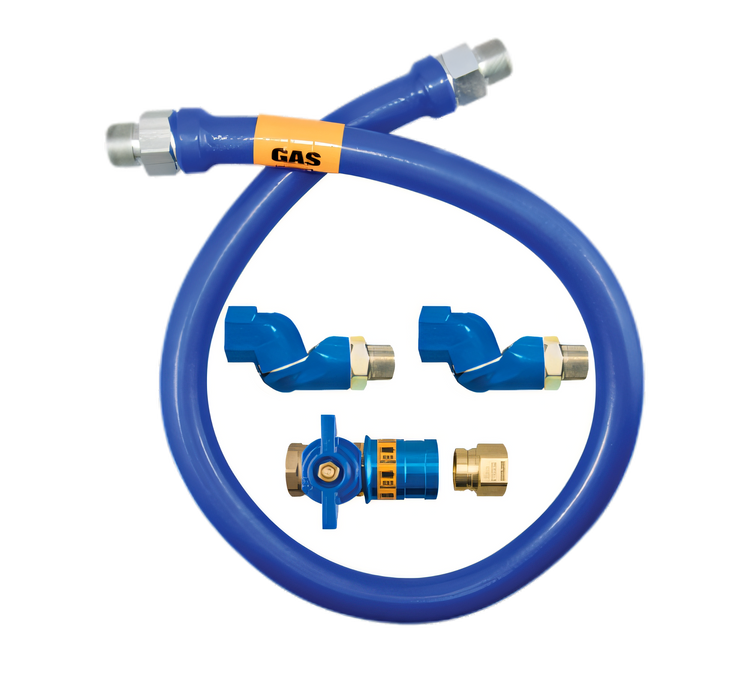

Dormont Blue Hose 1/2-Inch ID x 60-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik Quick-Disconnect Valve

SKU: 1650BPCF2S60
GTIN: 662447046265
$421.02
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1/2-Inch ID x 60-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik Quick-Disconnect Valve

Blue Antimicrobial PVC-Coated Stainless Steel, 54,000 BTU/hr Minimum Flow Capacity

Built for moveable commercial gas equipment, this hose assembly combines 360° swivel action, quick-disconnect safety, and durable stainless steel construction in one reliable connector.

  • 1/2-inch inside diameter x 60-inch length moveable gas connector hose assembly for commercial kitchen equipment.
  • Double Swivel MAX fittings provide 360° rotational movement to help reduce connector stress and improve equipment positioning.
  • Safety Quik quick-disconnect valve adds one-handed disconnect convenience with built-in thermal shutoff protection.
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating for durable, high-visibility performance.
  • Rated for 54,000 BTU/hr natural gas flow capacity at a 0.5-inch W.C. pressure drop.
  • Covered by a limited lifetime warranty.

Product Weight:

4.51 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel tubing provides a durable core for commercial gas connections.

Stainless Steel Wire Braid

Multi-strand stainless steel wire braid reinforces the hose while maintaining flexibility.

Blue Antimicrobial PVC Coating

Protective blue outer coating resists flames and melts at 350°F.

Double Swivel MAX End Fittings

360° rotational end fittings at both ends help reduce stress and allow appliances to be positioned closer to the wall.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect quick-disconnect valve with a brass body and full-port brass ball valve.

Thermal Shutoff Protection

Safety valve shuts off gas flow within a 250°F to 300°F temperature range.

Moveable Equipment Design

Designed for moveable commercial gas equipment; a restraining device is required for installation.

54,000 BTU/hr Flow Capacity

The 1/2-inch ID x 60-inch configuration is rated at 54,000 BTU/hr at a 0.5-inch W.C. pressure drop.

Type Gas Connector Hose Assembly
Style Moveable
Length 60 Inches
Inside Diameter 1/2 Inch
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC Coated
BTU 54,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This SKU has a 1/2-inch inside diameter and is 60 inches long.
The 1/2-inch ID x 60-inch configuration is rated at 54,000 BTU/hr at a 0.5-inch W.C. pressure drop.
It includes a Safety Quik quick-disconnect valve with thermal shutoff protection and Double Swivel MAX 360° end fittings.
It uses annealed 304 stainless steel tubing, multi-strand stainless steel wire braid, and a blue antimicrobial PVC coating.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
Yes. The documentation states it is for indoor use only and should not be used in temperatures below 32°F.
