Dormont Manufacturing

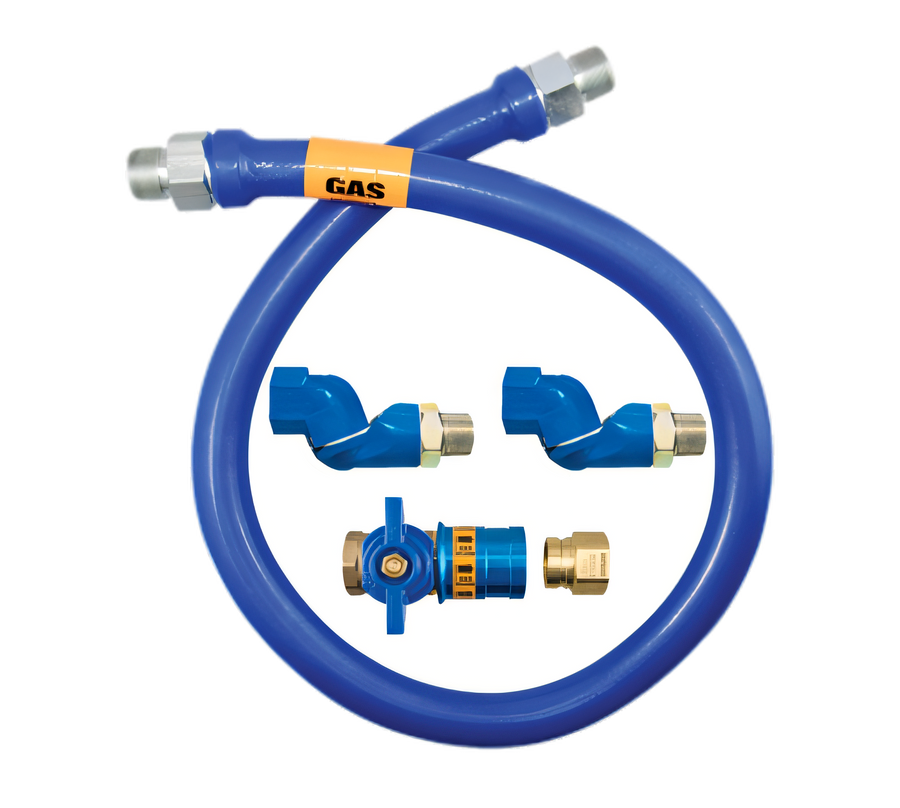

Dormont Blue Hose 1/2-Inch ID x 48-Inch Moveable Gas Connector Hose Assembly

SKU: 1650BPCF2S48
GTIN: 662447050255
$392.18
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 1/2-Inch ID x 48-Inch Moveable Gas Connector Hose Assembly

Safety Quik Quick-Disconnect Valve, Double Swivel MAX, 60,000 BTU/hr

Built for moveable commercial equipment, this hose assembly combines quick-disconnect safety with 360° swivel action to improve flexibility and help protect against gas flow when disconnected.

  • 1/2-inch inside diameter and 48-inch length for moveable gas appliance connections.
  • Safety Quik quick-disconnect valve helps prevent accidental gas flow when the appliance is disconnected.
  • Double Swivel MAX fittings provide 360° rotation at both ends to reduce connector stress and improve positioning.
  • 304 stainless steel tubing and stainless steel braid are protected by a blue antimicrobial PVC coating.
  • Rated at 60,000 BTU/hr minimum natural gas flow capacity.
  • Indoor use only; a restraining device is required for moveable gas equipment.

Product Weight:

4.28 lb

Factory-Built Quick-Disconnect Assembly

Includes 1 Safety Quik quick-disconnect valve and 2 Swivel MAX fittings for fast hookup and flexible appliance movement.

Safety Quik Quick-Disconnect Valve

Flat-face, push-to-connect brass valve with a full-port ball valve and thermal shutoff that closes gas flow at 250°F to 300°F.

Double Swivel MAX Rotation

360° rotational end fittings at both ends help reduce stress on the connector and allow appliances to sit closer to the wall.

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid provides flexibility and durability.

Blue Antimicrobial PVC Coating

Blue antimicrobial PVC coating adds visibility and will not hold a flame; it melts at 350°F.

60,000 BTU/hr Natural Gas Capacity

The 1/2-inch I.D. hose is rated for 60,000 BTU/hr minimum flow capacity for natural gas applications.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Gas Connector Hose Assembly
Style Moveable
Gas Type Natural Gas
BTU 60,000 BTU/hr
Length 48 Inches
Inside Diameter 1/2 Inch
Material 304 Stainless Steel
Color Blue
Finish Antimicrobial PVC
Shipping Weight 4.28 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This hose assembly includes the Dormont Blue Hose, Double Swivel MAX fittings, and a Safety Quik quick-disconnect valve.
It has a 1/2-inch inside diameter and is 48 inches long.
It provides quick-disconnect functionality and a thermal shutoff that closes gas flow within the 250°F to 300°F range.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
No. The documentation states that it is for indoor use only and not for use in temperatures less than 32°F (0°C).
