Dormont Blue Hose 1/2-Inch x 36-Inch Moveable Gas Connector Hose Assembly with Double Swivel MAX and Safety Quik

304 Stainless Steel Braid, Blue Antimicrobial PVC Coating, 69,000 BTU/hr Natural Gas Capacity

Built for commercial kitchens, this 36-inch moveable gas connector combines 360° swivel movement and quick-disconnect safety to help protect equipment, staff, and workflow.

  • 36-inch moveable gas connector hose assembly for commercial appliances.
  • 1/2-inch I.D. with 69,000 BTU/hr natural gas flow capacity.
  • Double Swivel MAX fittings provide 360° movement and help reduce connector stress.
  • Safety Quik quick-disconnect valve adds one-handed disconnect and thermal shutoff protection.
  • 304 stainless steel tubing and braid with a blue antimicrobial PVC coating.
  • Limited lifetime warranty for the life of the original appliance.

Product Weight:

3.62 lb

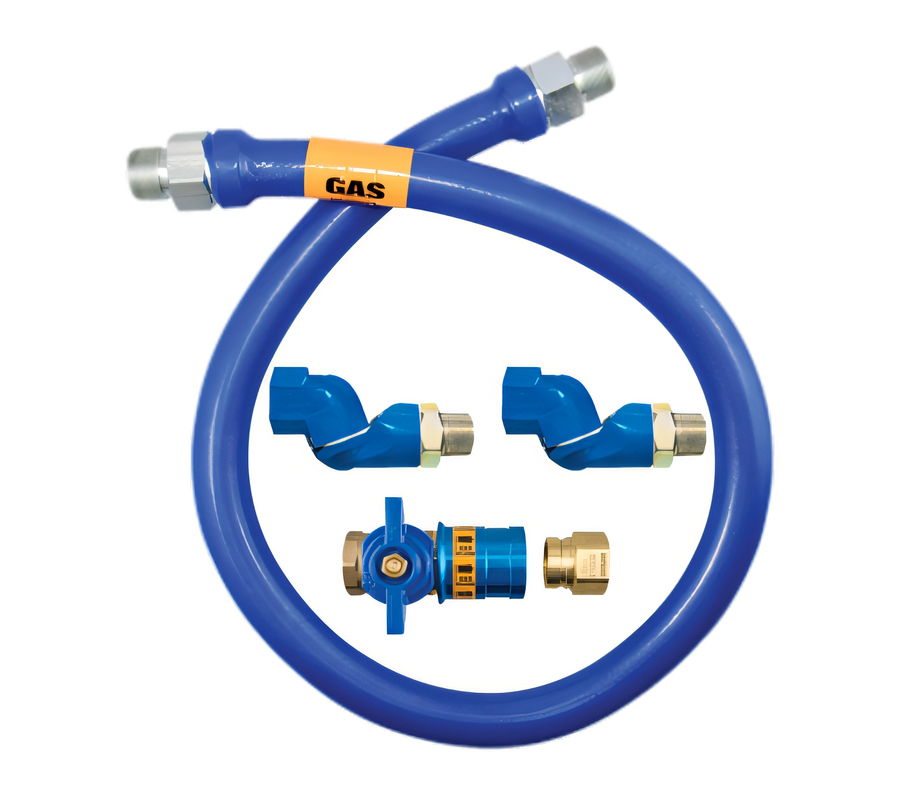

Complete Hose Assembly

Includes the Blue Hose, Double Swivel MAX fittings, and Safety Quik quick-disconnect valve.

360° Swivel Movement

Rotational end fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Safety Quick-Disconnect Valve

Flat-face, push-to-connect valve with a brass body for fast disconnection and improved safety.

Thermal Shut-Off Protection

Shuts off gas flow within the 250°F to 300°F range.

Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability.

Blue Antimicrobial PVC Coating

Blue coating helps protect the hose, is antimicrobial, and will not hold a flame.

Moveable Equipment Application

Designed for commercial moveable gas equipment; a restraining device is required for caster-mounted applications.

Type Gas Hose Assembly
Style Double Swivel Quick-Disconnect
Inside Diameter 1/2 Inch
Length 36 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
Color Blue
BTU 69,000 BTU/hr
Gas Type Natural Gas
Shipping Weight 3.62 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The 1/2-inch I.D., 36-inch model is rated at 69,000 BTU/hr for natural gas at a 0.5 inch W.C. pressure drop.
Yes. It includes a Safety Quik quick-disconnect valve with a flat-face, push-to-connect design.
It uses annealed 304 stainless steel tubing with multi-strand stainless steel braid and a blue antimicrobial PVC coating.
Yes. The documentation states that a restraining device is required for all moveable gas equipment. Deluxe kits include the restraining device.
No. The documentation says it is for indoor use only and not for temperatures below 32°F (0°C).
The same hose assembly is offered in 24, 48, 60, and 72-inch lengths, and in 3/4-inch and 1-inch inside diameter versions.
